0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate

  • 0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate
  • 0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate
  • 0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification CE
Model Number RL-1530
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details wooden package
Delivery Time 15-30 working days
Payment Terms T/T, MoneyGram, L/C
Supply Ability 10 Unit per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1500W Fiber Laser Cutting Machine Used In Mild Steel Plate / Iron Plate Laser Type Fiber Laser
Laser Power 1500W Working Size 3000*1500mm
Warranty 12 Months Weight 3000 Kg
Package Wooden Case Control Software Cypcut
CNC Or Not YES Applicable Material Metal Materials
High Light

1500W Industrial Laser Cutting Machine

,

0.05mm Industrial Laser Cutting Machine

,

0.05mm Steel Plate Cutting Machine
Leave a Message
Product Description

0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate



Introduction of RL-1530

■ Tube welding.

■ Total machine weight 3.5 tons.

■ Italian COLGAR machine milling boring.

■ Machine error accuracy 0.05mm.

■ With 24 hours quenching process.

￭ Support max moving speed 70m/min.

0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate 0



Main Features

1.Compared with the traditional design, RL-1530 has the same working area and saves space.
2.Riselaser's exclusive NEW design, equipped with short-range exchange platform. Faster, energy-saving, durable and reliable.
3.The laser power can be customized according to the material and its thickness.

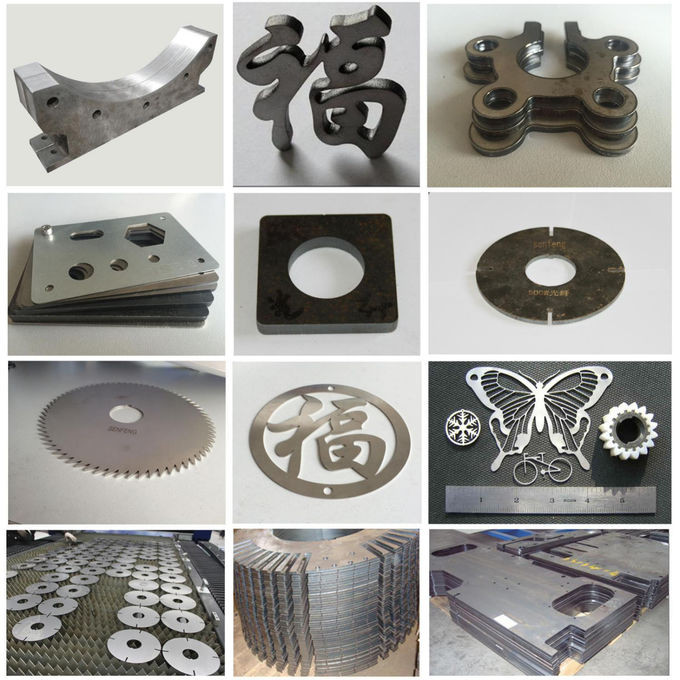

4.The cutting of special-shaped parts is no problem.



Technical Parameters
Model RL1530
Laser Wavelength 1070 nm
Power 1500W
Beam Quality ＜0.373mrad
Max cutting thickness 15mm carbon steel
Working area 2500mm×1300mm
Positioning Accuracy ≤±0.05 ㎜/m
Repeatition Accuracy ≤±0.05 ㎜/m
Power Supply Three-phase four-wire AC 380V/50Hz,50Hz±1%,60A
Pulse frequency 1-500HZ Continuously adjustable
Energy instability ≤2%
Minimum cutting line width 0.1mm(Material below 0.4mm)
Maximum idling speed 50m/min
Maximum acceleration 1G
Maximum cutting speed 20m/min(Depends on different materials)
Continuous working time ≥20H
Mechanical accuracy of worktable ±0.03mm
Software The software has the function of selecting segments
Equipment weight (estimated value) 3500KG
Power consumption 13 kW



Main parts

Motor Guide Rack Cutting head Chiller Software Laser Source
Yaskawa PMI DIN-6 TONY S&A Cypcut MAX





0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate 1

0.05mm 1500W Industrial Laser Cutting Machine For Steel Plate 2



After-sales Service

Warranty: 1 year for the whole machine, but lens/mirror/nozzle without warranty.

Certificate support: CE

Manuals and CD along with machine,

After-sales department with English speakers supports customer on-line.





We are looking forward to serve you and please don not hesitate to contact us for more information.
