Space Saving Sheet Metal Laser Cutting Machine 380v 1080nm With Light Path System

Place of Origin Shenzhen
Brand Name Riselaser
Certification ISO9001:2008
Model Number RL-H3015E
Minimum Order Quantity 1
Price negotiation
Packaging Details Wooden case
Delivery Time 7-15 days
Supply Ability 1 units/ month
Product Details
Product Name Metal Sheet Laser Cutter Laser Power 1000w 1500w
Laser Wavelength 1080nm Working Area 3000*1500mm
Cutting Thickness 0-16MM (depends On Laser Power) Power Supply 380v
Warranty 1 Year
High Light

industrial cnc laser cutting machine

,

laser plate cutting machine

Leave a Message
Product Description



Sheet Metal Laser Cutting Machine Fiber Laser Cutting Machine Price



Product Description of Metal Sheet Laser Cutter:

1. Integrated machine design: left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stability and reliability of light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese guide and ball screw.



Main Features of Sheet Metal Laser Cutting Machine :

1. Easy operations: fiber line transmission, no adjustment of optical path;
2. Fast cutting speed: Cutting speed is more than 20m/min.
3. Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has 3 times photoelectric conversion efficiency
5. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
6. Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
7. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;



Technical Specifications:

Model RL-1530F
Laser wavelength 1080nm
Cutting thickness 0.2-16mm
Laser output power 1000W
Maximum processing range 3000 *1500mm
Machine drive mode imported rack gear and pinon drive
Y X. axis positioning accuracy ±0.01mm
X.Y axis repeat positioning accuracy ±0.01mm
Power supply mode 380V / 50Hz
Maximum cutting speed 45m/min
Minimum cutting line width 0.02mm
Cooling mode 3P Water cooling





Sheet Metal Laser Cutting Machine Application:

Application materials: mainly non-contact cutting metal materials, carbon steel, stainless steel, aluminum, titanium, galvanized plate, galvanized plate, silicon steel, pickling board and other fragile alloys.
Applications industry: household appliances, sheet metal processing, precision metal parts (aerospace), electronic appliances, subway parts, auto machinery, metallurgical equipment, gifts, tools, processing, advertising decoration and other industries.

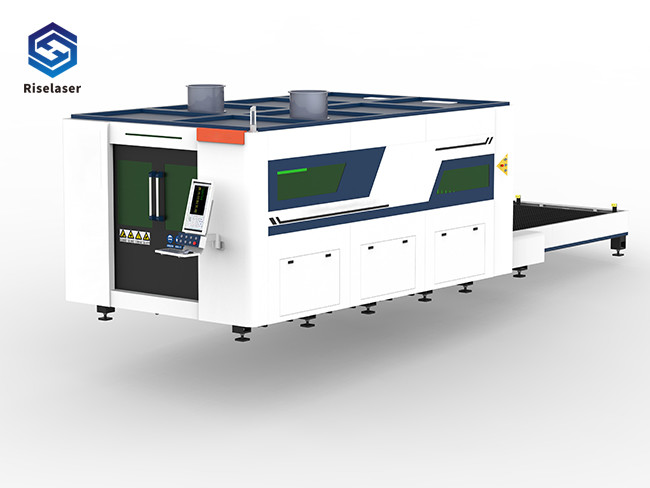

Space Saving Sheet Metal Laser Cutting Machine 380v 1080nm With Light Path System 0





Laser Cutting Machine Details:

  Space Saving Sheet Metal Laser Cutting Machine 380v 1080nm With Light Path System 1

Space Saving Sheet Metal Laser Cutting Machine 380v 1080nm With Light Path System 2

Space Saving Sheet Metal Laser Cutting Machine 380v 1080nm With Light Path System 3
