20W Handheld Metal Laser Marking Machine 1064nm Wavelength Air Cooling System

Place of Origin SHENZHEN
Brand Name Riselaser
Certification ISO9001:2008
Model Number RL-20PS
Minimum Order Quantity 1
Price negotiation
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms Western Union, T/T, D/A

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Handheld Fiber Laser Marking Machine Laser Power 20w /30w
Working Area 100x100mm Laser Wavelength 1064nm
Max Speed ≤7000mm / S Cooling System Air Cooling
Warranty 1 Year Package Wooden Case
High Light

fiber laser etching machine

,

fiber laser engraving machine

Leave a Message
Product Description

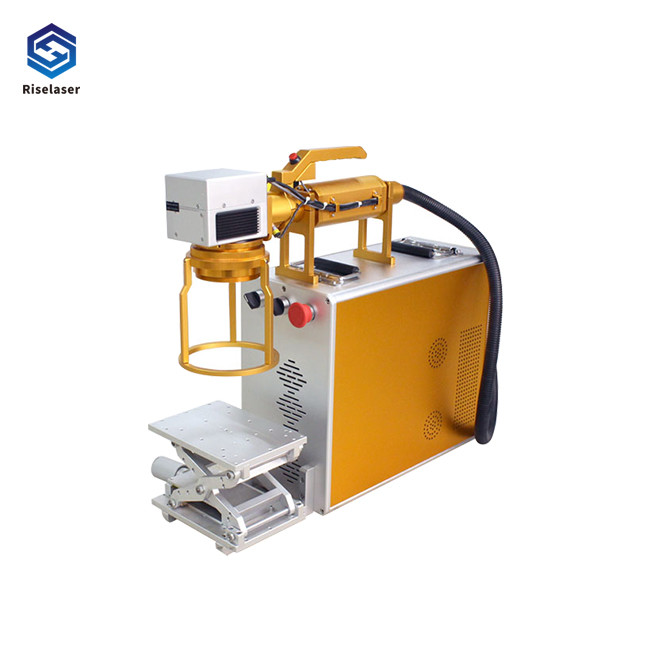

Handheld Metal Laser Printing Machine 20W 30W Portable Fiber Laser Marking Machine

Product Description:
Desktop portable design, can not only be fixed for the desktop marking, but also removable for hand held marking.It`s small,light, convenient to carry, and the marking speed is twice than the same type of laser.It adopts imported laser, so the core component life can reach more than 100,000 hours, also no subsequent consumables.



Main Features of Handheld Fiber laser marking machine:
1. The whole machine is light weight, small size, easy to carry. The galvanometer can be rotated to 90 degrees according to the requirements of side marking, suitable for pipeline work.
2. Desktop and portable dual-use design, you can not only finish desktop fiber marking by a fixed bracket ,but also complete the hand-held marking by removable hand.
3. Comes with fixed auto-focus bracket ,easy to use, save time and labor.
4. Laser in the fiber wave by the increase in oscillation, good stability, free from external dust and mechanical loosening of the impact of the output of the laser beam stability.
5. Maintenance-free operation, the laser without any maintenance, do not have to adjust or clean the lens, no supplies.
6. the processing speed is fast, and the processing speed is 2-3 times of the traditional laser marking machine.
7. excellent Spot quality, high peak power, in the same material, the marking effect is best
8. Wear automatic lift platform, integrated air-cooled system, integrated design,with the beautiful appearance.

Technical Parameters

Type Fiber Laser Marking Machines
Model Number RL-20PS
Table size 320*200mm
Weight 30KG
Material Aluminum
Laser wavelength 1060nm
Laser power 10W or 20W or 30W optional
Laser Type pulsed or continuous
Marking depth ≤0. 5mm as the material may
Marking line speed ≤7000mm / s
Minimum characters 0.15mm
The minimum line width 0.012mm
Repeatability ±0.002
Repeatability Standard 100mmX100mm
Operating Life laser Run> 100,000 hours

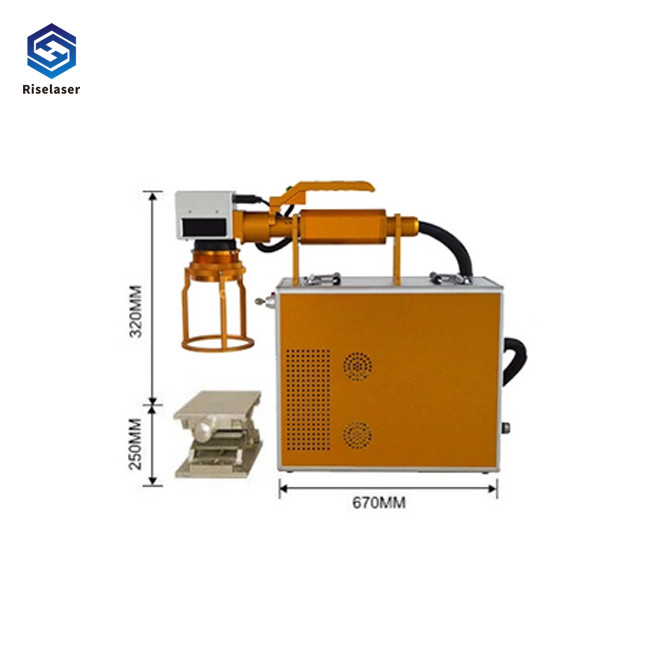

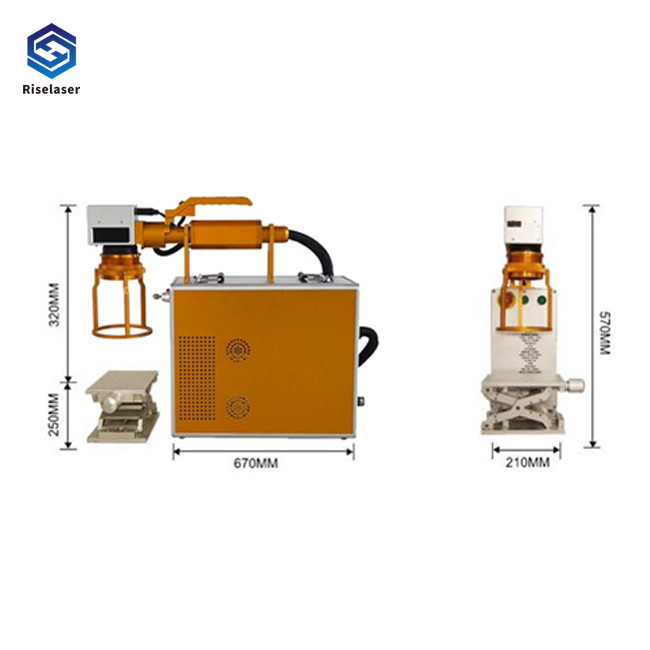

Dimensions 450 mm X 540 mm X 800 mm Weight 45 kg
Work table 320 mm X 200 mm bearing 30 kg
Lifting heigh lifting 550
Cooling system Air cooling
Operating System WinXP / Win7
Graphic Converter CAD, CorelDRAW, CAXA
Environment -20 ° C-45 ° C, relative humidity 80%


Machine Accessories:
20W Handheld Metal Laser Marking Machine 1064nm Wavelength Air Cooling System 0


Applicable industry:
Rise Laser Fiber laser marking machine can mark on metal and a variety of non-metallic materials, especially suitable for some occasions of detailed requirements and high precision. It is used in electronic components, hardware tools, accessories, integrated circuit (IC), electrical appliances, mobile communications, precision instruments, spectacles and clocks, jewelry, auto parts, plastic buttons, construction material, PVC pipe, medical equipment and other industries.

Applicable material:
Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface
treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin
(electronic components, packaging, insulation layer).etc.
20W Handheld Metal Laser Marking Machine 1064nm Wavelength Air Cooling System 1
