AC 380V Cnc Metal Cutting Laser Machine 2000W/3000W With Cypcut Control System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RL-3015-2000 | Laser Power | 2000W |
---|---|---|---|
Laser Source | Max/Raycus/Ipg | Maximum Processing Size | 3000*1500mm |
Maximum Operating Speed | 800mm/s | Control System | Cypcut |
Material Cutting Thickness | 0.2-30mm | Electric Power Supply | AC380V 50Hz/5KW |
Positioning Accuracy | ±0.05mm/500mm | HS Code | 8456110090 |
Transport Package | Wooden Carton | Weight | 1100KG |
Repeat Position Accuracy | ±0.05mm/500mm | Laser Type | Fiber Laser |
Highlight | metal cutting laser cutter,stainless steel laser cutting machine |
2000W / 3000W High Precision Fiber Laser Cutting Machine with Best Quality
Features of 2000W Fiber Metal Laser Cutting Machine:
- Stability and reliability of light path system and control system.Stable running: adopt top world import Fiber lasers, stable performance, key parts can reach 100,000 hours.
- Very low cost, every hour only consumed 0.5W to 1.5W electricity, cutting all kinds of sheet metal by air.
- Imported original fiber lasers,high and stable function,lifespan is over 100000 hours.
- Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge.
- Imported servo motor and gearing system to guarantee precise cutting.
- German high performance reducer,gear and rack;Japanese guide and ball screw.
- Dedicated software enables graphic or text to instantly designed or processed. Flexible and easy operation.
Model | RL-3015-2000 |
Laser Power | 2000W/3000/4000W/6000W |
Laser Source | MAX/Raycus/IPG |
Laser Type | Fiber Laser |
Laser wavelength | 1064nm |
Laser Beam Quality | <0.373mrad |
Working Table | Sawtooth |
Fiber Laser cutting head | Raytool |
Focus lens | Raytool |
Motor&Drivers | Yaskawa servo motor made in Japan |
Reducer | France motovario |
Guide Rails | High accuracy from Germany |
Transmit system | Dual Rack & Pinion type |
Rack system | Atlanta rack made in Germany |
Control system | Professional laser control system-Cycut |
Auxiliary Gas for cutting | Oxygen.Nitrogen |
Compatible software | Autocad.Coreldraw.etc |
Machine weight | 8000KG |
Warranty time | Whole machine for 3 years |
Remark | Automatic exchange worktable , cover(option) |

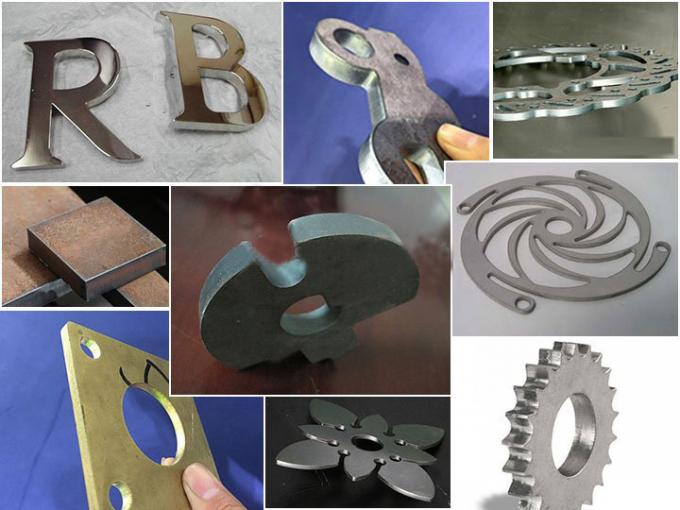

Applications of 2000W Fiber Metal Laser Cutting Machine:
Applicable materials: thin sheet metal, a variety of high quality 0.5 -3mm carbon steel sheet cutting, stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal materials.
Applicable industries: Kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and other metal processing.
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the Spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials, also avoiding Waterproof and rust proof.
3. The outmost is wooden case with fixed formwork.
4. The bottom of the wooden case has firm iron jack, convenient to Handling and transport.
Pre-sale service :
1.Free sample cutting
For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting, or send sample to you check cutting quality.
2.Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale service:
1.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype, whatsapp, etc for fast solution. We can offer technician go to customer's site for oversea service, customer shall cover visa, ticket, local living cost.
2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.
