Smallest Metal 3D Printer Fast Turn Over With High - Accuracy Galvo Scanning System

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO9001:2008, CE, FDA
Model Number RL-M50
Minimum Order Quantity 1 SET
Price USD
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms Western Union, MoneyGram, T/T
Supply Ability 2000 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name World Smallest Metal 3D Printer For Different Kinds Of Metal Material Laser Power 70W 200W 500W (Optional)
Building Volume 50*50mm Precision Optics High-accuracy Galvo Scanning System
Scanning Speed Up To 7m/s Layer Thickness 0.02mm-0.1mm
Power Delivery One Way - Double Powder Tanks
High Light

metal 3d printer

,

metal printing machine

Leave a Message
Product Description



World Smallest Metal 3D Printer for Different Kinds of Metal Material




Product                                                            RL-M50


Laser type                                                       70 W Yb-fibre laser(or 200w)

Precision optics                                               high-accuracy galvo scanning system

Scanning Speed                                              Up to 7m/s

Building volume                                               50mm*50mm*50mm

Layer Thickness                                              0.02mm-0.1mm

Powder Delivery                                              One Way- Double Powder Tanks

Material                                                           Stainless steel 316l alloy, Cobalt Chrome alloy, Ti64                                                                                       alloy,High temperature alloy and precious metal etc.

Operating System                                            64 bit Windows 7

System Control Software                                  Riselaser self-developed control system

Data File Format                                              STL or Other convertible format

Power supply and consumption                        220V 50/60Hz 16A 1ph (single phase)

Dimensions                                                       616mm*810mm*1750mm

Working environment Temperature                  15-26






Features
Precision: 20 μ focus diameter to achieve higher accuracy;
Delicate: 300 g powder starting-up with cost efficiency ;
Flexible: fast turn over, changing powder with 100% pollution-free.
Innovation: Gas shield protection system;
Application: Dental, jewelry, Academic and college training, Materials experiment and development.

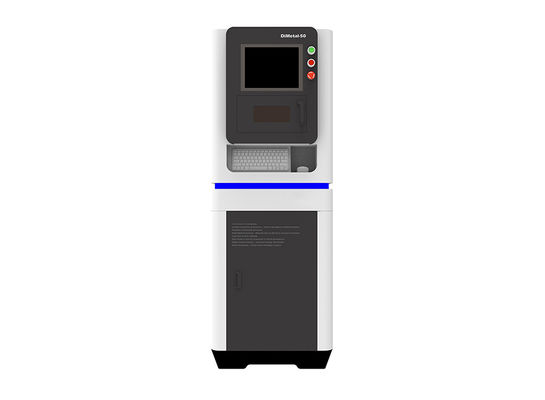

Smallest Metal 3D Printer Fast Turn Over With High - Accuracy Galvo Scanning System 0
Smallest Metal 3D Printer Fast Turn Over With High - Accuracy Galvo Scanning System 1
Smallest Metal 3D Printer Fast Turn Over With High - Accuracy Galvo Scanning System 2
