1000w 1500w Laser Metal Cutting Machine For Mild Steel , 45m/Min Cutting Speed
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Fiber Laser Cutting Machine||Laser Power||1000w 1500w|
|Laser Wavelength||1080nm||Working Area||3000*1500mm|
|Cutting Thickness||0-16MM (depends On Laser Power)||Power Supply||380v|
|Warranty||1 Year||Laser Type||Fiber Laser|
laser plate cutting machine,
fiber laser cutting equipment

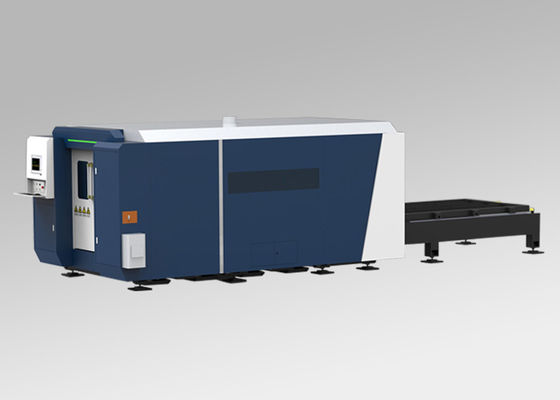

1000w 1500w Metal Fiber Laser Cutting Machine for Mild Steel , Stainless Steel
Product Description of Metal Sheet Laser Cutting Machine:
The machine adopt imported MAX Fiber laser source (500W-6KW),dual driving ball screw moving system, fixed light-route with gantry style design, close-loop control with linear scale to make the cutting quality be perfectly match with the design.
It very suits for fast and precision cutting on stainless steel and mild steel., even radian and sharp corner can be perfectly cut.
Metal Sheet Laser Cutting Machine Advantages:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
|Laser output power||1000W|
|Maximum processing range||3000 *1500mm|
|Machine drive mode||imported rack gear and pinon drive|
|Y X. axis positioning accuracy||±0.01mm|
|X.Y axis repeat positioning accuracy||±0.01mm|
|Power supply mode||380V / 50Hz|
|Maximum cutting speed||45m/min|
|Minimum cutting line width||0.02mm|
|Cooling mode||3P Water cooling|
It can be used for cutting various kinds of metal plates and tubes, mainly for stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy plates and rare metals.
widely used in machinery manufacturing,steel structural,mining machinery,metal cabinets manufacturing,ventilation and refrigeration and elevator manufacturing,lighting advertising and sign-making,auto parts,etc
