CNC Metal Industrial Laser Cutting Machine 380V / 50Hz 1kw 1.5kw Laser Source

CNC Metal Industrial Fiber Laser Cutting Machine With 1kw 1.5kw Laser Source

<sup>Product Description of Metal Sheet Laser Cutter:

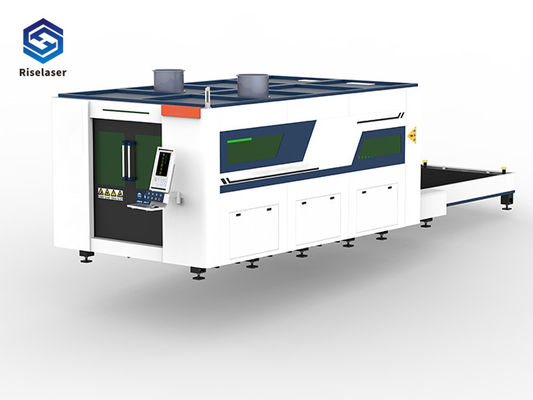

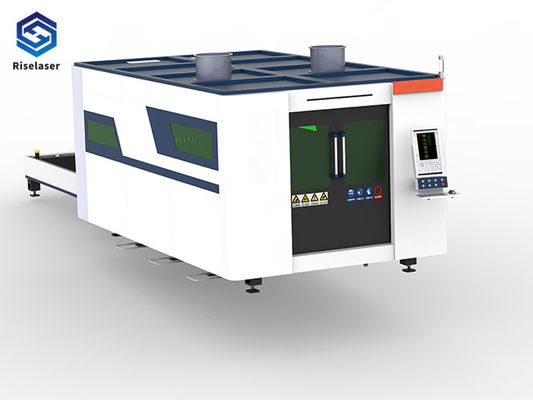

1. Full protective enclosure design provides safety protection from unseen laser radiation and mechanical movement
2. Pallet working table saves feeding time
3. Drawer style tray makes easy collecting and cleaning for the scraps and small parts
4. Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration
5. The world’s leading fiber laser resonator and electronic components to ensure machine superior stability

Metal Sheet Laser Cutter Advantages:
The whole fiber laser cutting machine for metal consist of machine This system consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Technical Specifications:</sup>




^{Laser Cutting Machines Details:}

Controller-Cypcut Numerical control system consists of PC control system, drive and servo motor and other major components Fiber laser cutting machine adopts CNC system,Represents the most professional laser machining CNC system. Cypcut With its good cost performance meets the requirements of customers for high performance cnc system.Support AI,DXF,PLT,etc .Gerbergraphics data format,accept Mater Cam,Type3,Words such as the international standard G code generated by the software.

Fiber Laser Source Brand: Maxphotonics Original:China Excellent reliability Excellent single mode beam quality Negligible beam pointing Stable beam quality in full power range Direct modulation in kHz range Very low cost

Cutting head using RAYTOOLS Swiss brand Fiber laser cutting dedicated cutting head to ensure high accuracy and efficiency for cutting. The cutting head is equipped with a non-contact capacitive sensing device. Can be achieved very stable Z-axis automatic tracking function, eliminating the influence of cutting due to asperous plate, and then improve the qualification rate of products. Laser cutting machine is equipped with focus lens , to meet the customers needs of cutting plate. Lens replacement using drawer type, the entire replacement process very convenient and fast. Optical system has the advantages of high efficiency, stability, calibration, maintenance and so on, the entire optical system is protected by clean positive air to ensure that the optical lens and nozzles are not contaminated.


^{Application Industry:
Applied to the sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automotive, food machinery, textile machinery,engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, gifts, tooling, decoration, advertising , metal external processing,processing, and other kitchenware manufacturing and processing industries.

Application Materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, galvanized steel sheet, and many kinds of metal materials cutting and so on}.
