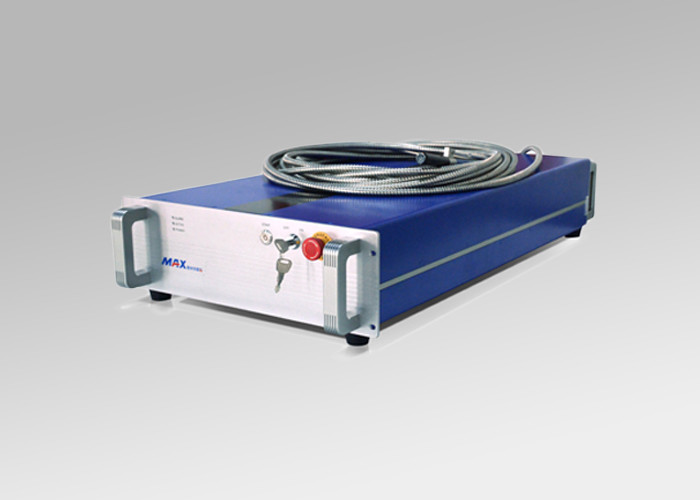

500W Fiber Laser Power Source , Fiber Optic Light Source Water Cooling

  • 500W Fiber Laser Power Source , Fiber Optic Light Source Water Cooling
Place of Origin SHENZHEN
Brand Name Maxphotonics
Certification ISO9001:2008
Model Number MFSC-500
Minimum Order Quantity 1 PCS
Price Negotiation
Packaging Details wooden case
Delivery Time 15 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Source Laser Type Fiber Laser
Laser Power 500W Wave Length 1080nm
Fiber Length 15m Package Wooden Crate
Condition New Application Metal Material
Control Card Cypcut Operation Voltage 220V
Highlight

fiber laser generator

,

fiber laser module
Leave a Message
Product Description



500W Fiber Laser Source Used to Assemble Fiber Laser Cutting Machine on Metal Material



Brief introduction:
MFSC (single-mode continuous) series laser is a new-generation semiconductor pump single-mode continuous ytterbium-doped fiber laser system featuring high power, perfect light quality and high electro-optical conversion efficiency, and can realize optical fiber transmission. This kind of laser system has extraordinary high reliability to other solid lasers and gas lasers.
Advantages: Wide-range operating wavelength for selection, extremely low signal-to-noise ratio, extremely high stability and super-long pumping source lifetime, thus becoming the ideal light source in many application fields.

Main Features:
Wavelength range:1070~1090nm(100~1000w) / 1064±4nm(5~50w)
Beam quality TEM00 :(M2<1.4)(100~1000w) / (M2<1.2)(5~50w)
Forced air/Water cooling
More than 100000 hours work-life of pumped diode
Free maintenance
Transmission by Single-mode optical fiber

Technical Parameters:

Parameters Unit Data Data Data Data Data Data
Type   MFSC-200 MFSC-300 MFSC-500 MFSC-800 MFSC-1000 MFSC-1500
Mode Of Operation   cw cw cw cw cw cw
Polarization   Random Random Random Random Random Random
Central Emission Wavelength nm 1080±4 1080±4 1080±4 1080±4 1080±4 1080±4
Nominal Output Power W 200 300 500 800 1000 1500
Output Power Tunability % 10~100 10~100 10~100 10~100 10~100 10~100
Output Power Stability (t>5h) % ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
Output Fiber Length m 5~20 5~20 5~20 5~20 5~20 5~20
Operation Voltage(DC) V 220VAC 220VAC 220VAC 220VAC 220VAC 380VAC
Power Consumption (at 20°C) kW <1.5 <2 <3 <4 <5 <6
Weight kg 50 50 55 60 65 80
Cooling   Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Size(L*W*H) mm 644*490*163 620*445*150 650*430*170 650*430*170 770*450*180 800*450*180

(All parameters is believed to be accurate and is subject to change without notice.)

Typical Applications:
Material processing
SHG application
Medical field
Scientific research
Details presentation
2D Drawings and User's manual


Cutting Thickness for different laser power:​

Power Fiber laser cutting machine
Carbon Steel Cutting Thickness Stainless Steel Cutting Thickness Aluminum Alloy Cutting Thickness
500W 6mm 3mm 1mm
700W 8mm 4mm 1.5mm
1000W 10mm 5mm 2mm
2000W 14mm 8mm 3mm
2500W 16mm 9mm 3.5mm
3000W 18mm 10mm 4mm
4000W 20mm 10mm 5mm
5000W 20mm 10mm 6mm

500W Fiber Laser Power Source , Fiber Optic Light Source Water Cooling 0
