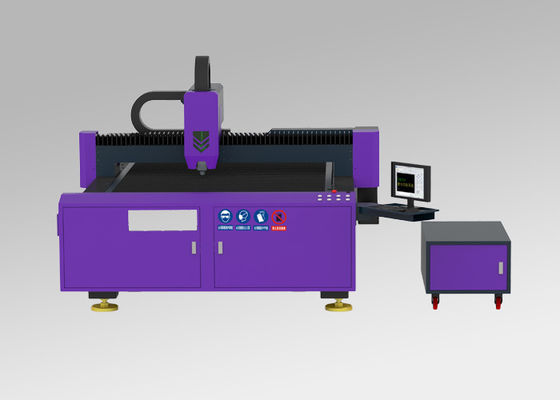

Red Light Positioning Cnc Metal Cutting Laser Machine Simple Operation

Place of Origin SHENZHEN
Brand Name Riselaser
Certification ISO9001:2008
Model Number RL-3015
Minimum Order Quantity 1 set
Price negotiation
Packaging Details wooden case
Delivery Time 15 working days
Supply Ability 2000 sets

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fiber Laser Cutting Machine Laser Type Fiber Laser
Laser Power 500w,800w,1000w Working Area 3000*1500mm
Cutting Head Raytools Power Supply 380V/50Hz
Certification ISO9001:2008
Highlight

metal cutting laser cutter

,

fiber laser metal cutting machine

Leave a Message
Product Description

Good Quality 500W 800W 1000W Sheet Metal Fiber Laser Cutting Machine for Sale



Machine Features:

CNC Metal Fiber Laser Cutting Machine​ mechanical servo cutting head direct contacts with the sheet material, so that the laser focal length remains the same, and cutting speed and quality are the same in the whole working area. The machine uses dual-rail positioning, ball screws transmission, which bring fast speed, high accuracy, stable movement, good dynamic performance and long lifetime. In machine table lengthwise and crosswise movement directions, there are over-travel limit switches and polyurethane anti-collision strips in case of limit switch failure, which greatly ensure the machine operating safety. Automatic programming system directly generates graphic files to machining program, computer simulates processing path, and software automatically nests materials, which improve processing efficiency and material utilization.



Fiber Laser Cutting Machine Advantages:

1. Adopt high efficiency laser source and more stable beam.

2. With the function of restoring from power off,continuation on break point.

3. Advanced control system with usb, professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the efficiency.

4. Red light positioning device indicates the location of laser head,eliminate the trouble about manual positioning.

5. can engrave and cut and achieve perfect unification of two functions.The machine has stable performance, simple operation and wide processing materials, is equipped with electric lifting platform, hashigh speed and precision, and is the best updating choice of all walks of life.


Main configuration:

Item

Name

Quantity

Brand

Laser

fiber laser

1 SET

Maxphotonics

Cutting head

Specialized cutting head

1 SET

RayTools BT( Switzerland)



Machine bed

1 SET

China



Precise Rack

1 SET

TAIWAN DINSENSE

Machine body

Precise linear guide rail

1 SET

TAIWAN HIWIN/ TAIWAN shac



X,Y axis servo and driver

1 SET

LETRO



Reducer system

1 SET

TAIWAN DINSENSE



controller

1 SET

FRANCE Schneider



Machine bed accessories

1 SET

China

Digital cutting system

Controller system

1 SET

Shanghai cypcut /Shanghai Empower

Accessories

Chiller

1 SET

Teyu



Waste recycling equipment

1 SET

China



 Technical parameters:

Model

RL3015

Laser Working Medium

ND:YVO4

Laser Wavelength

1070 nm

Power

800 W/1000W/1500W

Beam Quality

<0.373mrad

Max cutting thickness

10mm carbon steel

Working area

3000mm×1500mm

Positioning Accuracy

≤±0.05㎜/m

Repeatition Accuracy

≤±0.05㎜/m

Power Supply

380V/50Hz



Red Light Positioning Cnc Metal Cutting Laser Machine Simple Operation 0




Application industry:

Widely used in electric power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts,



Applicable materials:
Can be cut a variety of metal sheet, pipe (pipe cutting tube can be another pipe), mainly for stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum, manganese steel, Metal and other materials of professional fast cutting;

Red Light Positioning Cnc Metal Cutting Laser Machine Simple Operation 1
