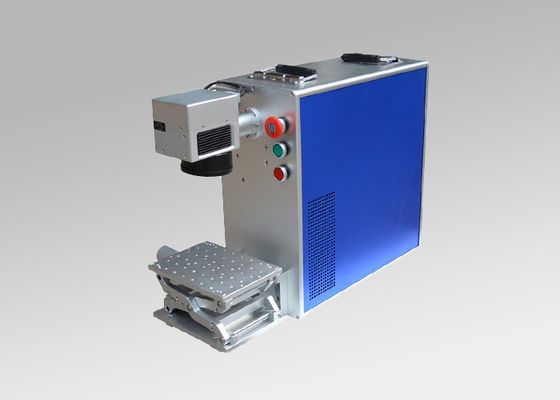

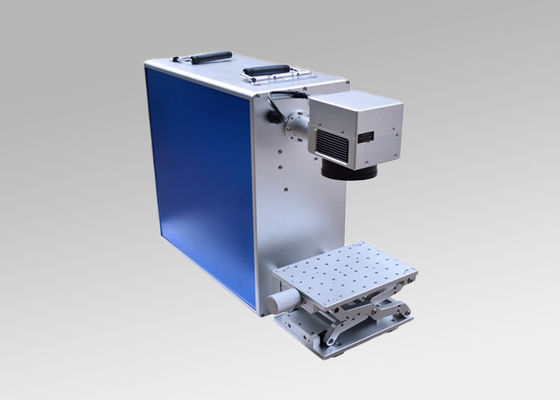

Optical Laser Plastic Marking Machine Air Cooling 110 * 110mm Working Area
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Fiber Laser Marking Machine | Laser Power | 20w,30w,50w |
|---|---|---|---|
| Working Area | 110*110mm | Min. Line | 0.01mm |
| Repeated Accuracy | ±0.001mm | Power Supply | 220v |
| Warranty | 1 Years | Package | Wooden Case |
| Highlight | fiber laser etching machine,fiber laser engraving machine |
||
Product Description
Optical Flaser Marking Machine for Metal , pvc , Plastic Marking
Products Description:
Portable 20w Fiber name Card Laser Marking Machine adopts the high quality fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Laser Marking Equipment boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. Furthermore Fiber Laser Marker also enjoys the advantages of easy operation, low running cost, long-term trouble –free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
Advantages of fiber laser marker :
1. The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
2. The smallest volume, suitable for harsh environment, friendly interface, easy operation.
3. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
4. Compact, lightweight, simple interface, flexible and adjustable processing direction.
5. The master switch, red light switch and galvanometer switch.
6. High precision scale.
Technical Parameters:
|
Laser Type |
Fiber Laser |
|
|
Wavelength |
1064nm |
|
|
Laser Pulse Frequency |
20-80Khz |
|
|
Beam Quality |
<1.4M2 |
|
|
Peak Laser Power |
20W |
|
|
Marking Speed |
<9000MM/S |
|
|
Marking Depth |
<=0.3MM |
|
|
Repetition Precision |
±0.01MM |
|
|
Min. Line Width |
0.02MM |
|
|
Min. Character |
0.2MM |
|
|
Cooling Mode |
Air Cooling |
|
|
Graphic Formats Supported |
PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG |
|
|
Power Source |
AC 110/220V±10%, 50/60Hz |
|
|
Working Temperature |
10-35 C |
|
|
Working Humidity |
<75%(No condensation) |
|
|
Working Environment |
Clean. free of dust |
|
|
Gross Power |
<1000W |
|
|
Safety Protection Class |
IP54 |
|
|
Laser Generator Safety Class |
IV |
|
|
Adjustable Height Direction(Upper surface) |
550-1200MM |
|
|
Adjustable Height Direction(Side) |
400-1500MM |
|
|
Front And Back Direction Adjustable Distance |
0-200MM |
|
|
Marking Angles |
Any Angles |
|
Laser Marker Machine Details:
Application Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Application Materials:
Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
