|Product Name:||Plate And Tubes Fiber Laser Cutting Machine||Laser Type:||Fiber Laser|
|Laser Power:||800w/1000w/2000w/4000w||Warranty:||12 Months|
|After-Sales Service:||Engineers Service Overseas||Weight:||3000 Kgs|
|Control Software:||Cypcut||CNC Or Not:||YES|
|Applicable Material:||Metal Tube And Metal Plate||Power Supply:||AC380V±5% 50/60Hz (3 Phase)|
stainless steel laser cutting machine,
fiber laser metal cutting machine

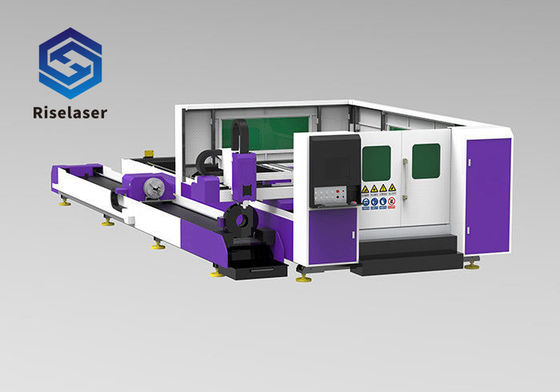

800W-3KW CNC Fiber Laser Cutting Machine with Pipe Automatic Bundle Loader for Industrial Use
1. Design of double electric chucks and double servo motors, apply to cut tube as round ,square, Rectangular tube, oval tube, I-beam, etc.
2. Pneumatic rolling wheel supporting design to ensure the turning stability during cutting.
3. High-performance laser source and stable operating system that make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine can be used for cutting a variety of metals with excellent and stable cutting quality.
6. With a specialized CAD / CAM automatic programming software and automatic nesting software, it is possible to maximally g save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
Fiber laser power : 800W, 1000W, 1500W, 2000W, 3000W 4000W (Optional)
Working size : 3000*1500mm
X and Y positioning accuracy : +-0.05mm
Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine
|Laser power||800W 1000W 2000W 3000W|
|Laser source||IPG/N-LIGHT Maxphotonics fiber laser resonator|
|Pipe/Tube processing (Φ x L)||Φ=20-300mm, L=6m,8m,12m(Φ=20-300mm for option; L>6m for option)|
|Pipe/Tube category||Round, square, rectangular, oval, waist round, etc|
|Rotate speed||120 turn/minute|
|CNC control||Cypcut / Germany PA HI8000|
|Laser head||Switzerland Raytools|
|Power supply||AC380V±5% 50/60Hz (3 phase)|
|Total electric power||22KW|
|Repeat position accuracy||±0.02mm|
|Maximum position speed||70m/min|
|Drawing programming mode||Solidworks,Pro/e,UG, etc import directly|
Pipe Automatic Bundle Loader features
1.Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose
2.Round pipe, rectangular pipe and other pipes can be fully automated loading, without human intervention.
3.Other shapes pipe can be semi-automatic feeding artificially.
4.Max Loading Bundle 800*800mm
5.Max Loading Bundle Weight 2500kg
6.The tape support frame for easy removal
7.Bundles of tubes lifting automatically
8.Automatic separation and automatic alignment
9.Robotic arm stuffing and feeding accurately
Automatic collecting device:
1. Automatic elevating support, receive tube and scrap into the basket
2. Visual scale support can adjust support diameter quickly according to pipe diameter
3. Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging
Lift adjustable support system:
The cutting of pipes of different diameters, by adjustable support system to quickly and accurately find concentricity pipe and claw, to achieve rapid feeding, care feeding purposes, saving setup time cut-out.You can assist chuck support, reducing the swing pipe.
1.As a whole plate welded bed, the whole length of 8 meters.
2.Integration bed can better ensure concentricity of equipment, vertical, precision installation fast and efficient.
3.The whole structure is compact precision.
3D user interface:
1. Intuitive interface, better compatibility with Solidworks, Pro / e, UG software, convenient and easy to operate.
2. radical departure from the traditional CNC operating software code programming style complex method of operation.
3. Reduce the operator's requirements.
Online diagnostic function:
CypTube have received servo feedback function cutting head, laser and other components, is available online diagnose the failure point device.
