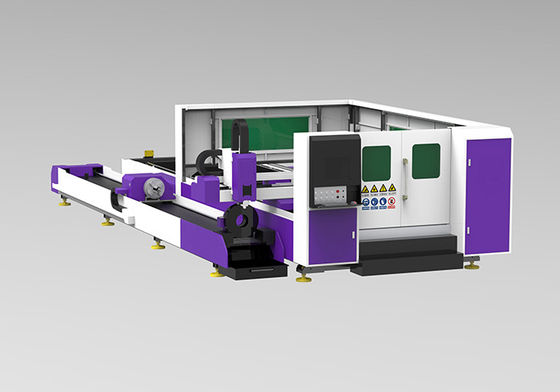

Dual Use Cnc Metal Laser Cutter , Automatic Fiber Laser Cnc Machine

Place of Origin Shenzhen, China
Brand Name Rise Laser
Certification CE, ISO 9000
Model Number RL3015
Minimum Order Quantity 1
Price Negotiable
Packaging Details wooden package
Delivery Time 5-9 working days
Payment Terms T/T
Supply Ability 1000 Unit per Month
Product Details
Product Name Plate And Tubes Fiber Laser Cutting Machine Laser Type Fiber Laser
Laser Power 500w/800w/1000w/2000w/4000w Working Size 3000*1500mm
Warranty 12 Months After-Sales Service Engineers Service Overseas
Weight 3000 Kgs Control Software Cypcut
CNC Or Not YES Applicable Material Metal Material
High Light

sheet metal cnc cutting machine

,

fiber laser cnc machine

Leave a Message
Product Description





500W 800W 1000W 2000W 4000W CNC Fiber Laser Cutting Machine for Tube Cutting and Metal Plate Cutting



Products Description:

One Machine,Dual Use ,can cut metal tube and metal plate by one time
RL3015 laser tube cutting is specifically designed for manufacturers who care about high-quality products and tube cutting. Fully protective cover is able to keep the operators out of the damage of laser beam. Easy usage, maintenance and service have been achieved by the high-tech of fiber lasers. Rack & Pinion, Guide Linear and Auto motor have assured our high acceleration. All components, from globally recognized brands, are able to add more value to your company. We have been always striving to serve quality, performance and efficiency to our clients.



The principal characteristics of the RL3015 Fiber laser cutting equipment are:
Compact design facilitating a wide variety of applications.
CNC with laser control function.
Resonator with reflective sensors.
Simple program for pieces and cutting plans with automatically adapted feed speed and power output for each piece, using CNC.
Highly dynamic equipment.
Rigidity: high strength transfer due to stability of construction.
Durability: enclosed drivers.

Accessibility: spare parts service


Technical Parameters:
Laser source: Maxphotonics fiber laser source
Fiber laser power : 500W, 800W, 1000W, 1500W, 2000W, 3000W 4000W (Optional)
Working size : 3000*1500mm
X and Y positioning accuracy : +-0.05mm
Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Cutting Area
3000mm/6000mm
Laser Power
500 – 3KW Fiber
Software Interface
Included w/ PC control tower
Material Capability
metals and some dark acrylics
Motor type
Servo motors on ball screw drive
Laser / PC Connectivity
USB connection
Power Supply
380V three phases
Warranty
2 Years (includes parts & laser power)
Class
Class 4 laser
Diameter of the pipe and tube
Φ20-Φ200mm
Length of the pipe and tube
6000mm
Route of the X axis
300mm
Route of the Y axis
6500mm
The rotary angle of the W axis
n*360° NO LIMITS
Reposition precision of the X/Y axis
±0.02mm
Max revolving speed of the W axis
80RPM
Max moving speed of the X axis
50m/min
Max accelerated speed of the X axis
1.2G
Max accelerated speed of the Y axis
0.6G
The chuck form
Double pneumatic chuck
Max loading
400kg
Size
10000*1800*2300mm
Weight of the whole machine
5000kg
Motor configuration
X:850W/Y:3000W/W:3000W



Machine Details:
1. Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2. Maxphotonics fiber laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW Optional
3. Japan Yaskawa servo motor system.
4. Taiwan HIWIN linear guide rail.
5. Cypcut controlling system.
6. BEST Germany Atlanta double driver rack gear.
7. Germany Neugart reducer. is using below:
3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.


Advantage of Fiber Laser Cutting Machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy operations: fiber line transmission, no adjustment of optical path.

Product Application:
Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc.
