Mini Fiber Laser Marking Machine 20w for Stainless Steel Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Portable Fiber Laser Marking Machine | Laser Power | 20w,30w,50w |
|---|---|---|---|
| Working Area | 110*110mm | Min. Line | 0.01mm |
| Repeated Accuracy | ±0.001mm | Power Supply | 220v |
| Warranty | 1 Years | Package | Wooden Case |
| High Light | fiber laser engraving machine,laser marking equipment |
||
Product Description

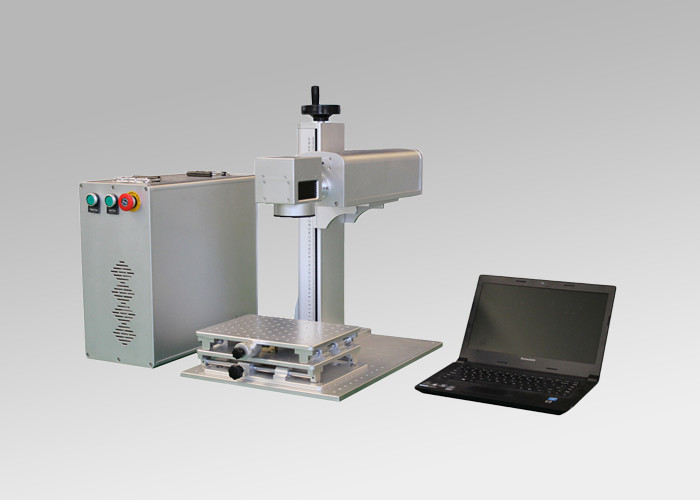

Mini Fiber Laser Marking Machine 20w for Stainless Steel Metal
Products Description:
Portable 20w Fiber name Card Laser Marking Machine adopts the high quality fiber laser generator, high speed Galvo system to enable stable laser output and high qulity laser mode. This model Laser Marking Equipment boasts for its fast marking speed, good marking effect and high efficiency to meet the demand of mass production. Furthermore Fiber Laser Marker also enjoys the advantages of easy operation, low running cost, long-term trouble –free working and free from maintenance. All these factors devotes to its capacity to satisfy industrial production.
Main Features:
1.Optical Fiber Laser, environment friendly, easy maintenance.
2.Life of the laser can be up to 100000 hours.
3.Small volume and weight, less than 35KGS.
4.Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5.Runs without consumable spare parts, no need maintenance, great for continuous working.
6.The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
7.The smallest volume, suitable for harsh environment, friendly interface, easy operation.
8.Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
9.Compact, lightweight, simple interface, flexible and adjustable processing direction.
10.The master switch, red light switch and galvanometer switch.
11. High precision scale.
Technical Parameters:
|
Items |
Technical parameter |
fiber laser marking machine |
|
|
1 |
Average laser output power |
20W or 30W or 50W |
|
|
2 |
Laser wavelength |
1064nm |
|
|
3 |
Power adjustment range |
10-100% |
|
|
4 |
Repetition frequency |
20-100KHz |
|
|
5 |
Output beam quality |
M2:1.5 |
|
|
6 |
Marking Linear deep |
≤1.2mm Min. |
|
|
7 |
Highlight spot |
0.005mm |
|
|
8 |
Min. character size high |
0.15mm |
|
|
9 |
Repetition accuracy |
±0.001mm |
|
|
10 |
Max. Linear marking speed |
9000mm/s |
|
|
11 |
Marking depth |
0.01mm-0.03mm(according the materials) |
|
|
12 |
Marking format |
Graphics, character, bar code, two-dimensional code |
|
|
13 |
Software |
WINDOWS +ezcad |
|
|
14 |
Standard working size |
100mm×100mm (can customize) |
|
|
15 |
Marking area option |
50mm×50mm 150mm×150mm 200mm×200mm |
|
|
16 |
Power consumed |
≤160W |
|
|
17 |
Electrical demand |
220V±10%/50Hz/4A |
|
|
18 |
Cooling Mode |
Air-cooled |
|
|
19 |
Control interface |
USB |
|
|
20 |
Laser module life |
100000 hours |
|
|
21 |
Laser |
Fiber Laser |
|
|
22 |
Resonance mirror |
High speed Usage |
|
Fiber Laser Marking Machine Details:
Application Industry:
1. Electrical Engineering and Electrical part and component
2. Mobile (cover,battery,keyboard, I Phone case)
3. Jewellery(ring,pedeant,bracelet),eyeglass,clocks and craft
4. Medicine package and medical instrument
5. Car motor car spare part
6. Instrument and meters and cutting tool
7. Plastic case and Building materials,PVC pipe
8. Military product and aviation and aerospace,
9. Hardware fitting and accessory
10. Sanitary appliance
11. Food and beverage
12. Solar PV industry: Silicon wafer
13. Other rubber, epoxy resin, ABS, Printing ink, Coating film
