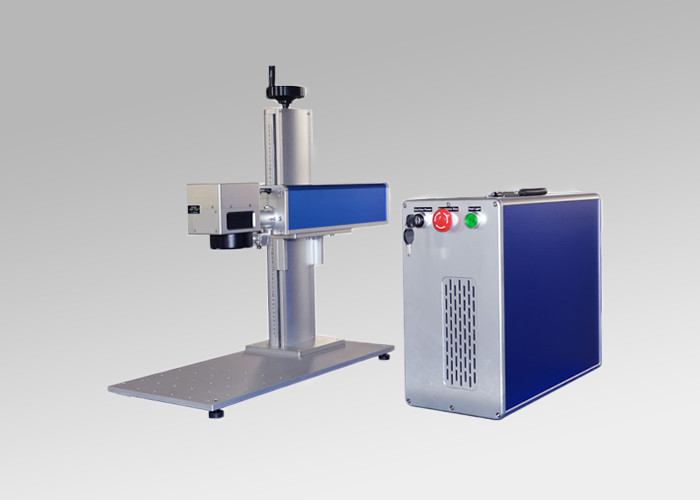

20W 30W Aluminium Deep Marking Fiber Laser Marking Machine with Precision Marking
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Mini Fiber Laser Marking Machine | Laser Power | 20W 30W |
|---|---|---|---|
| Working Area | 110*110mm | Min. Line | 0.01mm |
| Repeated Accuracy | ±0.001mm | Power Supply | 220v |
| Warranty | 2 Years | Package | Wooden Case |
| Certification | CE, ISO, FDA | Control Software | EZCAD |
| Cooling Mode | Air Cooling | Control System | PC |
| Spot Diameter | 6~8mm | Beam Quality | <1.8 |
| High Light | fiber laser engraving machine,laser marking equipment |
||
Product Description
20W 30W Aluminium Deep Marking Fiber Laser Marking Machine with Precision Marking
Machine Main Features:
1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
2.High Precision: Re-position precision is 0.002mm.
3.High Speed: Imported scanning systems makes the scanning speed is up to 7m/s.
4. Easily Operating: Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDraw and Photoshop.
5. High Reliability: MTBF>100,000 hours.
6.Energy Saving: The efficiency of optic-electrical converting is up to 30%.
7. Low Running Cost: No wearing part. Free maintaining.
Fiber Laser Marking Machine Description:
1.Compactness, with the unique all built-in integration design, the optical electronic and mechanical components are highly integrated, so that the whole machine weight only 35kg.It can be called the smallest fiber laser marker in the word. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.
2. High Durability, The laser module has a long service life (greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so).
3. Low consumption, Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power below of 0.5kw.
4. High speed, it applies imported high-speed galvanometer scanning head, which has greatly reduced the latency and increased the marking speed, which is 3 to 10 times of the fist generation of traditional lamp-pumped marker and the second-generation of semiconductor marker (depend on the marking material).
20W 30W Fiber Laser Marking Machine Parameter:
| Model | RLP-20 | RLP-30 |
| Power | 20W | 30W |
| Wavelength | 1064nm | 1064nm |
| Beam Quality | M2<1.6 | M2<1.8 |
| Output Power | 10%-100%(continuously to be adjusted) | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | <±1%rms | <±1%rms |
| Focus Spot Diameter | <0.01mm | <0.01mm |
| Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) |
| Engraving Depth | 1.2mm | 1.2mm |
| Engraving Speed | 800 standard characters/second | 800 standard characters/second |
| Minimum Line Width | 0.012mm | 0.012mm |
| Minimum Character | 0.1mm | 0.1mm |
| Repeated Accuracy | ±0.003mm | ±0.003mm |
| System Operation | Windows XP/7/10 | Windows XP/7/10 |
| Cooling Mode | Air Cooling | Air Cooling |
| Environment Temperature | 10ºC~35ºC | 10ºC~35ºC |
| Environment Humidity | 20%-80% | 20%-80% |
| Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
| Life of Laser Module | 100000Hrs | 100000Hrs |
| Host Size | 800mmx650mmx1435mm | 800mmx650mmx1435mm |
Machine Applications & Materials:
The fiber optic laser marker has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. It is widely used in: Electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance etc...
| Electronic Components | Resistance, capacitance, chips, printed circuit boards, computer keyboard |
| Apparatus And Meter | Panel signs, precision equipment, etc |
| Instrument | Panel signs nameplate, precision equipment, etc |
| Hardware Tools | Knives tools, measuring tools, cutting tools ,etc |
| Automobile Parts | Piston rings, gears, shafts, bearings, clutch, lights etc |
| Mechanical Parts | Bearings, gears, standard parts, motors, etc |
| Daily Necessities | Handicrafts, zipper, key holder, sanitary ware, etc |
| Jewelry Rings | Jewelry, gold, silver, etc |
| Food, drinking packing | Plastic packing etc |
Software Function:
1.Can identify all kinds of BMP, JPG, DXF, PLT, AI and other formats.
2.Automatically generate a variety of serial number, production date, bar code, two-dimensional code, jump numbers.
3.Variable text processing flexible, real-time change text processing, can be directly read dynamically.
4.Real time to read text files and marking files.
5.Through the serial port / network port directly read text data.
6.Multi language support function open, can support the languages all over the world easily.
7.Automatic counting function
8.Support line marking
9.Support multi station marking
10.Support a variety of rotary marking
11.Support the automatic segmentation of large area marking
Machine Details:
| Components | |
| Laser source | Maxphotonics (Chinese best brand) / IPG (World famous brand) |
| Laser head | Sino (Beijing genuine galvo head) |
| Control board and Software | Beijing JCZ and Ezcad (Beijing genuine brand) |
| F-theta lens | Wavelength (Singapore genuine brand) |
| Computer | Industrial PC (High quality Lenovo laptop for mini type) |
| Outside red point | Easy to focuse laser for marking |
| LED light | Lighting when it is pooly lit |
| Working table | X-Y 2d table for adjusting workpiece by X Y axis |
| Protective tool | Protective glasses |
| Foot switch | Replacement for manully click of a mouse |
