Industrial Fiber Laser Marking Machine High Marking Speed with Maxphotonics Source

Place of Origin Shenzhen
Brand Name Riselaser
Certification ISO9001:2008
Model Number RLP-20
Minimum Order Quantity 1
Price negotiation
Packaging Details Wooden case
Delivery Time 5-9 working days
Supply Ability 2000 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Laser Engraving Machine Laser Power 20w,30w,50w
Working Area 110*110mm Min. Line 0.01mm
Repeated Accuracy ±0.001mm Power Supply 220v
Pulse Energy >1mJ Frequency Range ~80kHz
High Light

fiber laser etching machine


laser marking equipment

Leave a Message
Product Description


High Efficiency Fiber Laser Engraving Machine with Maxphotonics Fiber Laser Source


RLP-20 adopts the domestic most advanced fiber laser source and high-quality galvo scanning system. It can provide stable power output, perfect optical mode, good beam quality and high marking speed, so you can get a perfect marking effect and high efficiency, which can fulfill massive production. The advantages of this machine as following: good looking, easy operation, no consumption, no need maintenance, no faulty in long time working. It can meet the demand of industrial continuous work.


1, Adopting integrated structure with Auto focusing technology and humanized operation design.

2,Using the high quality isolators to protect the window of laser source, which can enhance stability and increase its life.

3, Beam quality is much better than traditional solid-state laser marking machine,adopts fundamental mode (TEM00) output, the diameter of focusing spot is less than20um . Divergence angle is quarter of semiconductor pump . It is very suitable for precise marking.

4,High electro-optical conversion efficiency . The gross power consumption less than 600W, which is a tenth of lamp pumped solid laser marking machine, so can greatly save energy .

5, No need any maintenance, long life, small volume, suit for working in atrocious working conditions.

6, High marking speed, It is 2-3 times than traditional marking machine .

7,Powerful marking software. It is compatible with file generate from coreldraw, AutoCAD, Photoshop, etc; support PLT,PCX, DXF, BMP format; SHX , TTF font can be used directly ;it also supports automatically coding,printing serial number, batch number, date, bar code,2D bar code, number jumping automatically, etc.


Technical Parameters:

Product Fiber Laser Marking Machine
Fiber Laser Brand Standard: MAX
Fiber Laser Lifetime 100,000 hours
Fiber Laser Power 10W, 15W, 20W, 30W, 50W, 100W
Beam Quality M2≤1.2
Max. Marking Speed 12000mm/s
Fiber Laser Wavelength 1064nm
Marking Area Standard: 110mm*110mm
Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm
High-speed Galvanometer Yes
Lens F-Theta Lens
Fiber Laser Repetition Frequency 20KHz-80KHz
Minimum character 0.05mm
Marking Depth ≤5mm
Repeated Accuracy ±0.001mm
Minimum Linewidth 0.01mm
Volt 110V, 220V, or according to your request
Cooling Mode Air Cooling
Graphic Format Supported PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc
System Supported Windows, MAC OS
Operating Ambient Temperature 5°C-45°C
Marterial Supported Metal and Some Non-metal
Marking Software EZCAD
Desktop Computer Yes
Training Videos, User Manua Yes
Warranty 2 years
Fiber Test Results Yes
Certificates FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC
Control Interface Standard USB 2.0
Size (L*W*H) 650mm*210mm*500mm
Weight 35KG
Optional Laptop, Rotary Device



Applicable Material:

Material CO2 Laser machine Material fiber laser machine
Wood Aluminum
Acryic Stainless Steel
Fabric ABS
Glass Brass
Coated Metals Carbon Fiber
Ceramic Carbon Nanotube
Delrin Cobait Chorme Steel
Cloth Copper
Leather Colored Delrin
Marble Diallyl Phthalate
Matte Board Gless Filled PPEK
Melamine Gless Filled Telfon
Paper Magnesium
Mylar Metal Plated Ceramics
Press Board Molybdenum
Rubber Mild Steel
Wood veneer Nylon
Fiber Glass Polybutylene Terephthalate
Paintde Metals Polysulphone
Title PET
Plastic Santoprene
Cork Silicon Carbide
Corian Silicon Steel
Anodized Aluminum Silicon Wafers

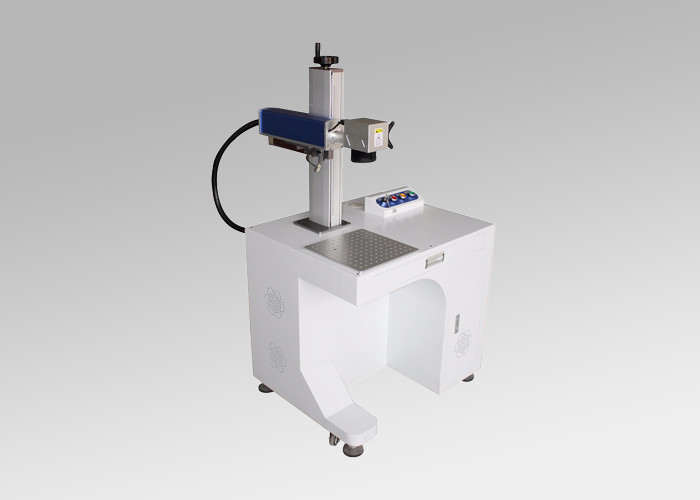

Industrial Fiber Laser Marking Machine High Marking Speed with Maxphotonics Source 0
