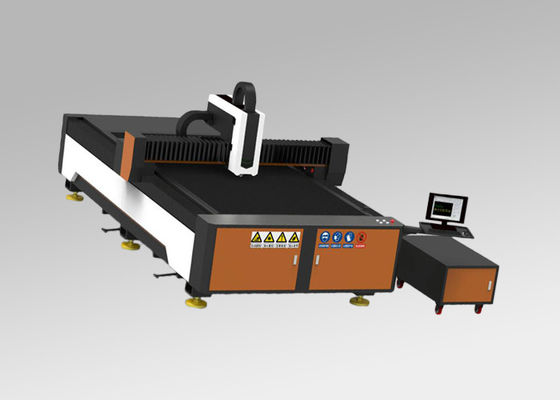

Industrial Precision Laser Cutting Machine , 800w Iron Laser Cutting Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Laser Cutting Machine | Laser Type | Fiber Laser |
|---|---|---|---|
| Laser Power | 500w,800w,1000w | Working Area | 3000*1500mm |
| Cutting Head | Raytools | Controller | CYPCUT |
| Voltage | AC380V/60HZ/3PH | Cooling | Water Cooling |
| Warranty | 1 Year | ||
| High Light | stainless steel laser cutting machine,fiber laser metal cutting machine |
||
Product Description
Industrial Metal Fiber Laser Cutting Machine with High Accuracy
Laser Cutting Machine Features:
Metal Cutting Laser For Sale is adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
Laser Cutting Machine Advantages :
- Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology.
The quality fiber laser beam results in faster cuttingspeeds and higher qualitcuts compared to other cutting solutions.
The key advantage of a fiber laser is its short beam wavelength (1064nm).
The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals.
This makes the fiber laser become a perfecttool for cutting metal sheets of stainless steel, carbon steel, mild steel, etc.
- The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser.
The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit willconsume little to no energy when not active.
- Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
- Powerful Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
Main configuration:
|
Item |
Name |
Quantity |
Brand |
|
Laser |
fiber laser |
1 SET |
Maxphotonics |
|
Cutting head |
Specialized cutting head |
1 SET |
RayTools BT( Switzerland) |
|
|
Machine bed |
1 SET |
China |
|
|
Precise Rack |
1 SET |
TAIWAN DINSENSE |
|
Machine body |
Precise linear guide rail |
1 SET |
TAIWAN HIWIN/ TAIWAN shac |
|
|
X,Y axis servo and driver |
1 SET |
LETRO |
|
|
Reducer system |
1 SET |
TAIWAN DINSENSE |
|
|
controller |
1 SET |
FRANCE Schneider |
|
|
Machine bed accessories |
1 SET |
China |
|
Digital cutting system |
Controller system |
1 SET |
Shanghai cypcut /Shanghai Empower |
|
Accessories |
Chiller |
1 SET |
Teyu |
|
|
Waste recycling equipment |
1 SET |
China |
Technical parameters:
|
Model |
RL3015 |
|
Laser Working Medium |
ND:YVO4 |
|
Laser Wavelength |
1070 nm |
|
Power |
800 W/1000W/1500W |
|
Beam Quality |
＜0.373mrad |
|
Max cutting thickness |
10mm carbon steel |
|
Working area |
3000mm×1500mm |
|
Positioning Accuracy |
≤±0.05㎜/m |
|
Repeatition Accuracy |
≤±0.05㎜/m |
|
Power Supply |
380V/50Hz |
• Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
• Application Industries:
Rise Laser Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
