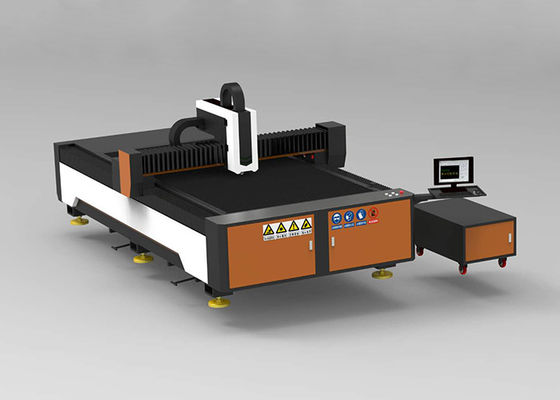

Large Image :  380V / 50Hz Laser Steel Cutting Machine , Smart Fiber Optic Laser Cutter

Product Details:
Place of Origin: Shenzhen
Brand Name: Rise Laser
Certification: CE / ISO / FDA / SGS / TUV
Model Number: RL-3015
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 15 workingdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 units
Detailed Product Description
Product Name: Fiber Laser Cutting Machine Laser Type: Fiber Laser
Laser Power: 500-1000w Working Area: 1500*3000mm
Laser Wavelength: 1070-1090nm Power Supply: 380V/50Hz
Warranty: 1 Year
High Light:

metal cutting laser cutter


fiber laser metal cutting machine


High Preciseion Metal Fiber Laser Cutting Machine for Stainless Steel


Main configuration and technical advantage:

1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours

380V / 50Hz Laser Steel Cutting Machine , Smart Fiber Optic Laser Cutter 0


Main Features:

1, Excellent beam quality: smaller focused spot make more efficient work and cutting quality.
2, High cutting speed: its speed is twice of the same CO2 tube laser cutting machine
3, High stability: the world’s top fiber laser generator makes stable performance, and the key components of the machine owns the life of up to 100,000 hours
4, High electro-optical conversion efficiency: fiber laser is three times higher than CO2 laser and saving energy
5, Low use-cost: whole machine consume less energy, only 20%-30% of traditional CO2 laser machine
6, Low using cost: no laser working gas, it is by fiber optic transmission, without lens reflecting, can save a lot of maintenance costs
7, Smart operation and easy maintenance: optical fiber transmission, no need to adjust the optical path
8, Super flexible light guide effect: compact structure, satisfies flexible processing requirements

Main Configuration:

Item Name Quantity Brand
Laser fiber laser 1 SET Maxphotonics
Cutting head Specialized cutting head 1 SET RayTools BT( Switzerland)
  Machine bed 1 SET China
Machine body Precise linear guide rail 1 SET TAIWAN HIWIN/ TAIWAN shac
  X,Y axis servo and driver 1 SET LETRO
  Reducer system 1 SET TAIWAN DINSENSE
  controller 1 SET FRANCE Schneider
  Machine bed accessories 1 SET CHINA
Digital cutting system Controller system 1 SET Shanghai cypcut /Shanghai Empower
  Chiller 1 SET Teyu
  Water recycling equipment 1 SET China

Technical Parameters:

Model RL3015
Laser Working Medium ND:YVO4
Laser Wavelength 1070nm
Power 500W/800W/1000W
Beam Quality <0.373mrad
Max cutting thickness Depends on power
Working area 3000mm×1500mm
Positioning Accuracy ≤±0.05㎜/m
Repeatition Accuracy ≤±0.05㎜/m
Power Supply 380V/50Hz



Cutting Machine Application:

Widely used for cutting, welding and drilling on stainless steel, carbon steel, Alloy steel, silicon steel, galvanized steel sheet, nickel-titanium alloy, chromium-nickel alloy, titanium alloy and other metal materials.

Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.

380V / 50Hz Laser Steel Cutting Machine , Smart Fiber Optic Laser Cutter 1


A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype….

B. We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.

C. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.

D. We offer life-long technical service for all our machines.
