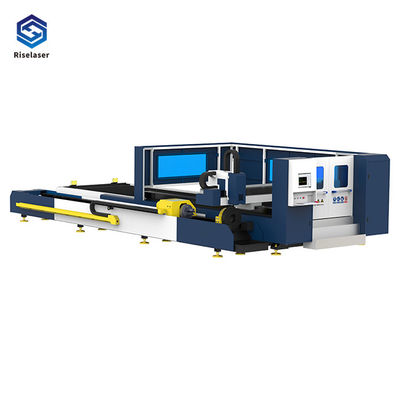

Blade Table CNC Industrial Laser Cutting Machine Stable Running Low Maintenance
Place of Origin | Shenzhen, China |
---|---|
Brand Name | Riselaser |
Certification | CE / FDA / ISO |
Model Number | RL-3015-500 |
Minimum Order Quantity | 1 SET |
Price | USD Negotiable |
Packaging Details | Plywood wooden box with metal belt |
Delivery Time | 15 - 30 Work Days |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 2000 Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLaser Type | Fiber Laser | Cutting Area | 1500*3000mm |
---|---|---|---|
Cooling Mode | Water Cooling | Application | Metal Material Cutting |
Working Voltage | 380V/50Hz | Working Table | Blade Table |
Condition | New | Laser Power | 500W |
Worktable Max Load | 1000kgs | Positioning Accuracy | ±0.05 Mm |
High Light | industrial cnc laser cutting machine,fiber laser cutting equipment |
CW 500W Industrial Laser Cutting Machine for Stainless Steel and Carbon Steel Cutting
Fiber Metal Laser Cutting Machine Features:
The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.
Advantage of Bodor CNC Metal Tube Laser Cutting Machine:
1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3.Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.
4. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
5. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
6. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
7. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
8. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
9. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
10. Easy operations: fiber line transmission, no adjustment of optical path.
What materials can our machine engrave and cut ?
500W fiber laser source | |||||
Material | Thickness(mm) | Speed(m/min) | Gas pressure(MPA) | Gas | Cutting Height(mm) |
Stainless Steel | 0.5 | >18 | 1 | N2 | 0.6 |
1 | 8.4~12 | >1.1 | N2 | 0.6 | |
2 | 1.8~2.4 | >1.8 | N2 | 0.6 | |
3 | 0.84~1.2 | >2.0 | N3 | 0.6 | |
Carbon Steel | 1 | 8.4~12 | 1 | O2 | 1 |
2 | 3~4.2 | 0.6~0.8 | O2 | 1 | |
3 | 1.5~2.1 | 0.25~0.4 | O2 | 1 | |
4 | 1.2~1.5 | 0.15~0.2 | O2 | 1 | |
5 | 0.9~1.2 | 0.15~0.2 | O2 | 1 | |
6 | 0.72~0.96 | 0.1~0.2 | O2 | 1 |
Advantages for CW 500W Industrial Laser Cutting Machine:
1. Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
2. Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out.User can decide to manually do above work, or let controller do it automatically.
3. Support conventional picture edit functions
4. Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc
5. Unique function of Preview of cutting work flow.
6. Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,,, separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.
7. Support to set separate lead in/out speed according to adjustment of laser power.
8. Big storage, allowing user to save all cutting parameters to use it again on same material.
9. Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
10. Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.
11. Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.
12. Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.
13. Input/output and alarm input are programmable, support wireless remote control, and support internet.
Technical Parameter:
Working Area | 3000*1500mm |
Controller+Heigh follower | Cypcut |
Laser Source | Fiber Laser Source 500W |
Wave Length | 1070nm±10nm |
Laser Head | Optional |
Gear and Rack | Germany |
Guide Rail | Taiwanese HIWIN |
Positioning Precision | ≤±0.04mm |
Cutting Thickness | 1-6mm |
Max cutting speed | 40000mm/min(according to materials) |
Working voltage | AC220V/110V±10% 50HZ/60HZ |
Min line Width | ≤0.12mm |
Transmission | Yaskawa servo 850W+FASTON reducer |
Z axis | Yaskawa 400W+brake |
Cooling | Water Cooling |
Structure | 10mm Thickness Welded steel tube,Aluminium Alloy Gantry |
Power Consumption | ≤7.5KW |
Applied materials of 500W Fiber Laser Cutting Machine:
Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.
Applied Industry of 500W Fiber Laser Cutting Machine:
This laser cutter for metal is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
