Medium - Power Metal Fiber Laser Cutting Machine For Medical Equipment

Place of Origin SHENZHEN
Brand Name rise laser
Certification ISO9001:2008
Model Number RL-3015
Minimum Order Quantity 1
Price NEGOTIATION
Packaging Details WOODEN CASE
Delivery Time 15 DAYS
Supply Ability 2000 UNITS
Product Details
Name Metal Fiber Laser Cutting Machine Application Medical Equipment
Feature Medium - Power Other Name Cnc Steel Cutting Machine
Laser Type Fiber Laser Certification ISO9001:2008
High Light

metal cutting laser cutter

,

fiber laser metal cutting machine

Leave a Message
Product Description

Medium - Power Metal Fiber Laser Cutting Machine For Medical Equipment



Features of metal laser cutting machines:

* The medium-power laser cutting machine with the highest precision in China, it can cut small metal bike design with size of half a coin and good cut 6mm mild steel,120 holes can be cut within one minute.

* 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 protection welding, to make sure 20 years usage without deformation.

* Using laser electrical cabinet integration design, cover small area , save space, minimalist design.

* Scrap car symmetrical design, both sides can clean up the waste; Put machine to the romm has no left and right requirements; Pneumatic lifter device to prevent the material from scratching.

* Specially used for cutting 0.5-6mm carbon steel, 0.5-5mm stainless steel, galvanized steel, electrolytic zinc-coated steel sheet, silicon steel and other kinds of thin metal sheets.1000W can cut 3mm aluminum and 2mm copper.



Machine characters :

* Using gantry type mechanic structure , performance is stable .

* Aheadcut USA fiber laser control system, with laser power adjusting function ,

* This model adopts servo motor driving system.machine bed movement structure using high accuracy gear to transit , so to ensure the high speed , high precision and high reliability.

* Using Raytools Switzerland fiber laser cutting head,safe and stable.

* Adopts Maxphotonics fiber laser source ,which is with imported modular high performance, low processing cost ,Eco-friendly .

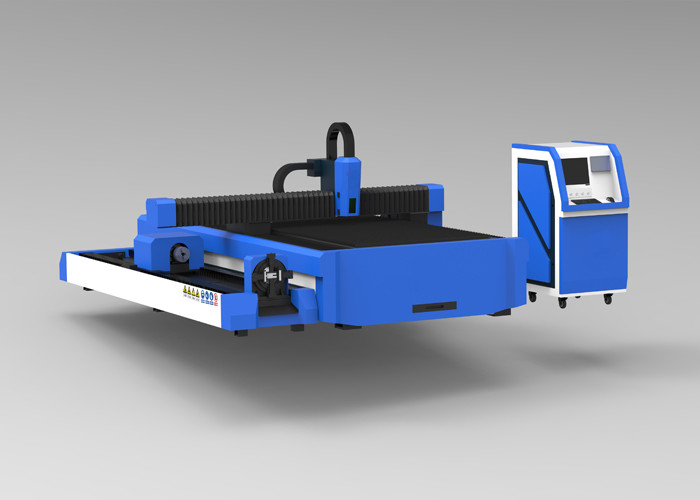

Medium - Power Metal Fiber Laser Cutting Machine For Medical Equipment 0



Technical parameter:

Item Parameter
Laser type Fiber laser
Wave length 1070-1080nm
Electro-optical conversion efficiency 25-30%
XYZ Route 3025mm/1525mm/100mm
Material Cutting thickness 0.2-8mm
Cutting seam width 0.1-0.2mm
Repeat position accuracy ±0.05mm/500mm
Positioning accuracy ±0.05mm/500mm
Max.Moving Speed 60000mm/min
Max.Accerlation speed 0.8g
Max.loading weight 500kg
Machine weight 2300kg
Required Power 220V 50Hz/60Hz
Machine size(L*W*H) 4500mm*2450mm*1700mm



Applied Fields of laser cutting machine:

Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.

Medium - Power Metal Fiber Laser Cutting Machine For Medical Equipment 1
