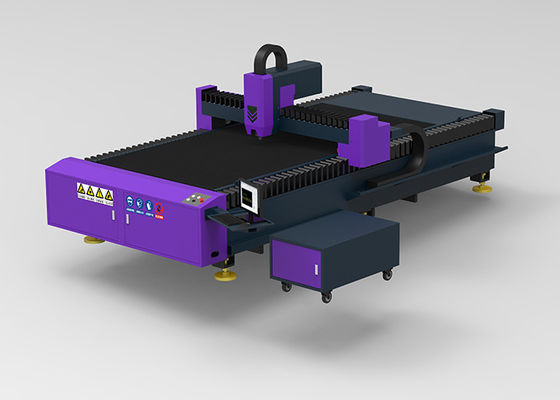

Industrial 1500w Metal Fiber Laser Cutting Machine Small Laser Beam Compact Size

300w -1500w Metal Fiber Laser Cutting Machine for different metal processing industry

Main configuration and technical advantage

Fiber laser is a new international type of fiber laser, it has a large heat dissipation area, good beam quality, small size, etc., it has obvious advantage compare to the large volume gas lasers and solid lasers, gradually developed into the important candidate in high precision laser processing, laser radar systems, space technology, laser medical and other fields. For cutting or drilling, fiber laser is most efficient way, and for other different metal processing.

Mainframe part consist of bed, beam, working table, Z axis, control system, gas and water

system. By controlling the AC server motor of X. Y. Z axis, which drives the cutting head to achieve sable, reliable ad high speed reciprocation motion, the travel distance of X axis is 3025mm, Y axis is 1525mm; X, Y axis linear guide line are used photoelectric sensor and other position components, effectively ensure the accuracy of transmission.

Working table: the machine adapts fixed working table, which is made of welding frame with support rail supporting the workpiece, the table bearing up to 500kg, there are universal balls around the workbench.

The maximum prevention of laser cutting sheet metal loading and unloading scratches.

Main Features:

· Excellent beam quality(BPP)

· Constant BPP in full power range

· Small laser beam

· Electro - optical conversion efficiency>30%

· Free maintanence

· Compact size,easy installation

· Lifespan >100,000 hours

· Integrated optical-optocoupler, or shutter

Main Configuration:


Technical Parameters:

Advantage:

Fiber laser source compared with traditional laser source and non-laser devices is more Eco-friendly .

● With lower electric consumption, fiber laser electro-optical conversion rate is five times of traditional laser.

● Has lower cooling requirement.Lower power fiber laser source only needs air cooling.

● Has higher spot quality , single mode source.

● Has lower consumption ,no need to replace lamp or bar etc consumption material .

Application:

Widely used for cutting, welding and drilling on stainless steel, carbon steel, Alloy steel, silicon steel, galvanized steel sheet, nickel-titanium alloy, chromium-nickel alloy, titanium alloy and other metal materials.

Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.

A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype….

B. We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.

C. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.

D. We offer life-long technical service for all our machines.
