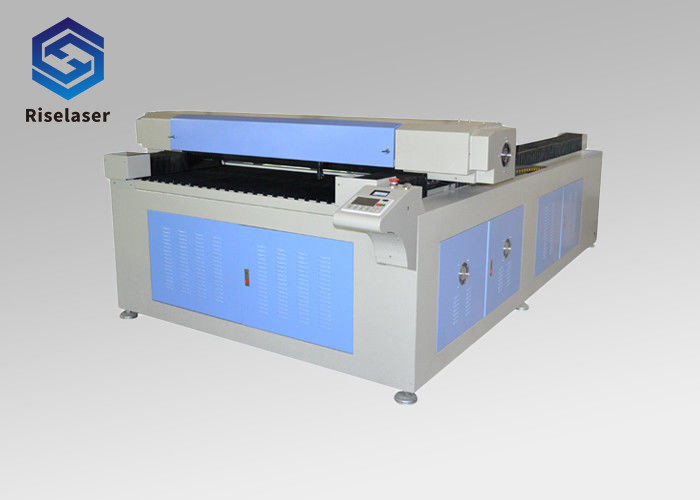

Acrylic Co2 Laser Cutting Machine Parallel Light Path Elegant Exterior Design

Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-1325
Minimum Order Quantity 1
Price Negotiation
Packaging Details Wooden case
Delivery Time 15 working days
Supply Ability 2000units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flat Bed Laser Cutting Machine Working Area 1300*2500mm
Laser Power 100w Co2 Laser Cutting Speed <200mm/s
Total Power 1.5KW Picture Format Supported PLT, DXF, BMP,JPEG, CDR,DWG And Etc
Net Weight 750KG Package Wooden Case
High Light

co2 engraving machine

,

co2 laser cutter

Leave a Message
Product Description



Flat Bed Laser Cutting Machine





Main Features:

1. Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.

2. Optimized process area and wide application meet the requirements for various laser processing technics.

3. High speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement.

4. Complete exhaust and filtering system.

5. For software,It is compatible with AutoCAD, CorelDraw, Photoshop and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.

6. USB cable support Hot Plug, fast date transfer, do not take the memory of the computer

7. Stable parallel light path, make sure the same working effectiveness on different area of the laser table.



Technical Parameters:

Model RL-1325
Work area (mm) 1300*2500mm
Dimension: 3200*2300*1500 mm
Laser tube power 80/100/150W/180w
Engraving speed <300mm/s
Cutting speed <200mm/s
Communication interface USB
Work table Strip panel/Honey comb board
Location precision <0.01mm
Power supply AC220V +/-10% 50Hz
Drive mode Stepper motor or Servo motor
Total power 1.5KW
Design software Coreldraw, Autocad
Picture format supported PLT, DXF, BMP,JPEG, CDR,DWG and etc
Compatible operating Window XP/2000/Vista/7
Cooling system Industrial chiller
Working temperature 0 -45°C
Working humidity 5-95% free of condensate water
Net weight 750KG



Applicable materials:
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.

Materials can be cut:
acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

  Engrave Cut
Wood
Acrylic
Delrin
Cloth
Leather
Mat Board
Melamine
Paper
Mylar
Pressboard
Rubber
Wood Veneer
Fiberglass
Plastic
Cork
Corian
Twill
Anodized Aluminum
Painted Metal
Tile
Glass
Coated Metal
Ceramics
Marble
Stainless Steel
Brass
Titanium
Bare Metal
