|Product Name:||Portable Fiber Laser Marking Machine||Laser Power:||20w,30w,50w|
|Working Area:||110*110mm||Min. Line:||0.01mm|
|Repeated Accuracy:||±0.001mm||Power Supply:||220v|
|Warranty:||2 Years||Package:||Wooden Case|
fiber laser etching machine,
fiber laser engraving machine
. Narrow laser beam, less work materials consumption, small heat affected zone.
. Non-contact processing, no damage to products, no tool wear, high-quality marking.
. High processing efficiency, controlled by computer, being easy to realize automation.
. Processing metal & non-metal materials, especially the materials of high hardness, high melting point and brittleness.
. Being qualified for bad work environment, being with very strong tolerance to dust, shock, impact, humidityand temperature.

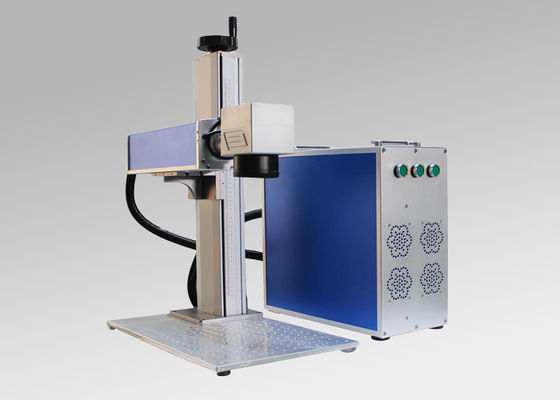

|Product||Fiber Laser Marking Machine|
|Fiber Laser Brand||Standard: MAX|
|Fiber Laser Lifetime||100,000 hours|
|Fiber Laser Power||10W, 15W, 20W, 30W, 50W, 100W|
|Max. Marking Speed||12000mm/s|
|Fiber Laser Wavelength||1064nm|
|Marking Area||Standard: 110mm*110mm
Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm
|Fiber Laser Repetition Frequency||20KHz-80KHz|
|Volt||110V, 220V, or according to your request|
|Cooling Mode||Air Cooling|
|Graphic Format Supported||PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc|
|Software Supported||CORELDRAW, AUTOCAD, PHOTOSHOP, etc|
|System Supported||Windows, MAC OS|
|Operating Ambient Temperature||5°C-45°C|
|Marterial Supported||Metal and Some Non-metal|
|Training Videos, User Manua||Yes|
|Fiber Test Results||Yes|
|Certificates||FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC|
|Control Interface||Standard USB 2.0|
|Optional||Laptop, Rotary Device|
1. High-speed Galvanometer.
♦ Consist of optical scanner and servo controller, adopt new technology, new material, meliorative operating principle.
♦ Electric torsion bar replace traditional elastic material's torsion bar, greatly improve service life and reliability of long time work.
♦ Vastly reduce delay, enhance marking speed, high repetition frequnency.
2. Fiber Laser Transmitter.
♦ Efficient light produced by electricity, consumed power is less than 500W.
♦ Imported pulsed type, TEMOO output, focusing spot diameter is less than 20um.
♦ Being suitable for subtle and precise marking.
3. Field Lens.
♦ Excellent focusing capability.
♦ More accurate.
♦ Improve marking quality on rough surface.
4. Three Sets of Switch Power Supply.
♦ Stable swith power supply makes fiber laser output smoothly.
♦ Make alternating current turn into stable direct current, output rectification and smoothing.
5. High-quality Material.
♦ Durable air plug.
♦ Safer fine copper's cable core.
6. Fiber Laser.
♦ 10,0000 hours service life, about 11years.
♦ 24 hours continuous working.
♦ Same effect, excellent stability.
♦ No need to maintain, being suitable for hostile environment.
7. Control Card.
♦ Possess the function of graph aligning, red light preview, external transmit to read date.
♦ Being suitable for marking on the fly.
♦ Providing hundreds of automatic marking and feeding program.
♦ Being compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
♦ Supporting PLT, PCX, DXF, BMP etc, SHX, TTF etc of word stock can be used directly.
♦ Supporting automatic coding, serial number, batch number, date, bar code, QR code, automatic number jumped, etc.
♦ Graph, Chinese characters, number, English letters etc can be designed freely.
8. Cooling Dust Screen.
9. Portable Handle.
10. Working Table.
♦ 2D table travel: Z=120mm (or according to your requirements).
♦ 3D table travel: X=100mm, Y=50mm, Z=120mm (or according to your requirements ).
11. Rotary Device (optional).
♦ Using stepper motor.
♦ Digital Control.
♦ Controllable speed.
being widely used for figure and character mark & mass production line, such as,
♦ computer accessories ♦ industrial bearings ♦ clocks and watches ♦ operation integrated circuit chips
♦ aerospace components ♦ military products ♦ household appliances ♦ electronic products ♦ hardware tools ♦ wire and cable ♦ food packaging ♦ all kinds of auto parts ♦ dies ♦ jewelry ♦ tobacco ♦ etc
|Material||CO2 Laser machine||Material||fiber laser machine|
|Coated Metals||√||Carbon Fiber||√|
|Delrin||√||Cobait Chorme Steel||√|
|Matte Board||√||Gless Filled PPEK||√|
|Melamine||√||Gless Filled Telfon||√|
|Mylar||√||Metal Plated Ceramics||√|
|Fiber Glass||√||Polybutylene Terephthalate||√|
|Anodized Aluminum||√||Silicon Wafers||√|
