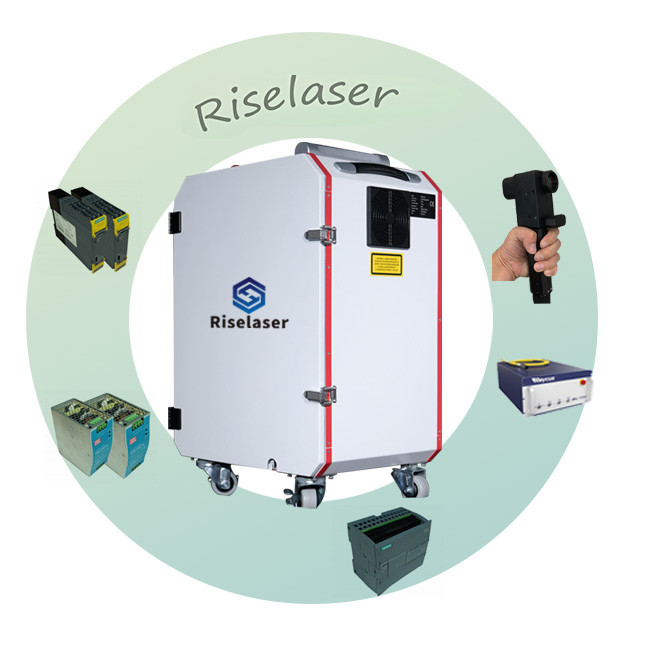

Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal

  • Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal
  • Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-CPL
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 200W, 100W Dimension(L*W*H) 538*411*685mm
Laser Source Brand RAYCUS Weight 80 KG
Wavelength 1064±5 Cooling Method Air-cooled
Application Surface Paint Cleaning Laser Type Fiber Laser
High Light

High Accuracy Pulse Fiber Laser Cleaner

,

200w Fiber Laser Cleaner

,

Handheld Fiber Laser Rust Removal
Leave a Message
Product Description

Industrial Handheld 200w High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal

Fortunelaser laser cleaning machines are the latest high-tech products. It is convenient to install and operate, and easy to realize automation. Plug it in, turn it on, and start cleaning - free from chemicals, media, dust, and water.
No detergent, no media, no dust, no water cleaning. Auto-focus cleans curved surfaces for gentle cleaning of surfaces. Clean the resin, oil stain, rust, paint, and paint on the surface of the workpiece.

  • This laser source offers exceptional stability and efficiency, providing reliable and consistent performance.
  • The cooling air inlet of this product features a unique design with a portable detachable dust net. This innovative feature enables improved air intake while effectively preventing dust and dirt from entering the system. The dust net is easily removable, making it convenient for cleaning and maintenance purposes.
  • This device incorporates a user-friendly touchscreen interface, allowing for effortless operation.With its interactive touch interface, this device simplifies operation and enhances user control over the laser system.
  • Handheld Cleaning Head: This handheld cleaning head is designed with the flexibility to replace field lenses of different sizes. Weighing only 0.5 kg, this handheld cleaning head offers exceptional portability.The cleaning head is equipped with a replaceable auto-focus feature that is seamlessly integrated into the automation process.
  • The controlling software offers a wide range of language options, with over 20 mainstream languages to choose from.Users have the flexibility to adjust important parameters such as laser power, pulse width, and light output frequency. This versatile selection of cleaning shapes allows users to tailor their cleaning approach to specific requirements, ensuring thorough and precise cleaning results

Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal 0Industrial High Accuracy Pulse Fiber Laser Cleaner Paint Oil Metal Rust Removal 1



Specification

Max average power(W) 100 200
Output central wavelength(nm) 1064±5 1064±5
Beam quality(M2) ≤1.6 ≤1.8
Power adjustment range(%) 10-100 10-100
Output power instability(%) ≤5 ≤5
Pulse repetition rate(kHz) 20-400 20-2000
Pulse length(ns) 10/20/30/60/100/200/250/350 Optional 10/30/60/240 Optional
Max pulse energy(mJ) 1 1
Fibre length(m) 3 3/5
Laser safety classification 4 4
Cooling method Air-cooled Air-cooled



FAQ

1. How long is the warranty period?

Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.



2. How long is the cable?

Different laser sources have different options. For example, the normal cable length of raycus and max is about 9 meters.



3. How thick can 1500w-3000W be welded

1-8mm thick metal materials.



4. Is there a wire feeder?

We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.



5. Can aluminum and galvanized steel be welded?

Yes, it can.



6.Packaging

All our machines are packed in wooden boxes.



7.Language interface

Supports language customization, etc. You can also translate and insert to software.
