100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System

China 100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System supplier

Large Image :  100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System

Product Details:

Place of Origin: SHENZHEN
Brand Name: Rise laser
Certification: ISO9001:2008
Model Number: RL-CL100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 7-15 days
Supply Ability: 2000units per year
Contact Now
Detailed Product Description
Product Name: Fiber Laser Cleaning Machine Laser Power: 100W
Source: Fiber Laser Pulse Energy: 1.5mj/pulse
Cleaning Speed: 6000mm/s Package: Wooden Crate



Well Designed 100W Pulsed Fiber Laser Cleaning Machine







Fiber LaserTechnical Parameters:

Characteristics Test Condition Min.value Typical value Max.value Unit
Operating Mode Pulse
Polarization Random
Laser Beam Mode Customized for cleaning
Output Power 100% output power 99.9 100 110 W
Power Tunable Range   50%   100%
Central Wavelength 100% output power 1060 1064 1068 nm
Pulse Width 100% output power 80 100 160 ns
Long Time Power Stability 100% output power   ±2 ±5 %
Total Consumption 480W (AC110V or 220V)
Weight 22.7KG
Cooling Forced air

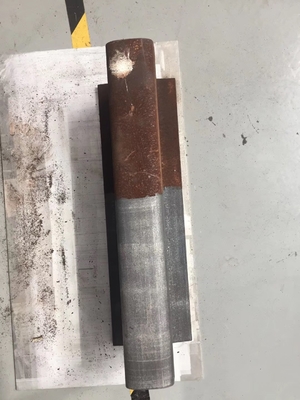

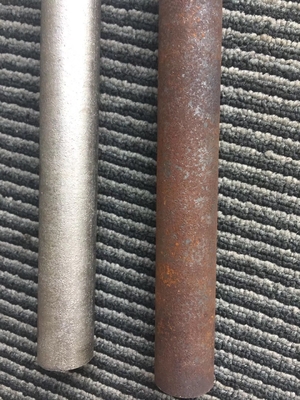

Typical Application - Rust Removal:

High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust. 100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System



Base material

Corroded degree

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage

Rusty carbon steel

cast iron

medium corrosion

0.05mm

4000 >45 good no



Typical Application——Degrease:

High energy pulsed laser socusing on the surface of object,dirty rust and other irregular structure and dark surface absorpt the laser energy and plasma energy formated by metal surface, is instantaneous vaporization from the base metal. Mainly used in the mold cleaning and cultural relics repair and other industries. 100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System



Base material

Corroded degree

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage

Greasy carbon steel



medium oil pollusion

mild rusty

35000 >60 good no




Typical Application——Paint Removal:

For the paint and the surface of the chemical coating and special process, based on the surface and the base material has different absorption and damage threshold on laser, laser destruct the surface coating after focusing, after air contact, there are a series of complex photochemical reactions, oxidation, The final reaction product is in the form of gas discharge, the special mode of the laser below the masterbatch damage threshold, can peel off the coating, do not hurt the base material. Mainly used for paint removal and coating stripping. 100W Pulsed Fiber Laser Metal Cleaner 6000mm/s Speed Forced Air Cooling System
Base material

Corroded thickness

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage
white metal painting >0.1 1500 >30 good no



Laser cleaning-working parameters:

Base metal Surface Valid focal depth Effeciency(mm²/s) Effect
cast iron severe corrosion(0.08mm) >40 3000 clean surface, no damage
carbon steel mild corrosion(0.05mm) >45 4000 clean surface, no damage
stainless steel oily, slight corrosion >60 30000 bright surface, no damage
mould steel gear mild oily with scrap iron >45 5000 bright surface, no damage
aluminum steel oxide/ surface spotting >40 3000 white surface, no damage
stoving varnish ss white stoving varnish >30 1000 bright surface, no damage
