3W 5W UV Laser Engraving Machine UV Laser Marker For Rubber 0.02mm Accuracy
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Uv Laser Engraving Machine | Working Accuracy | Marking Precision: 0.02mm |
|---|---|---|---|
| Control Software | EZCAD | Warranty | 1 Year |
| Laser Wavelength | 355nm | Keywords | UV Laser Marking Machine |
| Marking Speed | 0-7000mm/s | Certificate | CE |
| Applicable Material | Plastic, Glass, Wood, Paper | Machine Weight | 35KG |
| High Light | 5W UV laser engraving machine,rubber uv laser engraving machine,rubber UV Laser Marker |
||
Product Description
3W 5W uv laser engraving machine for rubber engraving machine
3 Watt One Piece colour laser marking machine Plastic Uv Laser Marker
Product Introduction
The UV desktop air-cooled laser has three output wavelengths for customers to choose, 355nm UV. For
355nm ultraviolet laser, the average output power is 1-5W optional. The laser repetition frequency is
adjustable within the range of 20KHz-200KHz, and the laser beam quality M square factor is less than
1.2. One-piece design, the internal drive circuit board is integrated, and the laser output can be
obtained by connecting the external 12V power supply. Without adjusting frame manufacturing
process, the laser has stable mechanical performance and can run stably for a long time.
Product Parameter (Specification)
| UV Laser Marking Machine for Medical Centre | ||
| Laser Machine Features | Machine Body | complete aluminium structure/stainless |
| Laser Type | UV laser | |
| Output Power | ≥3W | |
| Laser Wave | 355um | |
| Scanning System | high precision double scanning system | |
| Marking Speed | ≤9000mm/s | |
| Controller | windows | |
| Operation System | windows system | |
| Cooling System | Air cooling | |
| Laser Marking Parameters | Focusing Lens | focus distance 150mm(optional) |
| Marking Line Type | dot-matrix,vector font can be printing | |
| Min line Size | 0.01mm | |
| Repeated Positioning Accuracy | 0.003mm | |
| Marking Area | 110mm×110mm(Optional) | |
| Positioning | red light positioning | |
| Line Printing | multi-line within marking size | |
| Production Line Speed | 0~230m/min (based on different materials) | |
| File Format | PLT | |
| Barcode | CODE39,CODE128,CODE126,QR, | |
| Machine Parameters | Power Supply | 110-240W |
| Power Consumption | 1100W | |
| N.W | 30KG | |
Main Features
1. UV laser is cold ligh source. it won't have heat effect, there is no burning problem, pollution-free, non-toxic.
2. UV laser with short wavelength,focus,smaller spot,
3. good beam quality, it can achieve hyperfine marking.
4. Most materials can absorb ultraviole laser, it is widely applied on industry;
5. High efficiency, high marking speed, the machine performance is stable, low power consumption.

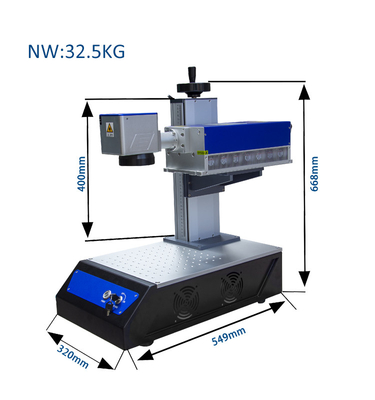

Machine dimension:
FAQ
| Service Time | 24 hours waiting for you |
| Fast Response | 2 hours within our work time,12 hours get off work |
| Good Service | We can supply you from design, polishing to coating |
| MOQ | 1 piece, You can mix your order freely |
Working samples
