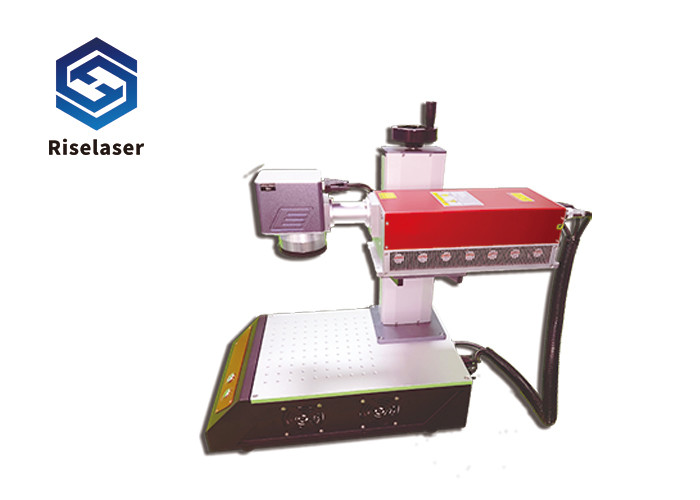

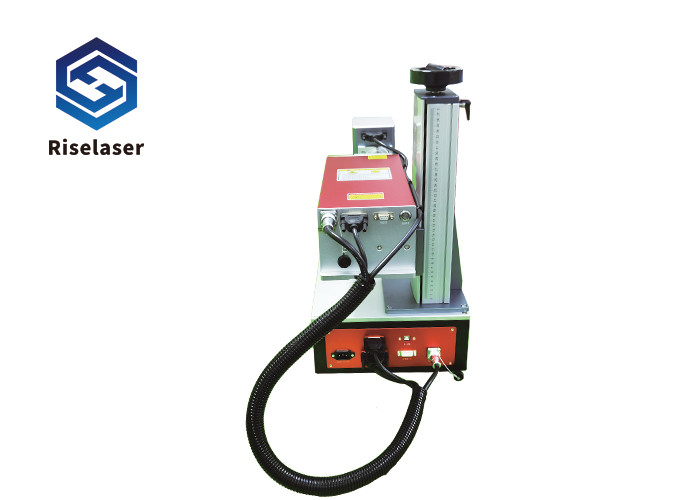

PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine

  • PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine
  • PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine
Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-UV3
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UV Laser Marking Systems Working Accuracy 0.01mm
Control Software EZCAD Warranty One Year
Laser Wavelength 355nm Marking Speed 0-7000mm/s
Certificate CE Color Silver,Blue
High Light

PWM UV Laser Marking Systems

,

TTL UV Laser Marking Systems

,

PWM Tabletop Laser Embossing Machine
Leave a Message
Product Description

PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine



Product Features

1. All-in-one design

2. Remote computer control

3. External TTL and PWM control

4. Adjustable repetition frequency 20-200kHz



Advantages

1. Cold processing marking: no thermal effect and material burning problem.

2. Strong mechanical stability

3. Strong resistance to external temperature interference

4. Good beam quality

5. High long-term work stability



PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine 0

Product Parameter











RL-UV3

RL-UV5

Wavelength

355nm

355nm

Output power

>3W@30KHz

>5W@40KHz

Maximum pulse energy

0.1mJ@30KHz

0.12mJ@40KHz

Pulse Repetition Frequency

1-150KHz

1-150KHz

Pulse duration

<15ns@30KHz

<18ns@40KHz

Average power stability

<3%

<3%

Spatial mode

TEM00 (M²< 1.5)

TEM00 (M²< 1.5)

Polarization ratio

>100:1 Horizontal

>100:1 Horizontal

1/e2 beam diameter at output

0.7mm

0.8mm

Beam circularity

>90%

>90%







Application



      It can identify natural plastic, white plastic, colored plastic and black plastic. The applications where laser marking has been successfully commercialized include livestock ear tags, light switch covers, cosmetic packaging materials, automotive interior buttons and door handles, dashboards, ABS keyboards for business machines, HDPE, PET, and PVC rigid containers and containers Covers, nylon and PBT automotive and non-automotive electrical connectors, engine cover components such as fuse boxes and air caps, anti-counterfeiting labels, container locks, stationery, home appliance housings, etc. Laser welding of plastics has been successfully applied in the field of relays.



    PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine 1







Certifications

PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine 2

Packaging & Shipping

PWM Control UV Laser Marking Systems Tabletop Laser Embossing Machine 3



FAQ

Q1. How to get the most suitable machine and the best price?

Please tell us what material you are dealing with and what is the maximum size of the material? We will recommend the most suitable model for you and provide the best price.

Q2. What if we don’t know how to use the machine?

We will send you manuals and guide videos in English, which can teach you how to operate the machine. If you still can't learn how to use it, we are willing to provide online help, for example, we can talk via phone, email or Whatsapp.

Q3. Quality Control:

The entire production process will be subject to regular inspections and strict quality control. The complete machines will be tested before leaving the factory to ensure they can work well. Our machines have passed CE certification, comply with European and American standards, and are exported to more than 100 countries.

Q4. Do you arrange the shipment of the machine?

Yes, dear customers, we will arrange FOB or CIF prices for you.
