1500w Stainless Steel Sheet Metal Fiber Laser Cutting Machine With Exchange Platfrom
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | RL-1530-1500 | Working Area | 1500*3000mm |
|---|---|---|---|
| Laser Power | 500W/1000W/1500W/2000W Raycus | Laser Wave Length | 1064nm |
| Working Table | Saw Tooth | Maximum Running Speed | 1200mm/s |
| Auxiliary Gas | Oxygen, Nitrogen, Air | Working Life Of Fiber | More Than 100000 Hours |
| High Light | 1500w Metal Laser Cutting Machine,1000w laser cutter,2000 watt laser cutter |
||
Product Description

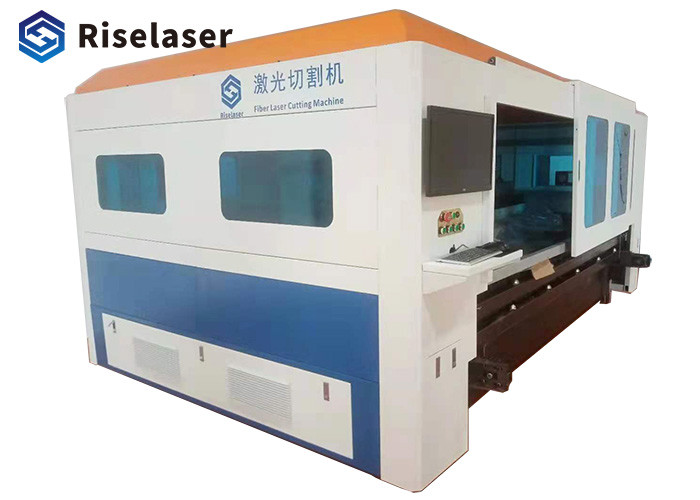

1500w Stainless Steel Sheet Metal Laser Cutting Machine With Exchange Platfrom
Benefit:
1. Heavy-duty; high-strength steel welded structure; beam cast aluminum
2. Heat treatment for 3-4 days, vibration to eliminate stress, to ensure long-term use of the machine deformation changes
3. Segmented dust removal system-new technology to ensure the best results
4. Real brand components can also do sample cutting for you
5. Available power: 1000W 2000W 3000W 4000W 6000W 8000W 12000W
6. The engineer will install and test + training in your factory, you only need to pay the visa + air ticket + accommodation + training fee
Metal Laser Cutting Machine specificaiton
| Model | RL-1530 Metal fiber laser cutting machine |
| Working Area | 1500*3000mm |
| Laser Power | 1000W/1500W/2000W Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Saw tooth |
| Maximum Idle Running Speed | 1200mm/s |
| Position Accuracy | ±0.05mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Software and Control System | Cypcut |
| Position Type | Red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 220V-380V/50-60Hz |
| Auxiliary Gas | oxygen, nitrogen, air |
| Air Proportional Valves | For power 1000W and higher |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | Raytools |
| Software | Compatible with various formats |
| Computer | Yes |
| Water cooling system | S&A industry chiller |
| Motor | Japan Yasakawa two 850W Y motors + 850W X motor |
| Driver | Yasakawa 1000W |
| Reducer | ASG From Japan |
| Liner guider system | Taiwan HIWIN |
| Rack gear | YYC |
| Electric component | Schneider made in France |
| Weight | 3500Kg |
Metal Laser Cutting Machine Samples
More questions about the Metal Laser Cutting Machine
1. How to operate the machine?
We will provide you with English manual and video along with the machine. If you still need our help, please contact us.
2. How can I get samples to check your quality?
If you want to test samples to check the quality, we can help you do this. First of all, you need to provide us with a logo or design, and we can provide a free sample service.
3. Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to make you satisfied.
4. Can you arrange the delivery for me?
We can arrange sea or air freight for our customers. Trading terms FOB, CIF, EXW are available.
