Q - Switched Fiber Laser Cleaning Machine 200w Customized Laser Beam Mode

Place of Origin SHENZHEN
Brand Name Rise laser
Certification ISO9001:2008
Model Number RL-C100
Minimum Order Quantity 1
Price negotiation
Packaging Details wooden case
Delivery Time 5-9 working days
Supply Ability 2000units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Q-switched 200w Handhold Fiber Laser Cleaning Machine For Rust Clean Laser Power 200w
Source Fiber Laser Pulse Energy 5mj/pulse
Frequency 20-230kHz Package Wooden Crate
High Light

laser metal cleaner

,

laser cleaning equipment

Leave a Message
Product Description

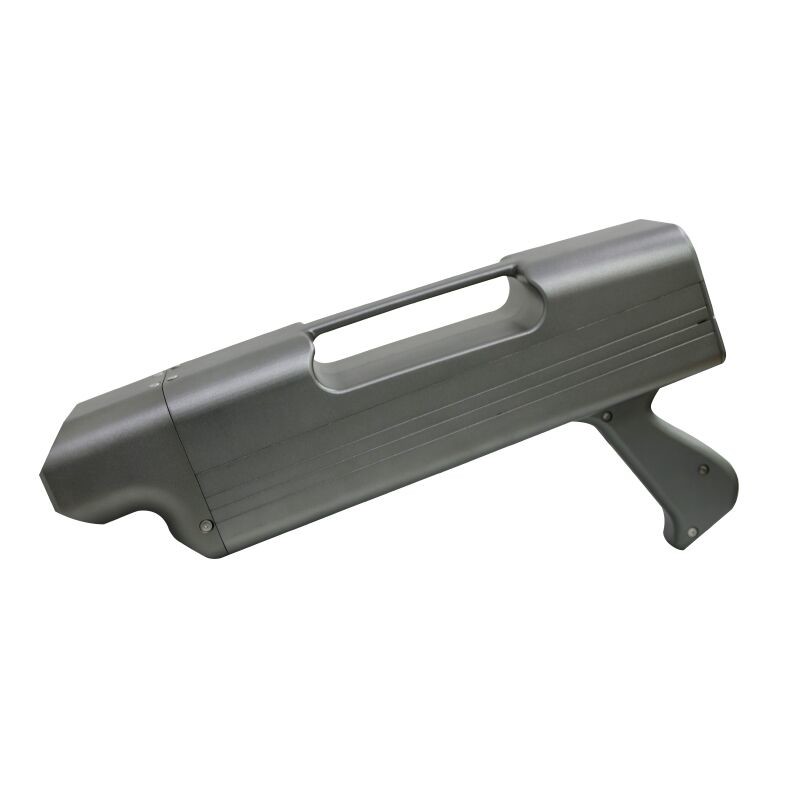

Q-switched 200w Handhold Fiber Laser Cleaning Machine for Rust Clean





Fiber Laser cleaning Machine is a new generation of industrial metal surface cleaning laser system, which specially design to remove the un-needed surface cover or dust.



It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.



Our company‘s laser cleaning system is a new generation of industrial surface cleaning high-tech products. The use of international advanced laser, laser optical systems and control systems, to meet the requirements of metal surface cleaning process.



For laser power, we have 100W and 200W to choose. For the machine outlook, we have sealed bench top, also have hand held ones to choose. You can hold the laser head in hand, and remove the dust in any place or corner you like.



It can meet the requirements of laser surface degreasing, rust, paint,zinc film coating laser removing by laser cleaning technology.



Technical Parameters:

Characteristics Test Condition Min.value Typical value Max.value Unit
Operating Mode Pulse
Polarization Random
Laser Beam Mode Customized for cleaning
Output Power 100% output power 99.9 100 110 W
Power Tunable Range   50%   100%
Central Wavelength 100% output power 1060 1064 1068 nm
Pulse Width 100% output power 80 100 160 ns
Long Time Power Stability 100% output power   ±2 ±5 %
Total Consumption 480W (AC110V or 220V)
Weight 22.7KG
Cooling Forced air





Application:

1 metal surface derusting

2 surface paint removal paint treatment

3 surface without dirt, stains, dirt cleaning

4 surface coating, coating removal

5 welding surface / spray surface pretreatment

6 stone surface dust and attachment removal

7 rubber mold residue cleaning


Typical Application - Rust Removal:

High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formating plasma blasting, finally achieve the relativel smooth corrosive layer of boject surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust. Q - Switched Fiber Laser Cleaning Machine 200w Customized Laser Beam Mode 0



Base material

Corroded degree

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage

Rusty carbon steel

cast iron

medium corrosion

0.05mm

4000 >45 good no



Typical Application——Degrease:

High energy pulsed laser socusing on the surface of object,dirty rust and other irregular structure and dark surface absorpt the laser energy and plasma energy formated by metal surface, is instantaneous vaporization from the base metal. Mainly used in the mold cleaning and cultural relics repair and other industries. Q - Switched Fiber Laser Cleaning Machine 200w Customized Laser Beam Mode 1



Base material

Corroded degree

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage

Greasy carbon steel



medium oil pollusion

mild rusty

35000 >60 good no




Typical Application——Paint Removal:

For the paint and the surface of the chemical coating and special process, based on the surface and the base material has different absorption and damage threshold on laser, laser destruct the surface coating after focusing, after air contact, there are a series of complex photochemical reactions, oxidation, The final reaction product is in the form of gas discharge, the special mode of the laser below the masterbatch damage threshold, can peel off the coating, do not hurt the base material. Mainly used for paint removal and coating stripping. Q - Switched Fiber Laser Cleaning Machine 200w Customized Laser Beam Mode 2
Base material

Corroded thickness

(mm)

Cleaning effeciency

(mm²/s)

Valid focal depth

(mm)

Cleaning effect Base matel damage
white metal painting >0.1 1500 >30 good no



Laser cleaning-working parameters:

Base metal Surface Valid focal depth Effeciency(mm²/s) Effect
cast iron severe corrosion(0.08mm) >40 3000 clean surface, no damage
carbon steel mild corrosion(0.05mm) >45 4000 clean surface, no damage
stainless steel oily, slight corrosion >60 30000 bright surface, no damage
mould steel gear mild oily with scrap iron >45 5000 bright surface, no damage
aluminum steel oxide/ surface spotting >40 3000 white surface, no damage
stoving varnish ss white stoving varnish >30 1000 bright surface, no damage



1. Laser cleaning has no grinding, non-contact, no thermal effect

2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide;

3. No damage to substrate of the products;

4. High cleaning precision, strong controllability;

5. Can be used for a long time, low operating costs;

6. The device can realize automatic operation and simple operation;

7. Environmentally friendly, no supplies, no two pollution

8. It is suitable for various materials, etc.
