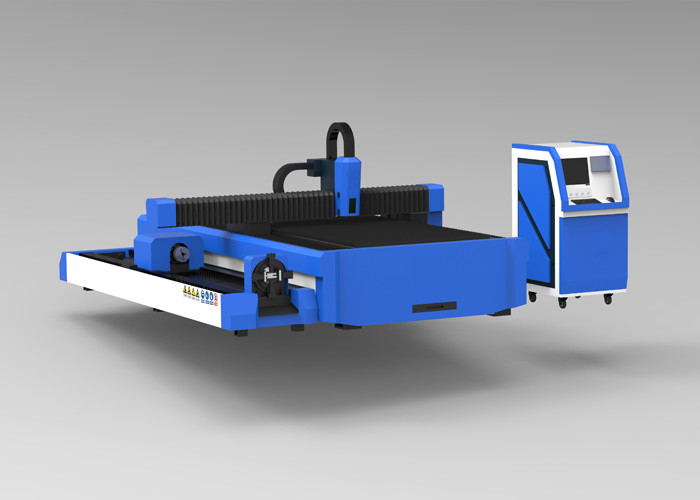

Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System

Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System
Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System

Large Image :  Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System

Product Details:

Place of Origin: SHENZHEN
Brand Name: rise laser
Certification: ISO9001:2008
Model Number: RL-3015

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: NEGOTIATION
Packaging Details: WOODEN CASE
Delivery Time: 15 DAYS
Supply Ability: 2000 UNITS
Detailed Product Description
Products Name: Fiber Laser Cutting Machine Laser Type: Fiber Laser
Laser Application: Laser Cutting Application Material: Metal
Working Area: 3000*1500mm CNC Or Not: Yes
Cooling Mode: Water Cooling
High Light:

stainless steel laser cutting machine

,

fiber laser metal cutting machine

Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting



Features of laser cutting machines:

This type of Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting is launched by Rise Laser. Adopted the Taiwan famous screw guide, Panasonic servo and drive, the fiber laser cutting machine can meet the needs for cutting metal pipe and sheet. And the pipe diameter can up to 200mm. It can be customized according to different demands. The unique design with rotary auxiliaries can avoid the technical problems for cutting pipe and sheet at the same time.



Advantage about Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting

1. Controller with a touch screen operating system, easy to operate.

2. 3HP high-power water chillers to keep the laser head always in a comfortable working temperature.

3. 500-1000W Raycus or IPG fiber laser source, and the photoelectric conversion rate is high.

4. Automatic focus laser cutting head (metal sensor) selection of well-known brands USA , with high sensitivity, good stability.

5. Japan's Panasonic servo motor and drive to improve the cutting speed and stability.

6. Combination of ball movement and feed system.



Technical parameter:

Item Parameter
Laser type Fiber laser
Wave length 1070-1080nm
Electro-optical conversion efficiency 25-30%
XYZ Route 3025mm/1525mm/100mm
Material Cutting thickness 0.2-8mm
Cutting seam width 0.1-0.2mm
Repeat position accuracy ±0.05mm/500mm
Positioning accuracy ±0.05mm/500mm
Max.Moving Speed 60000mm/min
Max.Accerlation speed 0.8g
Max.loading weight 500kg
Machine weight 2300kg
Required Power 220V 50Hz/60Hz
Machine size(L*W*H) 4500mm*2450mm*1700mm



Detail Parts of Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting.

Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System 0





Applied Fields of laser cutting machine:

Fiber Laser Cutting Machine for Round Metal Pipe and Sheet Cutting is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.



Laser Cutting Samples:

Round Pipe Metal Fiber Laser Cutting Machine With Water Cooling System 1
