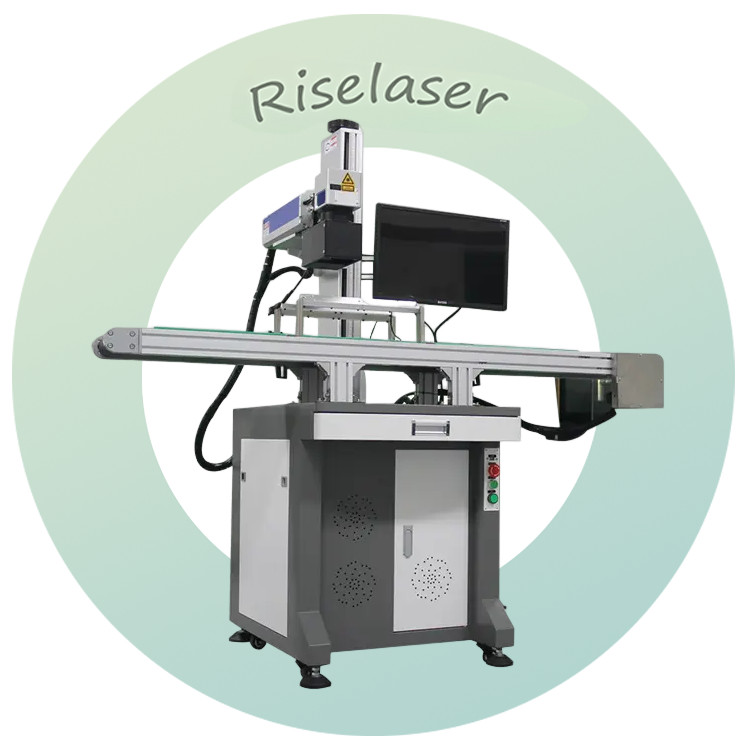

20w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera

  • 20w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera
  • 20w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-V

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type Fiber Laser Cooling Mode Air Cooling
Weight (KG) 85 KG Marking Area 200*200 Mm
Warranty Of Core Components 2 Years Laser Power 20W/30W/50W/70W/100W
Applicable Material Metal Materials
High Light

CCD Camera Fiber Laser Marking Machine

,

100w Fiber Laser Marking Machine

,

Automatic Visual Positioning Laser Marking Machine
Leave a Message
Product Description

CCD Camera 20w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning System

Industrial laser system with high-speed digital vibrator for stable performance. High-precision vision positioning system ensures accurate location without fixtures. Accurate marking of any quantity of products at any angle to specified positions. user-friendly with rich features and easy maintenance. Specialized precision conveyor belt supports step mode and light sensing mode, switchable as needed.



Advantage

  • Industrial laser, high speed digital vibrator, stable performance;
  • High precision visual positioning system, accurate position,corresponding speed, no fixture;
  • Any number of products, any Angle, can be accurately marked to the designated position;
  • Self-developed MACS machine vision software, simple operation rich functions, easy maintenance;
  • Special precision synchronous conveyor belt, supporting stepping mode and photoinductive mode, can be switched according to demand:
  • lt can be matched with assembly line or other automatic loading and unloading mechanism to save manpower and realize automatic marking without humans

20w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera 020w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera 120w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera 220w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera 320w 100w Industrial Fiber Laser Marking Machine Automatic Visual Positioning CCD Camera 3

Parameters

Output Power 20W / 30W / 50W / 70W / 100W
Laser wavelength 1064nm
Beam quality M2 1.4
Pulse repetition frequency 20-80 kHz
Output power stability 5%
Design life About 100,000 working hours (not service life)
Directive projection Red light 655nm output 2.0mW
Marking range 200*200 mm
Recognition angle 360°
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeatability ±0.002
Minimum marker line width 0. 1mm
Minimum character height 0.15mm
Dimensions

Marking machine: 600X800X1400mm

Conveyor belt: 1230X260X160 mm
Total Weight About 85KG



FAQ

1.How long is the warranty period?

Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable?

Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded

1-8mm thick metal materials.

4.Is there a wire feeder?

We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded?

Yes, it can.

6.Packaging

All our machines are packed in wooden boxes.

7.Language interface

Supports language customization, etc. You can also translate and insert to software.
