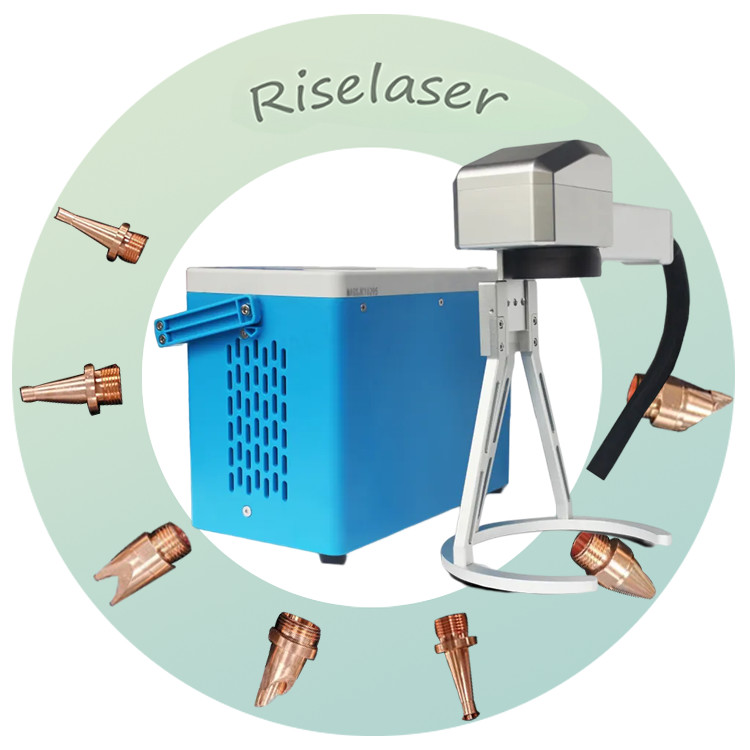

Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W

  • Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-20/30H8
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 40 KG Cooling Mode Air Cooling
Laser Source Brand RAYCUS Mode Of Operation Pulsed
Marking Size 110*110mm;150*150mm Marking Speed ≤7000mm/s
Laser Wavelength 1064±10nm Marking Depth 0-1mm
High Light

Handheld Fiber Laser Marking Machine

,

Mini Fiber Laser Marking Machine

,

30W Handheld Laser Engraver
Leave a Message
Product Description

Mini Handheld Laser Engraver Mini Marking Machine For Metal Working Industry 20W 30W Factory Price

  • It can handle a wide range of materials, including metals and non-metallic substances. It particularly excels in marking materials with high hardness, high melting points, and brittleness, showcasing remarkable advantages in this regard.

  • It falls under the category of non-contact processing, ensuring no harm to the product and no wear on the tools. The resulting quality of the markings is excellent.

  • The laser beam is highly precise, leading to minimal material consumption during processing. Additionally, the heat influence area during the process is minimal.



Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W 0Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W 1Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W 2Mini Handheld Fiber Laser Marking Machine For Metal Working 20W 30W 3

Parameter

model RL-H8











Laser parameters

 Laser type 20M/30M
Pawer output 20W/30W
The beam mass is M2 ≤1.4
Pulse repetition rate 27-60 kHz
Wawelength of laser 1064±5
Output power stability < 3%
Life of design About 100000 working hours (non-service life)









Optical properties

 Range of marking 75mm
Depth of carving ≤1mm (depending on power and time)
Speed of engraving ≤10000mm/s
Accuracy of repetition ±0.002
Winirmum mark line width 0.1mm
Mtinimurm character heighs 0.15mm



Usage

Environment

 Endurance of servioe It can be maintained for 6-8 hours under normal use
Mode of cooling Built-in air cooling
System power supply 500W/100-240V/50/60 Hz









Other

Parameters

 Operating system linux Operating System
File Format Software supports text, patter, wo-dimensigana code, bar code, serlal umber, graphics and other marking content /standard USB
input)
Size of form

Control box:255X135X200 mm

Marking head:270X166X273mm
Machine weight Machine 6kg, marking head 1.25kg



FAQ

1.Are you a factory or a trading company ?

We are a manufacturer established in 2015, located in Shenzhen. Committed to providing the majority of users with economic, high-quality laser equipment and we provide perfect OEM and after-sale
service.Welcome to visit our factory.

2.How was the machine guarantee?
We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.

3.How can I use the machine, if I'm a new buyer?
We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.

4.How do you control your quality?
Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

5.How can I know your machine is designed for my product?
You can send samples to us for marking to check the quality, we can help you to do sample testing.Free sample marking service is provided.
