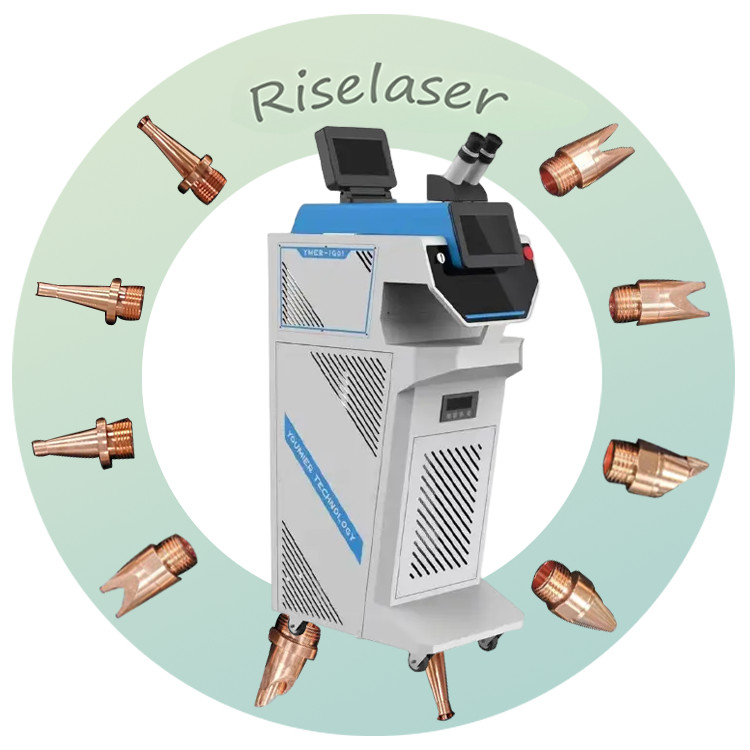

200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength

  • 200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength
  • 200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-Y200e
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Output Power 200W Weight 82 KG
Laser Source Brand YAG Laser Wavelength 1064nm
Welding Materials Jewelry Gold Silver Chain Platinum Cooling Method Water Cooling
High Light

Spot Jewelry Laser Welding Machine

,

Enclosed Jewelry Laser Welding Machine

,

1064nm Jewelry Spot Welder
Leave a Message
Product Description

200W Enclosed YAG Jewelry Spot Welder Protective gas Argon Gold Silver Water cooling

Our compact and space-saving machine offers exceptional functionality. With its small footprint, it takes up minimal space while providing maximum efficiency. The welding parameter system includes a built-in imaging function, eliminating the need for an additional set of monitors. This feature allows for convenient use with a microscope, enhancing precision and ease of operation. Additionally, our machine comes equipped with a specialized water chiller, ensuring stable performance even during long welding sessions and high-power operations. Experience seamless and reliable welding with our advanced technology.

200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength 0200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength 1200W Enclosed Spot Jewelry Laser Welding Machine 1064nm Wavelength 2



Parameters

Name Closed laser welding machine
Power 200W
Laser wavelength 1060nm
Focusing cavity Ceramic condenser cavity
Protective gas Argon
GPS Microscope display
Spot adjustment range 0.2-3MM
Pulse width 1-10ms
Frequency 1-25HZ
Power systems 220V
Cooling method Water cooling
Rated power 5KW



FAQ

1.How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable? Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded 1-8mm thick metal materials.

4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded? Yes, it can.

6.Packaging All our machines are packed in wooden boxes.

7.Language interface Supports language customization, etc. You can also translate and insert to software.
