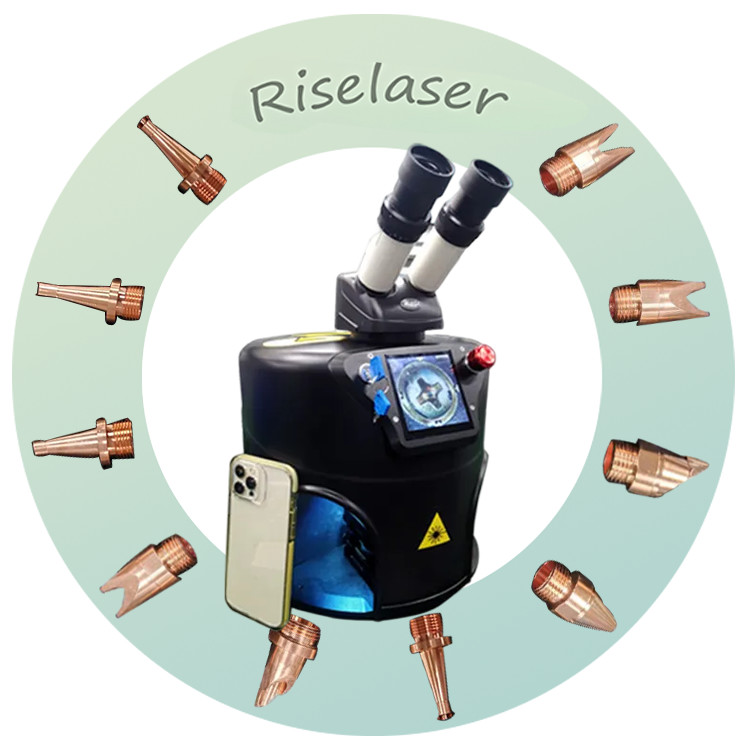

YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair

  • YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair
  • YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-Y40
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Laser Source Brand YAG
Weight 13.5 KG Welding Mode Manual Handheld
Application Jewelry Welding Products Welding Materials Jewelry Gold Silver Chain Platinum
Laser Pulse Energy 40J Operating Mode Touch Control
High Light

Desktop Jewelry Laser Welding Machine

,

YAG 40W Jewelry Laser Welding Machine

,

YAG Laser Spot Welding Machine
Leave a Message
Product Description

YAG 40W Desktop Mini Jewelry Laser Spot Welding Machine for Gold Silver Glass Repair 40J Magic Box

40W Jewelry Spot Welder, the smallest and lightest spot welding machine in the world, weighing an astonishingly mere 13.5KG. This innovative device surpasses all expectations, challenging the conventional notion of spot welding machines and expanding the limits of what users thought was achievable.

Advantages

1. The Magic Box: A Portable Mini Spot Welding Machine for Precise Terminal Use.

Weighing only about 13 kg, this lightweight device is incredibly easy to carry and transport.

2. Innovative Coolant Cooling System: No Water Addition Required

Equipped with an advanced coolant cooling system, the Magic Box eliminates the need for adding water during operation.

3.Enhanced User Experience with Electronic CCD Display

The Magic Box features an electronic CCD display screen that remains steady and flicker-free even during laser emission.

4.Integrated Parameter Settings for Optimal Welding Results

With its integrated parameter settings, the Magic Box offers convenient and efficient adjustment of welding parameters during work.

5.Customize Your Machine: Personalize with Your Logo and Appearance Design

We understand the importance of branding and personalization. The Magic Box supports customization, allowing you to add your own logo and design the appearance of the machine.

6.One-Year Warranty and Online Technical Support

We stand behind the quality and performance of the Magic Box. The entire machine is backed by a one-year warranty, ensuring peace of mind and reliable operation.

7.No Minimum Order Quantity (MOQ) and Wholesale Price

We offer flexible purchasing options with no minimum order quantity. Whether you require a single unit or a bulk order, we are ready to meet your needs.

YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair 0

YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair 1YAG 40W Desktop Jewelry Laser Welding Machine For Gold Silver Glass Repair 2

Parameters

Model Magic Box
Laser Type 1064nm YAG Laser
Beam Diameter 0.2-2.0mm
Pulse Width 0.1-10ms
Frequency 1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy 40J
Host Power Consumption ≤1.5KW
Cooling System Convective air cooling
Pump Source Xenon lamp
Aiming and Positioning Microscope + HD digital CCD camera system
Operating Mode Touch Control
Display Touch Screen 10X high quality colorful Digital CCD
Operating Language English, Chinese
Electrical Connection Values AC220V ± 5%, 50HZ / 60HZ
Machine Dimension Ø295mm x H282mm
Wooden Package Dimension 40x45x48CM
Machine Net Weight 13.5KG
Operating Environmental Temperature ≤45℃
Humidity < 90% non-condensing
Application Welding and repairing all kinds of jewelry and metal parts



FQA

1.How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable? Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded 1-8mm thick metal materials.

4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded? Yes, it can.

6.Packaging All our machines are packed in wooden boxes.

7.Language interface Supports language customization, etc. You can also translate and insert to software.
