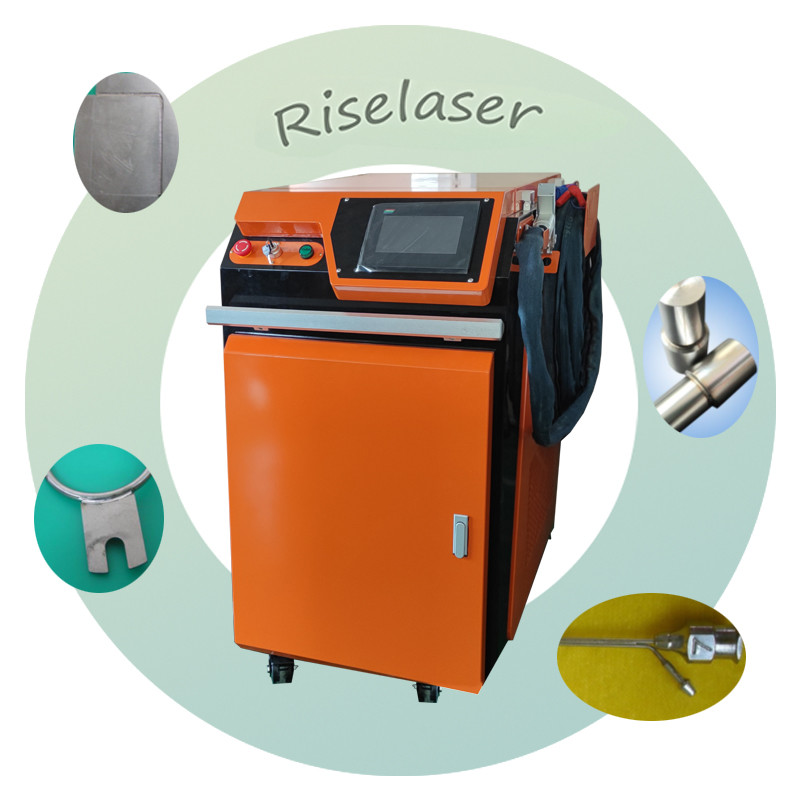

1.5kW Handheld Laser Welding Machine For Stainless Steel Aluminumcarbon
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hand Held Fiber Laser Welding Machine | Main Fuction | Fiber Laser Weldingn For Metals |
|---|---|---|---|
| Optional Function | Welding + Cleaning + Cutting | Laser Type | GW CW Fiber Laser Or Raycus/ Max |
| Laser Power | 1500w | Machine Weight | 160KG |
| Optional | Wire Feeding Machine | Gross Weight | 180.00KG |
| Cooling System | Built-in Water Chiller | Fiber Cable Length | 10-15m |
| Equipment Dimension | 74.5*51.6*71.0cm | Electrical Supply | 220±10% V AC, 50/60Hz |
| High Light | 1.5kW Handheld Laser Welding Machine,1500w Hand Held Welding Machine,1.5kW Fiber Laser Welding Machine |
||
Product Description
1.5kW Handheld Laser Welding Machine For Stainless Steel Aluminumcarbon
1500W Handheld Fiber Laser Welding Machine For Stainless Steel Hand Held Welding Machine
Description
Riselaser has exclusively developed an oscillating welding torch for the hand-held metal laser welding machine. This feature significantly enhances the strength and quality of welding joints, resulting in better weld formability. The machine can perform various welding types, including spot welding, straight seam welding, lap welding, girth welding, and orbital welding. Additionally, an automatic wire feeder is integrated into the machine. Compared to traditional argon arc welding, the efficiency of the hand-held laser welding machine is increased by over 60%.
Specification
| Product Name | 1.5kW Fiber Laser Welding Machine For Stainless Steel Aluminumcarbon Steel Hand Held Welding Machine |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Main components of this machine
Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Support welding methods
Laser head
With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device
Water Chiller
The water cooling device features an integrated industrial chiller, eliminating the need for an external one. It also comes equipped with a built-in water temperature alarm function to ensure safe production. Additionally, it offers dual temperature dual control.
Packing details
Why Riselaser
This hand-held welding torch has replaced the outdated hot-melt welding system, providing benefits that extend beyond the ease of welding molds, advertising characters, kitchen utensils, doors and windows, and other items. The use of a hand-held laser welding torch enables welding outdoors and expands welding capabilities from small and lightweight items to large and heavy objects that are difficult to move. This includes stainless steel silos, stainless steel spiral ducts, chimney pipes, and automotive steel pig feeders, with almost no size restrictions. It is expected that traditional electric welding, argon welding, arc welding, and other methods will eventually be replaced by fiber laser welding.
The hand-held laser welding machine is easy to operate and produces beautiful weld seams, with fast welding speeds and no consumables required. It can be used to weld various metal plates and pipes, including stainless steel, iron, galvanized, and carbon steel plates, as well as aluminum and brass plates and pipes.
