100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine

  • 100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine
  • 100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine
  • 100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, ce
Model Number RL-Y60
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Model Ring Necklace Pendant Jewelry Laser Welding Machine Key Word Laser Welding Machine For Jewelry 100w
Laser Power 30W 60W 80W 100W 200W Machine Weight 35KG/40KG/90KG
Machine Size 510*420*295mm Observation System 10X Microscope Or HD CCD
Cooling System Dimensions Build-In Water Cooling + Air Cooling Peak Pulse Power 7.5kw
Welding Mode YAG Spot Welding Power Supply 220VAC 10% / 50-60HZ
High Light

100w Jewelry Laser Welding Machine

,

CE Approved Jewelry Laser Welding Machine

,

60w Necklace Laser Welding Machine
Leave a Message
Product Description



Laser welding machine for jewelry 100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine





Product advantages
1. It can realize spot welding, butt welding, seam welding and sealing welding. The advantage is that the positioning accuracy is high, and it is easy to realize robotization
2. Large working space, convenient for placing various tools and cleaning welding debris
3. The jewelry laser welding machine adopts YAG technology, so the xenon brand and crystal are the core part of the entire laser welding machine
4. It can be widely used in complex irregular welding of jewelry, watches, dentistry, glasses, etc.

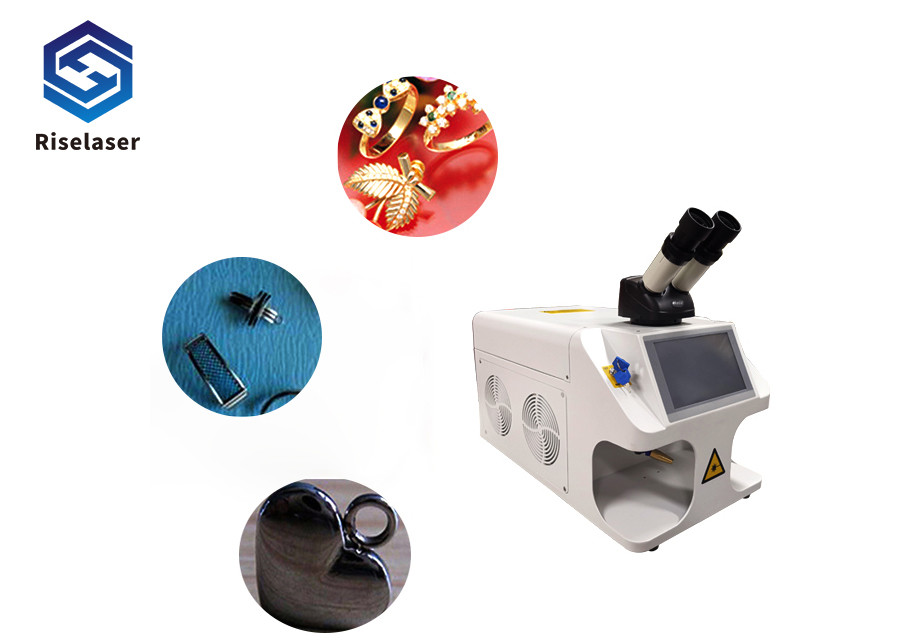

100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine 0

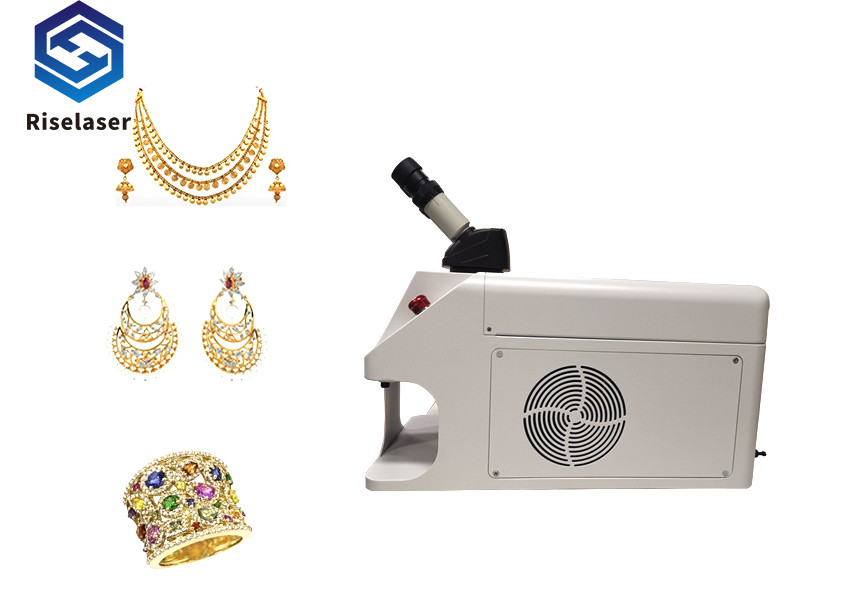

100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine 1



Machine use range
Our machines are widely used in jewelry industry, hardware industry, tool industry,
Instrument industry, automobile industry, energy industry, building materials industry,
Parts that require precision welding, such as model and machine building, electrical and electronic industries
For more details, please contact us.

100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine 2





Machine Specification

Laser type Nd:YAG Pulse Machine type RL-Y60/100/200
Laser wavelength(nm) 1064 Pulse frequency ≤15
Pulse width(ms) 0.5-15 Spot range(mm) 0.1-3
Laser output power(W) 60W/100W/200W Equipment of power supply 220V/50HZ/3kVA
Colling way Built-in air-cooled integrated water tank
To observe the way 10 X HD microscope&CCD integrated





Warranty and After Sales Service
1. The warranty period of this machine is 12 months. You can see the warranty card, service card, operation video and user manual of this machine.
2. During the warranty period, if any parts are damaged, we will provide you with new parts
Free, shipping is borne by us.
3. Even if your machine is out of warranty, if you encounter any problems, you can
Call our service center or contact your salesperson. We will help you solve the problem within 12 hours.

100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine 3



Highly appreciated Feedback from customers



100w 60w Ring Necklace Pendant Jewelry Laser Welding Machine 4



Machine operation video
