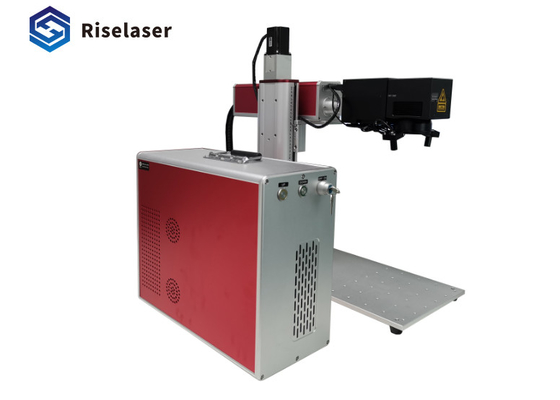

Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine

Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine
Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine

Large Image :  Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Riselaser
Certification: ISO, ce
Model Number: RL-30PS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $1600-4000
Packaging Details: PLYWOOD BOX
Delivery Time: 5-9 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SET/WEEK
Detailed Product Description
Model: 20w, 30w, 50w, 70w  Minimum Line Width: 0.012mm
 Repeated Precision: ±0.003mm  Minimum Character: 0.15mm
  Life-span of Fiber Laser Module: 100 000hours Focus Spot Diameter: <0.01mm
High Light:

1064nm Color Laser Engraver

,

70w Color Laser Engraver

,

1064nm Colour Laser Marking Machine

Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine



1. The machine adopts Raycus brand laser source and has a working life of more than 100,000 hours. The industry's most high-quality fiber manufacturer, ultra-fine fiber beam 0.001mm, provides a 3-year warranty.



2. The machine's vibrating lens adopts high-speed galvanometer scanning with SCANLAB technology, digital signal, high precision and fast speed. The high-quality laser scanning system makes the marking speed up to 7000mm/s.



3. Imported high-light focusing lens. The utilization rate of the laser beam incident on the detector from the edge is improved, and the photosensitive non-uniform illumination on the surface of the probe is uniform.



4. Convenient lifting system, higher precision, easy to operate and adjust focus. The laser focal length can be adjusted up and down according to different marking materials.



5. The heat generated by the air cooling system is used to ensure continuous and efficient operation of the laser machine.



6. Alumina working platform and imported precision linear device. The flexible table has multiple screw holes, which is convenient for custom installation, and is a dedicated fixture industry platform.



7. Alumina protective shell, beautiful and wear-resistant. The internal structure of the machine is reasonable and the maintenance is convenient.



8. The safety laser goggles can effectively filter the infrared and ultraviolet arc light emitted by the laser while working. Protection wavelength 200-450nm/800-2000nm/1064nm (blue, purple, blue and near infrared mixed white light) to protect the eyes from harm, environmental protection and safety. The surface of the lens is reinforced to prevent electric arcs, static electricity, shocks and scratches.



9. Optional rotating shaft can be used for marking on different cylindrical and spherical objects. It adopts stepping motor digital control, and the computer automatically controls the speed, which is more convenient, simple, safe and stable.



10. Adopt BJJCZ or Feeltek3D galvanometer





Specification

Laser Wavelength 1064nm
Marking Area 75*75mm 110*110mm 150mm*150mm
175mm*175mm 200*200mm 300*300mm
Marking Depth ≤ 2mm
Marking Speed 10000mm/s
Minimum Line Width 0.012mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Module 100 000hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted
System Operation Environment Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode Air cooling--Built-in
Temperature of Operation Environment 15℃~35℃
Power Input 220V / 50HZ / single phase or 110V / 60HZ / single phase



Machine details

Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine 0



Samples 3D laser color marking machine with protable size and high quality laser beam

Protable 3D 1064nm Color Laser Engraver Colour Laser Marking Machine 1





Video of 3D metal laser marking machine





Common Questions



Q1: How can I buy the best machine that suits me best?
Please contact our customer service to let them know what material you want to process and your detailed usage on the machine, and then our professional customer service will give you good guidance and recommendations, depending on the experience of our technicians and engineers .


Q2: Compared with other suppliers, what are your machine advantages?
This portable fiber laser marking machine, regardless of the laser generator, we always use the Raycus brand laser source, a very well-known brand, and provides a one-year warranty. A variety of different laser sources can be selected. Regarding the control system, we use the original BJ Jcz control card with tracking number and outdated performance. Other suppliers may choose to crack the version, which is illegal and does not support Win10 system. When it comes to control software, we have always used genuine EZCAD software, which has powerful functions. For scanners and other components, we use scanners, SG7110 or Eurasian M103, and always provide our customers with the highest configuration!
