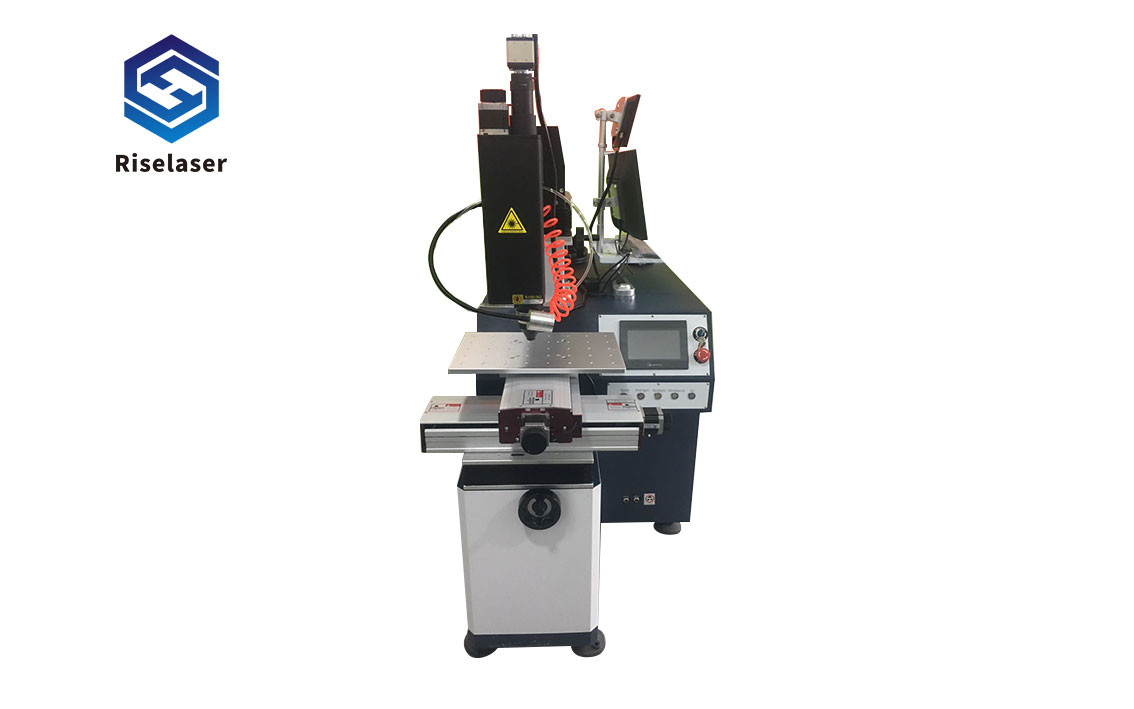

Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J

China Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J supplier
Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J supplier

Large Image :  Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J

Product Details:

Place of Origin: Shenzhen
Brand Name: Riselaser
Certification: CE
Model Number: RL-Y400

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 7-20 Days
Payment Terms: Western Union, T/T, Western Union
Supply Ability: 20 units/ month
Contact Now
Detailed Product Description
Output Power: 400W Power Consumption: 6kW
Single-point Energy: 80J Wavelength: 1064nm
Cooling System: Water Cooling Warranty: 1 Year
Weight: 540kg Dimensions: 1500x750x1200 Mm
High Light:

400W Laser Metal Welding Machine

,

1064nm Laser Metal Welding Machine

,

80J Automatic Welding Machine

400W Double Light Spot Automatic Laser Metal Welding Machine

Product Details

1. CCD observation system: The operator can clearly observe the welding details.
2. Four-axis linkage: not limited by the shape of welded parts.
3. Welding head: The welding head of the automatic welding machine can achieve uniform welding, stable performance and continuous laser discharge.
4. Laser source: The laser source can be matched with RAYCUS, IPG and other brands according to requirements, with stable performance and long service life.
5. Advanced chiller: good cooling effect, no noise, no pollution.

Module way 4-axis linkage
Work schedule 200x200/300x300(optional)
System language Chinese/English
Electrical connections AC380V ± 5%, 50HZ / 60HZ
Working environment Temperature≤40℃/Humidity< 90%
Equipment size 1500x750x1200 mm
Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 0

Main Advantages

1. Spot welding, butt welding, stitch welding and sealing welding can be performed on the workpiece;

2. Fast welding speed, high aspect ratio, small heat-affected zone and small deformation during welding;

3. The welding seam is smooth and beautiful, no need or simple treatment after welding;

4. The whole application of four-axis linkage design, the stroke can be customized, and the angle can be adjusted;
5. The laser head can perform spatial trajectory movement, and can weld any plane trajectory such as dots, straight lines, circles, ellipses and squares, and simple spatial geometric shapes.



Parameters

Unit type RL-Y200 RL-Y300 RL-Y400
Laser wavelength 1064nm
Laser power 200W 300W 400W
Beam diameter 2.0 mm
Adjustable light spot ±3.0mm
Pulse width 0.1-15ms
Repetition frequency 1.0~40.0Hz
A single point of energy 60J 70J 80J
Overall power consumption 3.5kW 5kW 6kW
Cooling system Water cooling
Monitoring system CCD Monitoring system
Control Method CNC Control
Pump light source Single lamp Double light Double light
Module way 4 axis linkage
Work schedule   200x200/300/x300(optional)
Manipulation language Chinese/English
Electrical connections AC220V ± 5%, 50HZ / 60HZ AC380V ± 5%, 50HZ / 60HZ AC380V ± 5%, 50HZ / 60HZ
Work environment Temperature≤40℃/Humidity< 90%
Net weight 350kg 500kg 500kg
Gross weight 380kg 540kg 540kg
Size 1500x750x1200mm





Product Application

Suitable for welding or repairing various metal, alloy and steel molds.
(1) Kitchen and bathroom supplies: kettle, vacuum cup, stainless steel bowl, metal water pipe.
(2) Stainless steel products, golf heads, zinc alloy artwork.
(3) Aluminum alloy, laptop casing, mobile phone battery, electrical accessories, filters, nozzles.
(4) Fiber optic coupler, electron gun, capacitor, lithium ion battery, sensor, tungsten wire, high-power diode, etc.

Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 1Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 2



Certifications

Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 3

Packaging

Wooden case along with plastic film



Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 4

Exhibition

Double Light Spot 1064nm 400W Laser Metal Welding Machine 80J 5



After-sales Service:

1. We will supply instant online service to foreign customers. According to foreign customer's requirement, we are able to arrange for technicans to go abord to install or maintain the machine.

2. We offer free replacement within one year warranty if any damage under normal using condition.

3. We will offer software upgrade for free for life.

4. After the expiry of warranty, we can renew the warranty contract, which ensures the same service.

5.We will regularly evaluate the staff's service attitude to improve service quality.
