Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty

Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty
Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty

Large Image :  Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty

Product Details:

Place of Origin: Shenzhen
Brand Name: Riselaser
Certification: CE
Model Number: RL-Y80

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Carton case
Delivery Time: 7-20 Days
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 200 units/ month
Detailed Product Description
Product Name:: Jewelry Laser Spot Welding Machine For Gold , Stainless Steel Repairing Color:: White
Voltage:: 110V/220V Optional Warranty:: 1 Year
Place Of Origin:: Shenzhen, China (Mainland) Certification:: CE
Brand Name:: Riselaser Dimensions:: L*W*H : 510*295*395 Mm
Power(W):: 80W Application:: Jewelry Welding
High Light:

laser welding equipment

,

laser spot welding machine

80W Jewelry Laser Spot Welding Machine for Gold , Stainless Steel Repairing



Product Description

This welder is specially developed for laser welding of jewelry by Riselaser and mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application.The spot welding process is thermal conduction, The laser radiation heats the surface of work piece,and the surface heat diffuse to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser- pulse to form specific molten pool. Because of its unique advantage,it is widely used in the process of gold and silver jewelry and welding of mini and small parts.



Features

One-button operation for automatic pumping,pwm continuously variable fans,touch screen integrated CCD display.

1. Small heat affected zone;

2. Does not lead to the product deformation welding the weld depth is big;

3. Welding firmly;

4. Melting fully,without trachoma,leave no trace repair;

5. Can work continuously 24 hour a day.



Technology Parameter

Input Voltage AC220±10% 50HZ
Laser Frequency 1.0-10.0HZ Continuously Adjustable
Pulse Width 0.1~10.0ms Grading Adjustable
Spot Adjustment Range ±3mm
Laser Output Power ≤80W
Aiming and Positioning CCD and Microscope
Environment Temperature ≤45℃
Operation Method Touch Control
Laser Wavelength 1064nm
the Installation Size of Display Touch Screen 137*190mm
Size L*W*H : 510*295*395 mm
Weight About 40KG



Applicable & Samples

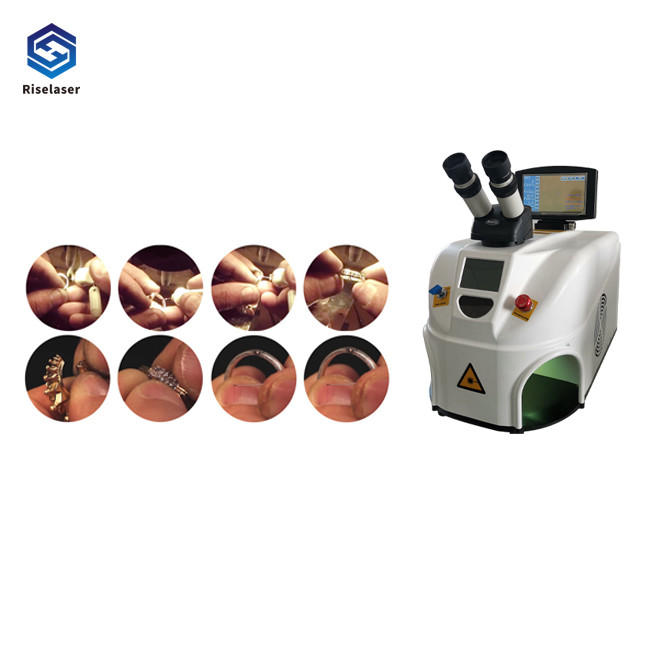

Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty 0



Certifications

Jewelry Spot Laser Welding Machine Touch Screen CCD Display 80W 1 Year Warranty 1





FAQ

Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
