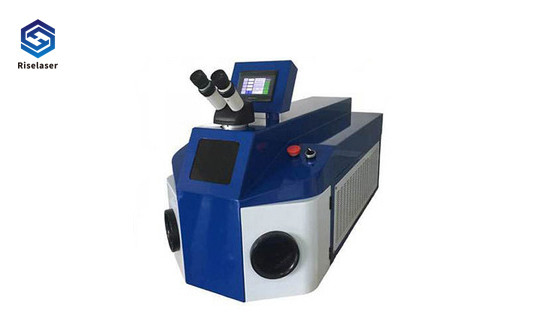

High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry

High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry
High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry

Large Image :  High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry

Product Details:

Place of Origin: Shenzhen
Brand Name: Riselaser
Certification: ISO9001:2008
Model Number: RL-Y100

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 7-20 Days
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 200 units/ month
Detailed Product Description
Product Name:: High Precision Jewelry Maker Hot Sale Jewelry Laser Welder Color:: Blue
Laser Source:: YAG Laser Voltage:: 110V/220V Optional
Warranty:: 1 Year Cooling Method:: Water Cooling
Place Of Origin:: Shenzhen, China (Mainland) Certification:: CE
Brand Name:: Riselaser Dimensions:: 980mmx570mmx1200mm
Power(W):: 100W Application:: Jewelry Welding
High Light:

laser spot welding machine

,

laser soldering machine

This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry 0



SPECIFICATIONS FOR JEWELRY LASER WELDING MACHINE
Model RL-Y100
Laser output power 100W
Laser type YAG pulse
Laser wavelength 1064um
Pulse width 0.1ms-20ms
Pulse energy 75J
Pulse frequency 0-50Hz
Size of welding spot 0.2mm-2.0mm
Adjusting range of light spot 1.8mm
Max. bearing of work bench 25KG
Repeating precision of work bench -0.001
Positioning precision of work bench -0.001
Sighting positioning system HD-CCD monitor system
Cooling method Water cooling
Max. output power 200W
Integrity power 5KW
Power supply AC220VAC/380VAC+-15%/50HZ/25A
Guarantee 1 year

Applicable & Samples

This laser welding machine can be used in spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelry and small accessories. Also widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc.

High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry 1

Certifications

High Precision Fiber Laser Welding Equipment 100 Watt 110V/220V For Jewelry 2

FAQ

Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
