High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling

China High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling supplier
High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling supplier High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling supplier High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling supplier

Large Image :  High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling

Product Details:

Place of Origin: Shenzhen
Brand Name: Riselaser
Certification: ISO9001:2008
Model Number: RL-YW200

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 7-20 Days
Payment Terms: T/T, D/P, L/C, Western Union
Supply Ability: 200 units/ month
Contact Now
Detailed Product Description
Product Name:: High Precision Jewelry Making Machine Hot Sale Jewelry Laser Welder Color:: Blue
Laser Source:: YAG Laser Voltage:: 110V/220V Optional
Warranty:: 1 Year Cooling Method:: Water Cooling
Place Of Origin:: Shenzhen, China (Mainland) Certification:: CE
Brand Name:: Riselaser Dimensions:: 980mmx570mmx1200mm
Power(W):: 200W Application:: Jewelry Welding

High Precision Jewelry Making Machine Hot Sale Jewelry Laser Welder

Introduction of Jewelry Laser Welding Machine:



The jewelry laser welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine's unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.



Technical Parameters:

Item Name

Technical Parameter

Model

RL-YW200

Laser type

Nd:YAG

Laser Wavelength

1064nm

Laser Power

200W

Laser Engery

80J

Pulse Width

≤ 20ms

Pulse Frequency

≤ 50Hz

Beam Diameter

0.1-3.0mm

Observing System

microscope

Chamber Illumination

LED lamps

Parameters Memorization

10 groups

Protection Alert

flow alert

Language Display

English

Shield Gas Supply

One line

Cooling System

Water cooling

Power Consumption

6KW

Power Supply

220V±10% /50Hz

Welding Chamber Dimensions

300mm*450mm*150mm(L*W*H)

Machine Dimensions

980mmx570mmx1200mm (L*W*H)

Running Environment

5℃-30℃, 5%-75% humidity

Net Weight

130kg(welder)+50kg(chiller)



Jewelry Laser Welder Details:

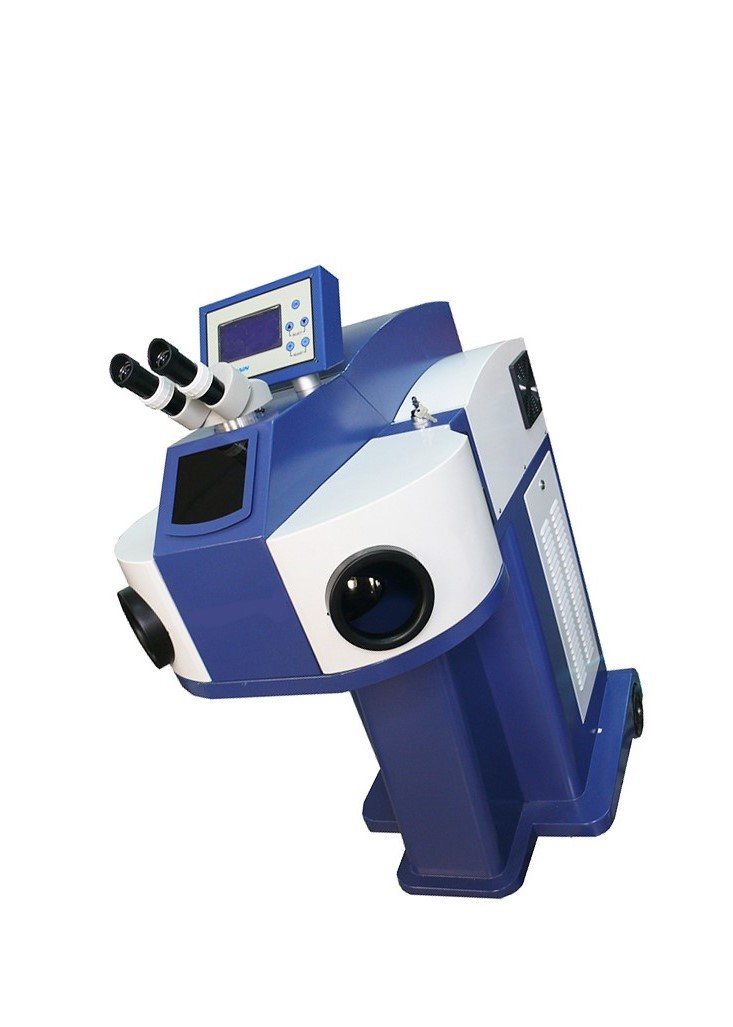

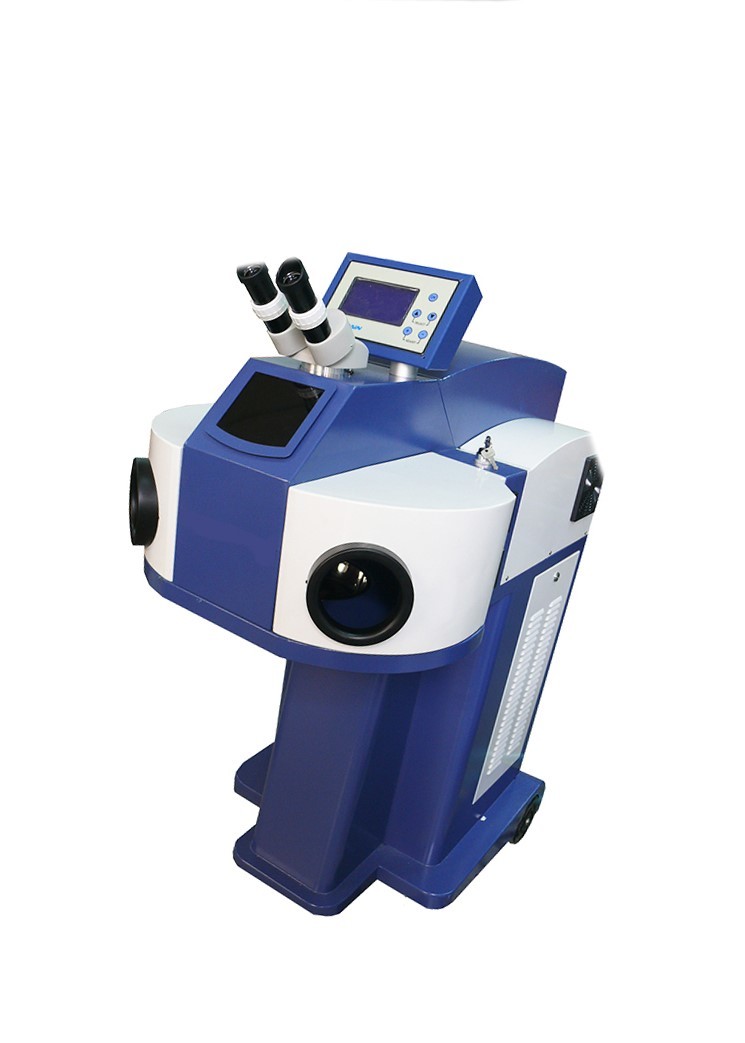

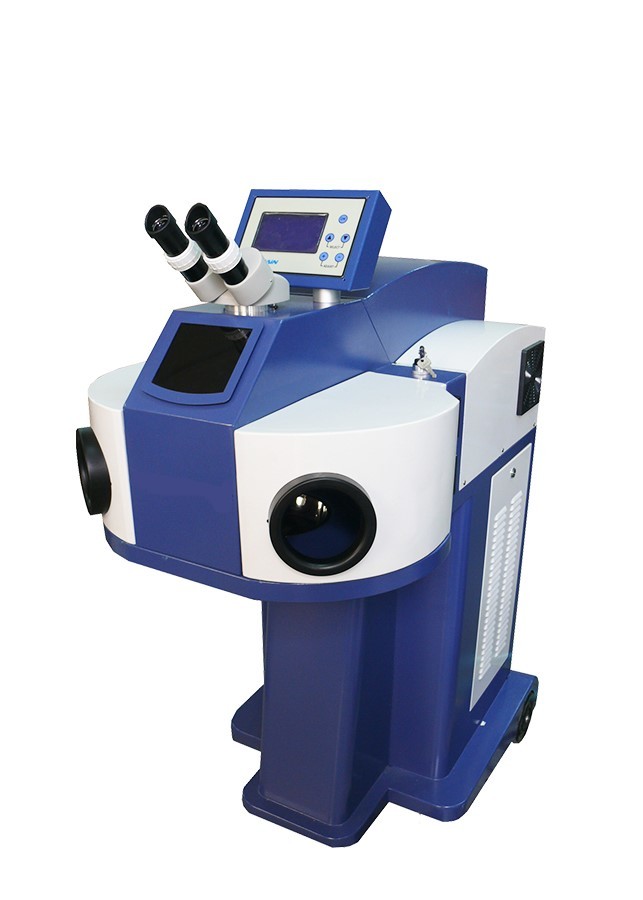

High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling



Features of jewelry laser welding machine



1.Energy, pulse width, frequency, spot size, etc. can be adjusted in a larger range to achieve a variety of welding results. Parameters from the closed chamber control rod adjustment, simple and efficient;

2.Adopting imported ceramic condenser cavity, corrosion resistance, high temperature, high efficiency of photoelectric conversion, life span of concentrating cavity (8-10 years), life of xenon lamp of the laser spot welding machine are all more than 8 million times;

3.The use of the world's most advanced automatic shading system, eliminating the time in the work of the eye irritation;

4.With 24-hour continuous working capacity, machine performance and stability;

5.humanized design, ergonomic, long hours of work is not fatigue;



Main Advantages: fast, high efficiency, large depth, small deformation, heat affected zone is small, high quality welding, solder joint pollution-free, high efficiency and environmental protection.



Application of Jewelry Laser Welding Machine:



The model laser spot welding machine is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments hole and spot welding sand holes, can also be used for cold work high alloy steel, hot forging high alloy steel, nickel tool steel, advanced Steel, copper alloy, brass, copper, high-toughness aluminum alloy welding and other metal welding materials.



Welding Samples:



High Precision Laser Welding Equipment Jewelry Laser Welder Water Cooling
