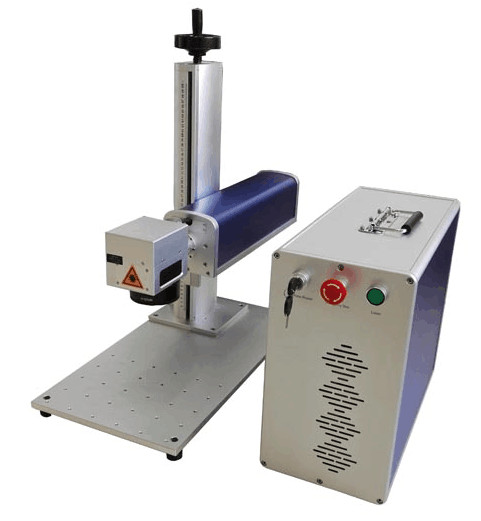

Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy

Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy
Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy

Large Image :  Copper Brass Aluminum Laser Marking Machine 20W/30W 0.01mm Repeated Accuracy

Product Details:

Place of Origin: Made in China
Brand Name: Riselaser
Certification: CE, FDA, UL, IOS9001
Model Number: RL-20PS

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: USD
Packaging Details: Plywood Case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets Per Month
Detailed Product Description
Model NO.: Riselaser Type: Optical Fiber Laser Marking Machine
Marking Method: Scanning Marking Laser Power: 20W/30W/50W
Beam Quality: M2<1.5 Minimum Line Width: 0.02mm
Graphic Format Supported: Ai/BMP/JPG/Plt/Dxf Repeated Accuracy: +-0.01mm
Minimum Character: 0.15mm*0.1mm Marking Speed: <=7000m/s
Power Supply: 220V/50Hz 110V/60Hz Marking Area: 100mm*100mm/200mm*200mm/300*300mm
High Light:

fiber laser etching machine

,

laser marking equipment



20W/30W Fiber Copper Brass Aluminum Laser Marking Machine for Metal/Stainless Steel

Product Description:

Portable fiber laser marking machine is suitable for marking jewelry, watches, phone keypad, plastic translucent keys, electronic components, etc. The portable laser marking machine with high precision and speed is easily carried or moved, now the portable fiber laser marking machine for sale with affordable price.





Portable Fiber Laser Marking Machine Advantages:

  1. Portable: Integration design causes small volume. It can be easily installed with air cooling.
  2. Environmental friendly: No poison and no consumables.
  3. The portable Laser marking machine can mark all the graphics created by computer.
  4. Permanent marks and strong anti-fake function.
  5. Fast marking speed and high efficiency of process.
  6. Software operation is easy to learn.

Applications of Portable Laser marking Machine with Fiber laser source:



1.Applicable Materials:

Any metal materials (including precious metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramics, and other materials.



2.Applicable Industries:
Jewelry, watches, phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, auto parts, luggage buckles, cookware , stainless steel products and other industries.

Portable Fiber Laser Marking Machine Features:
  1. High stabilization: The portable fiber Laser marking machine is equipped with the original imported fiber laser from the Germany and Scanning system from the USA. Can work in the bad environment.
  2. High speed: Powerful functions of the software is compatible with the imported scanning system, the limit of the marking speed can reach 10000mm/s which is the 2-3 times fast than the traditional Laser marker normally.
  3. Convenience: The portable laser marking machine is adopts integrated and portable designed structure, easy to carry, small size and maintenance-free.
  4. Power saving:The power consumption of the whole machine is the 1/10 of the light pump laser marking machine, largely save the process cost.
  5. Long lifetime: The portable laser marking machine has no consumption, and the lifetime of the imported fiber laser can reach 100000 hours. The lifetime can reach 12 years in the condition of 24 hours work everyday.
  6. Perfect light beam: The focusing light beam of the portable fiber laser marking machine is less than 20um, especially apply to subtle and precise marking.
  7. Powerful function:Compatible with the files from CorelDraw, AutoCAD, Photoshop, etc.
  8. Supporting the file format of PLT, PCX, DXF, BMP etc. Supporting auto-coding, serial No., batch No., barcode, 2-D code and so on.





Mode

RL-20PS,  RL-30PS, RL-50PS

Maximum laser Power 20w,30w,50w
Laser wavelength

100mm*100mm

Marking linear width 0.01-0.1mm
Marking depth 0.01-5mm(Optianl)
Marking speed <-7000mm/s
Power required 110-220/50Hz/500Watts
Cooling system dimensions Air cooling
Laser source Max fiber laser
Galvo head sino-Galvo
F-theta lens Singapore wavelength
