Payment & Shipping Terms:
|Product Name:||Portable Fiber Laser Marking Machine||Laser Power:||20w,30w,50w|
|Working Area:||110*110mm||Min. Line:||0.01mm|
|Repeated Accuracy:||±0.001mm||Power Supply:||220v|
|Warranty:||1 Years||Package:||Wooden Case|
|Application Material:||Metal And Non-Metal||Condition:||New|
fiber laser etching machine,
laser marking equipment

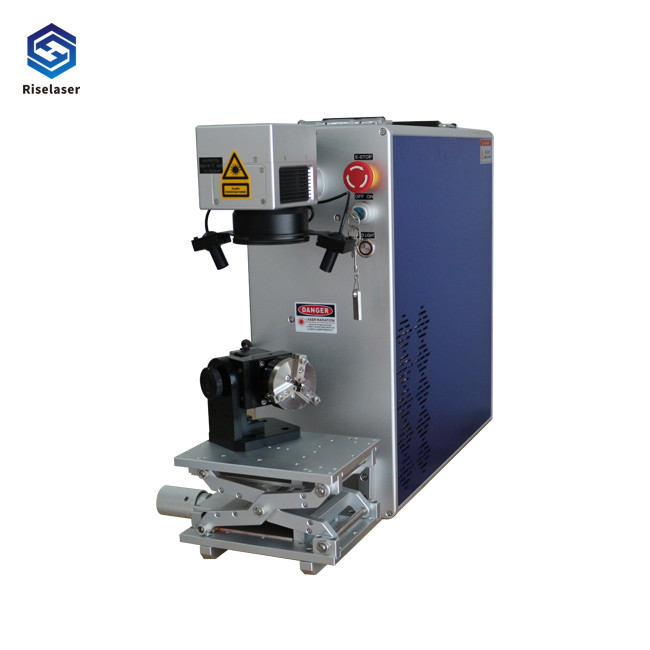

30W Portable Handheld Fiber Laser Marking Machine for Logo Marking on Brass Steel Metal
Handheld design, marking head separate with laser source enclosure.
Small size laser source enclosure, 45*21*38cm, could be housed easily.
150cm fiber cable allows marking head to be placed/ported to work piece freely.
Low weight, 45Kg gross weight, freight saving, especially good for door to door express or by air.
Configured with China top laser source, IPG laser could be configured as per request.
Instead of using an oscillating tool, a high-powered laser is used to mark on the work piece in laser marker solution, the laser beam modifies the material surface, creating visible, indestructible marks without removing material or impacting surface integrity.
RLP-30 series laser is designed to be a modular, simple plug and play handheld system for large quantities and short cycle times.
RLP-30 laser markers offer improved beam quality, increased depth of focus, compared to normal lasers, bringing a speed, simplicity and cost-effectiveness advantage in marking market
Imported Germany fiber laser offers high quality laser beam, long laser life time.
Robust hardware design improves reliability, higher MTBF expected.
High-speed scanning galvanometer guarantee high marking speed and high precision.
User-friendly controller and software make operation easier.
High electro-optical conversion efficiency, air cooling adopted for energy conservation and greener world, reduce power cost.
|Output Power:||10W 20W 30W 50W|
|Marking Window:||110mm * 110 mm (4.33" * 4.33")|
|Minimal Marking Character Size:||0.15mm|
|Maximal Marking Depth:||0.01~0.50mm, depends on marking material|
|Minimal Marking Width:||0.01mm|
|Maximal Marking Speed:||12,000mm/s|
|Expected Laser MTBF:||100,000 hours|
|Working Temperature:||0°C~40°C (32°F~104°F)|
Custom Logo Marking
Barcodes, UID codes marking
2D Matrix code marking
Direct Part Marking (DPM)
Time & Date Marking
ID and Serial Numbers Marking
Metal Annealing Marking
Plastic Frothing/Color Change Marking
Material Removal, Coat Layer Removal
|Material||Fiber Laer||Material||CO2 Laser|
|Carbon Fiber||√||Coated Metals||√|
|Cobalt Chorme Steel||√||Delrin||√|
|Glass Filled PPEK||√||Matte Board||√|
|Glass Filled Telfon||√||Melamine||√|
|Metal Plated Ceramics||√||Mylar||√|
|Polybutylene Terephthalate||√||Fiber Glass||√|
|Silicon Wafers||√||Anodized Aluminum||√|
RLP-30series fiber laser marking machine is suitable for metal laser marking: stainless steel, high-grade steel, steel, carbon steel, copper, iron, ferrous metals, magnesium, aluminum, brass, gold, silver, platinum, palladium, titanium in medical, mechanical, electronics, semiconductors, tool, metal, mold, watch, jewelry and mint Sector.
RLP-30 series fiber laser marking machine is widely used in automotive parts, hardware tool, food packaging, IC, PC components and accessories, watch, aerospace components, microelectronics, communications, industrial bearing, sanitary ware, home appliances, wire, cable, jewelry and other fields, e.g. graphics and text mark up.
Laser Marker Machine Details:
Credit based instalment payment acceptable according to Alibaba.
3rd party security payment ESCROW supported.
Visa, Mastercard payable.
Normally follow F group, C group rules as per Incoterms 2000.
Fiber laser marking machine one year warranty.
Lifecycle spare part supply.
Custom design fixtures.
Installation, training upon request.
