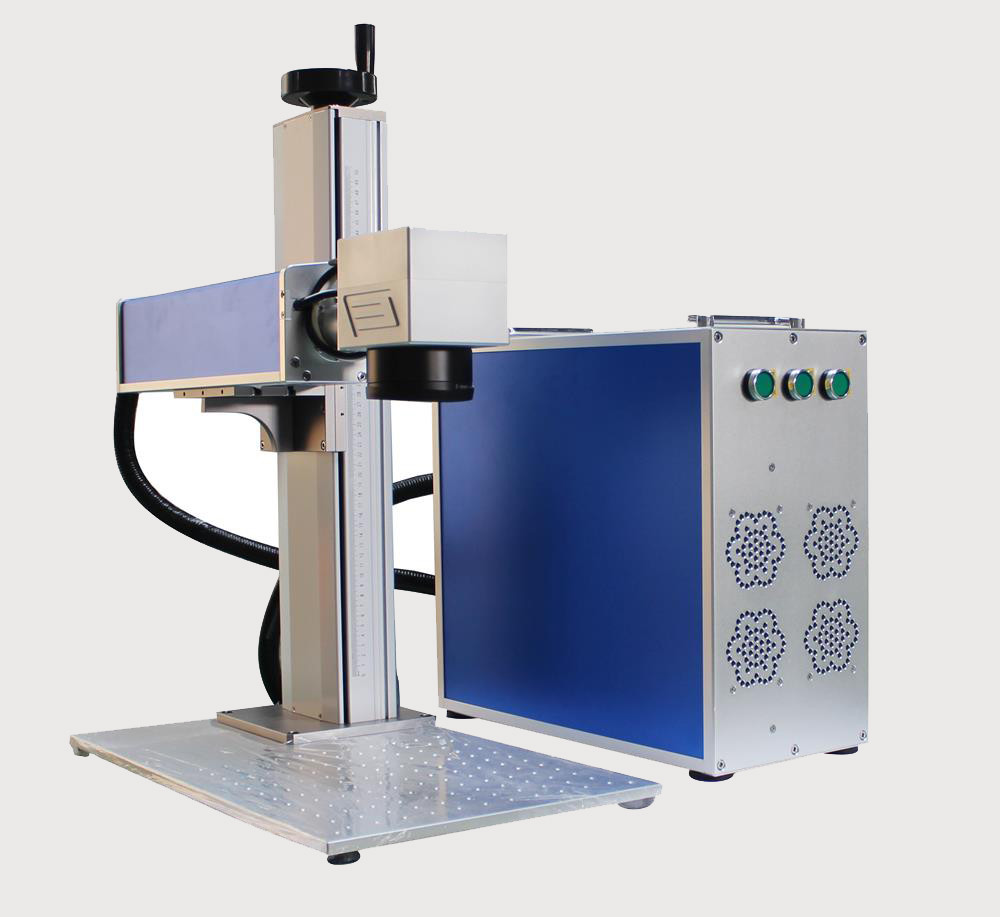

20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range

20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range
20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range

Large Image :  20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Rise laser
Certification: ISO9001:2008
Model Number: RLP-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 7 Work Days
Payment Terms: Western Union, MoneyGram
Supply Ability: 2000 units/ month
Detailed Product Description
Product Name: Portable Fiber Laser Marking Machine Laser Power: 20w,30w,50w
Working Area: 110*110mm Min. Line: 0.01mm
Repeated Accuracy: ±0.001mm Power Supply: 220v
Warranty: 2 Years Package: Wooden Case
Certification: CE, ISO, FDA Control Software: EZCAD
Cooling Mode: Air Cooling Control System: PC
High Light:

fiber laser etching machine

,

laser marking equipment



20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range



Main Features:
1. Laser power output is stable, and light spot quality is good.
2. Quick marking and cutting speed at 2-3 times that of conventional machines.
3. There is no restriction in operation systems. It is convenient in operation, with fully closed light paths, so it is stable, reliable and free in maintenance with ultra-long service life up to more than 100000 hours.
4. No pollution, no noise, and consumable materials, with power consumption at 5%-10% of consumption by traditional machines.
5. Ultra high accuracy and fineness, with there solution up to 2540dpi.



20W Portable​ Fiber Laser Marking Machine Performance Applications:

Can do marking for both on metal materials and some non-metallic materials, mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.

Electronic Component Resistance, capacitance, chips, printed circuit boards,
Computer keyboard.
Apparatus and Meter Panel Signs, Precision equipment, etc
Instrument Panel Sings, Nameplates, Medical Instruments
Hardware Tools Knives, tools, measuring tools, cutting tools, etc.,
Automobile Parts Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts Bearing, Gears, Standard Parts, Motors, etc
Daily Necessities Handcrafts, Zipper, Key Holder, Sanitary Wares, etc
Jewelry Jewelry, Rings, Gold & Silver Parts
Food Drinking Parking Plastic Packing, etc



20W Portable​ Fiber Laser Marking Machine Parameter:

NO Model RLP-20
1 Laser power Fiber 20W air cooling
2 Working area 110*110mm
3 Laser Wavelength 1064nm
4 Response time 0.5m/s
5 Frequency of pulse 20-100KHz
6 Max marking depth ≤0.4mm
7 Marking speed ≤7000mm/s
8 Marking lines 1-10 lines(in the marking area)
9 Minimum line width 0.1mm
10 Minimum character 0.15mm
11 Repeatability accuracy ±0.002mm
12 Resolution ratio 0.1mm
13 Marking content Text,pattern,date,bar code,etc
14 Operation system Microsoft Windows XP or Windows 2000
15 Control software JCZ
16 Graphic format supported bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
17 Unit power ≤1.2KW
18 Operation temperature 5℃-40℃
19 Relative moisture ≤ 90%,no fog

20

Supply Voltage 220V/50Hz/10A

20W Portable Fiber Laser Marking Machine with 110*110mm Marking Range 0

Advantages:
1) Small size and compact structure, convenient to move.
2) Long lifespan of fiber laser source: 100 000 hours
3) good scanning galvanometer, with good seal, small volume, compact.
4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
9) The fiber laser beam no need to adjust the laser optical path.
10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..



Application Materials:

laser marking machine can work with most metal marking applications, such as Gold, Silver,

Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many non-metal materials,

such as ABS, Nylon, PES, PVC, Makrolon.

Applicable Industries
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Electronic Components:

Resistors, Capacitors, Chips, Printed Circuit Boards,

Computer Keyboard, etc.
