Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine

China Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine supplier
Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine supplier Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine supplier Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine supplier

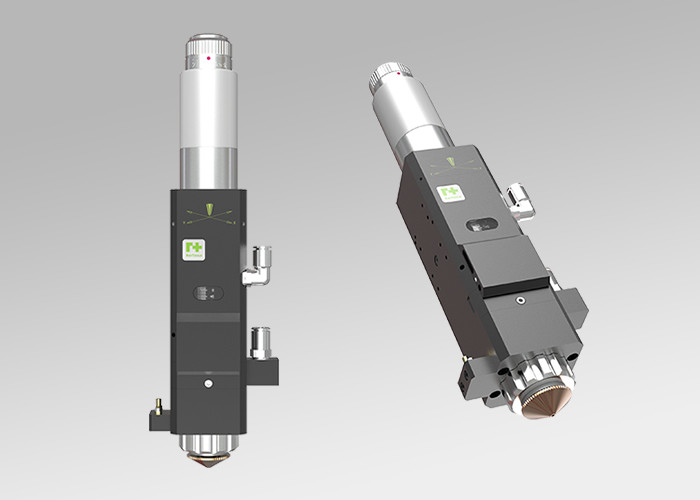

Large Image :  Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine

Product Details:

Place of Origin: SHANGHAI
Brand Name: Raytools
Certification: CE
Model Number: BT-230

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton
Contact Now
Detailed Product Description
Product Name: Cutting Head Model: BT-230
Appliaction: Fiber Laser Cutting Machine Weight: 1.5kg
Brand: Raytools

Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine



BT230CUT SERIES

The series of laser heads BT230 are released by Switzerland RAYTOOLS AG in 2014, which are suitable for small and medium power fiber lasers in industrial applications. The heads have diversification interface settings that allow with a variety of fiber lasers. The optimization of optical design and digital height sensor can make cutting more efficiently.

Magnetic breakaway crash protection can be selected. When a collision occurs, the cutting head and the machine or the robot can be separated reliably, the signal will be output in time and the power supply will be cut off automatically.

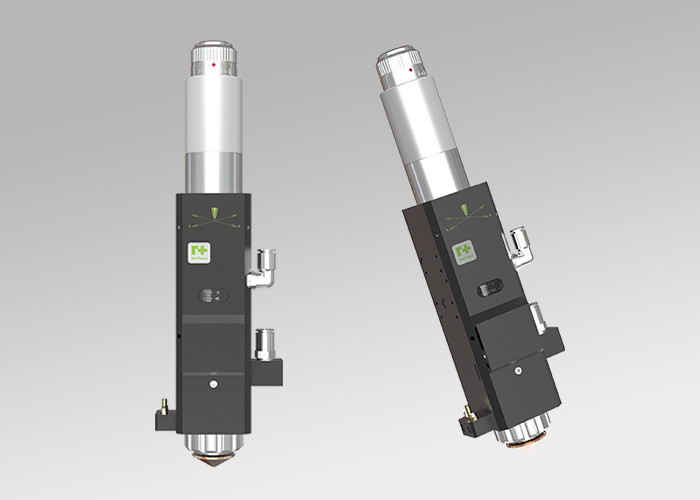

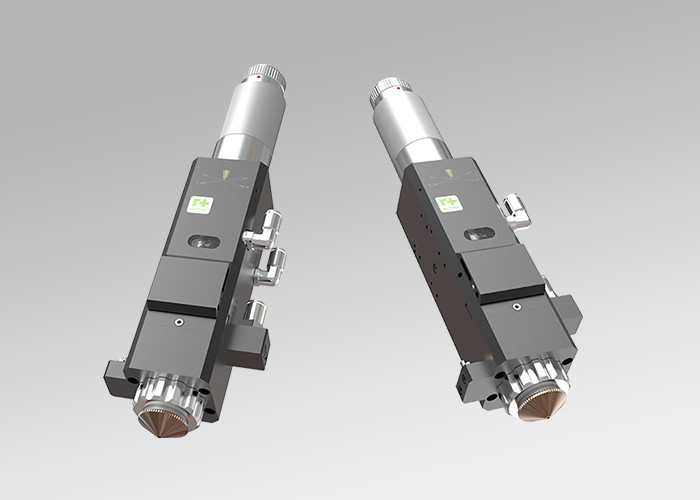

Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine



Features of laser cutting head:

• Optimized optical configuration and smooth and efficient

airflow design.

• Knob type of focus adjustment, meticulous and flexible,

Adjustable range is 15mm, accuracy is 0.05mm.

• Drawer-type of lens mount, quick and easy access to the

cover glass.

• Modular design, can be equipped with crash protection

devices.

• Optional elongated nozzle link for 3D cutting.

• Optional with 2D/3D magnetic breakaway crash protection.

• With a variety of optical interfaces, can be adapted with a variety of fiber lasers.



Technical Parameters:

Cutting Head

Power Rating

≤1KW

Clear Aperture

25mm

Protection Lens

φ27.9mm*4.1mm

Assist gas Pressure

≤20bar

Weight

~1.5kg

COLLIMATION LENS

Clear Aperture

25mm

HEIGHT SENSOR(EtherCAT or ±10V optional)

Standoff Distance Range(1mm Recommended)

0.3-10mm

Calibration

Auto Calibrating/Manual Calibrating

Response Time

<1ms

Temperature Stability

±5% of Standoff Setting,0℃ to 45℃

Power Requirement

24V

Output(Optimized Curve For Flat Metal or Liner Signal)

±10V Or 0~10V Analog

EtherCAT EDS-88C0(ECAT)

Reference to ECAT product manual



Industrial Raytools Cutting Head for 500w 800w 1000w Fiber Laser Cutting Machine
