Payment & Shipping Terms:
|Product Name:||Mini Fiber Laser Marking Machine||Laser Power:||20w, 30w, 50w|
|Working Area:||110*110mm (optional)||Min. Line:||0.01mm|
|Repeated Accuracy:||±0.001mm||Power Supply:||220v|
|Warranty:||1 Years||Package:||Wooden Case|
|Application Material:||Metal And Non-Metal||Condition:||New|
fiber laser etching machine,
fiber laser engraving machine

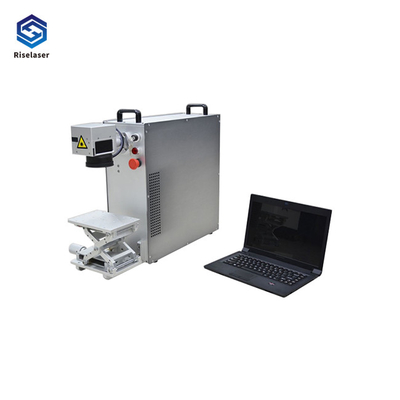

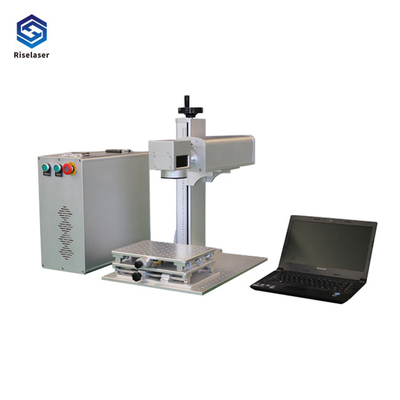

Metal Fiber Laser Marking Machine with Rotary
Laser marking machines use laser beams to mark various surfaces permanently. Marking effect is to reveal the deep substance through the evaporation of surface substance, or to “carve” the trace through the chemical and physical changes of surface substance caused by light energy, or to burn part of the substance through light energy, showing the required pattern, text and other information.
1. Perfect marking effect.
2. mini laser marking machine Fast marking Speed and High Efficiency.
3. Integrated structure,small and compact size,less occupied area,easy transportation.
4. Fast speed, high efficiency, stable output power, high reliability.
5. Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition.
6. High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour.
7. Small and compact size, easy to carry, save production space.
|Laser Type||Pulse or continuity|
|Cooling System||Built-in air cooling|
|Marking Line Speed||7000 mm/s or less|
|Marking Range||Standard plane 125mm*125mm can be customized 160mm*160mm, 300mm*300mm|
|Minimum Characters||The 0.15mm|
|Minimum Line Width||The 0.012mm|
Shenzhen MAX overall manufacturing, leading domestic laser manufacturers. Standard IPG transmission fiber. The laser has the advantages of good beam quality, high electro-optical conversion efficiency, low power consumption and no maintenance, and its service life is over 100,000 hours.
High Speed Scanning Galvanometer
SCANLAD scanning galvanometer, full digital signal, super anti-interference ability. High precision, short delay, fast speed, small temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.
The control software
ECARD control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text, bar code, two dimensional code processing.
Precision Z-axis Lifting Platform
One-dimensional linear module, manual control, positioning accuracy of 0.01mm.
Can be a variety of metal, non-metallic materials for processing. Especially for high hardness, high melting point, brittle material marking more obvious advantages.
Belongs to the non-contact processing, does not damage the product, no tool wear, marking good quality.
The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small.
High processing efficiency, the use of computer control, easy to achieve automation.
Q: Can I get some discount if I order more?
A: Yes,The more you order,the more you save.
Q:How to choose suitable model?
A:Please provide a photo of the product you used before or advise us your needs, we will give suggestion .
Q:Why choose your company?
A:We are a professional Industrial Solutions company in China. We’re more familiar with customer’s marking or engraving applications. So we’re in a position to recommend a more suitable model and provide free professional technology.
Q: Do you have the manual of machine?
A: Yes,we can provide manual,CD software and video to help you operate the machine expertly.
