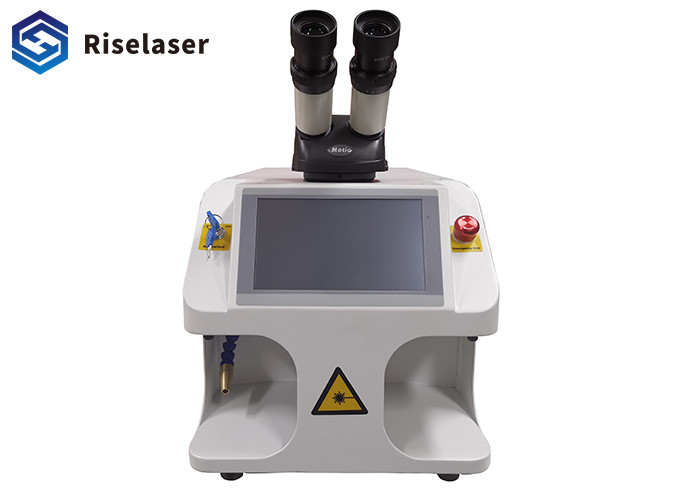

CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System

CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System
CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System

Large Image :  CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Riselaser
Certification: ISO, ce
Model Number: RL-Y60
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: PLYWOOD BOX
Supply Ability: 100 SET/WEEK
Detailed Product Description
Machine Model: Jewelry Laser Welding Machine Observation System: 10X Microscope Or HD CCD
Cooling System Dimensions: Water Cooling + Air Cooling Total Power: 2kw
Power Supply: 220V±10%/50Hz Peak Pulse Power: 7.5kw
High Light:

ISO Jewelry Laser Welding Machine

,

CE Jewelry Laser Welding Machine

,

ISO jewelry laser welder

CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System



Introduction of  Jewelry Laser Welding Machine

Spot welding is an important and basic aspect of laser welding technology. When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precious jewelry or welding of precision parts.



60w welding laser machine technical data:

Project content Mini Jewelry Laser Spot Welder
1 Model Jewelry Laser Welding Machine
2 Size(mm) L51CM×W29.5CM×H42CM
3 Net weight 28KG
4 Total power 2KW
5 Rated power 60W
6 Laser frequency 1.0~15.0HZ continuously adjustable
7 Pulse Width 0.1~10.0MS grade adjustable
8 Aiming and positioning Built-in camera system 7-inch screen and microscope
9 Light spot 0.15~2.0mm
10 Water injection Automatic pumping
11 cooling method Water cooling


Samples

CE ISO Jewelry Laser Welding Machine With Built In Water Air Cooling System 0



60w welding laser machine Video







Features of Jewelry Laser Welding Machine:
Energy, pulse width, frequency and spot size can be adjusted in a wide range to achieve different welding effects. The parameters are adjusted by the lever in the sealed cavity, which is simple and efficient.
The ceramic condenser cavity is imported from the UK. Corrosion and high temperature resistance, the service life is 8-10 years. The life of the xenon lamp exceeds 8 million times.
The most advanced shading system eliminates the laser's irritation to the eyes during work.
Able to work continuously for 24 hours; stable performance; maintenance-free for 10,000 hours.
