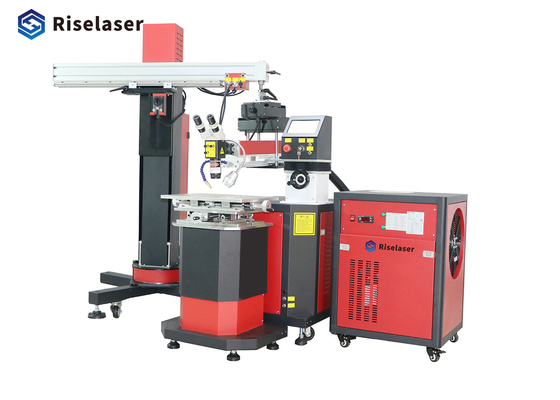

60Hz 380V stainless steel spot laser welding machine With Boom Lift

60Hz 380V stainless steel spot laser welding machine With Boom Lift
60Hz 380V stainless steel spot laser welding machine With Boom Lift

Large Image :  60Hz 380V stainless steel spot laser welding machine With Boom Lift

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Riselaser
Certification: ISO, CE
Model Number: RL-Y200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: PLYWOOD BOX
Delivery Time: 5-9 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 SET/WEEK
Detailed Product Description
Certification: ISO SGS Frequency: 50 Hz/60Hz
Key Selling Points: High-accuracy Voltage: 380V/220V
Pulse Width: 0.1-10Ms Control System Brand: Cypcut
Guiderail Brand: HIWIN Condenser Reflecto: Imported Ceramic Concentrator
High Light:

380V stainless steel spot laser welding machine

,

380V SS spot laser welding machine

,

60Hz hand held spot welder

60Hz 380V stainless steel spot laser welding machine With Boom Lift



Free you hands to welding automatic





Features of Mold Repaire Laser spot soldering Machine



60Hz 380V stainless steel spot laser welding machine With Boom Lift 0

Suitable for mobile phone communications, jewelry crafts, electronic components, clocks and watches, sensors and meters, precision machinery, hardware, gas auto parts and other metals and alloys;
This model is more suitable for laser welding of large molds, such as automobile molds, machine shell molds, tire molds, household appliances plastic shell molds and other large plastics
Glue and die-casting molds can be used for laser repair during mold wear; machining errors, EDM errors, mold reduction design changes, etc. require mold modification, which plays a key role and can make up for the huge losses caused by machining errors.







Technical Parameters of Mold Repaire Laser spot soldering Machine



Laser Power
200 - 400W
Laser Type
YAG Lasers
Wavelength
1064nm
Pulse Frequency
<50Hz
Max.Pulse energy
90J-150J
Max.Welding thickness
0.1-2.0mm
Gross Power
≤13KW
Voltage
220V±10%/50HZ/30A
Pulse Width
0.3-20ms
Repetition Precision
0.01mm
Frequency
1-100Hz
Cooling Mode
Water Cooling
Protective Gas
Single 1(Argon)
Spot Adjustable Range
0.2-2mm
Positioning
Red Indicator
Working Table
200mm*200mm*200mm-500mm*500mm*200mm(Optional)
Controller System
PLC or PC(CNC2000)
Warranty
1 Year
Positioning
Microscope
Lifting distance
Fixed/300mm
Laser axial rotation
Fixed/360°
Controller System
PLC or PC(CNC2000)







Scope of application of Mold Repaire Laser spot soldering Machine



Suitable for mobile phone communications, jewelry crafts, electronic components, clocks and watches, sensors and meters, precision machinery, hardware, gas auto parts and other metals and alloys;
This model is more suitable for laser welding of large molds, such as automobile molds, machine shell molds, tire molds, household appliances plastic shell molds and other large plastics
Glue and die-casting molds can be used for laser repair during mold wear; machining errors, EDM errors, mold reduction design changes, etc. require mold modification, which plays a key role and can make up for the huge losses caused by machining errors.



60Hz 380V stainless steel spot laser welding machine With Boom Lift 1



Q: I don't know anything about this machine, what type of machine should I choose?

A: We will help you choose the right machine and share the solution with you; you can share the following information with us

1. What material will you weld

2. Thickness of welding material

3. Is it joint welding or stitch welding

4. What is the exact purpose of the machine, for product welding or maintenance or other applications



Question: When I got this machine, but I didn't know how to use it. what do I do?

A: Our engineers will conduct online training. If needed, we will arrange our engineers to your factory for training, or you can send operator training to our factory.



Q: What is packaging and will it protect the product?

A: We have 3 layers of packaging. The exterior uses a non-fumigation wooden box. In the middle of the machine, the machine is covered with foam to prevent the machine from shaking. For the inner layer, the machine is covered with a waterproof plastic film.



Q: What is the delivery time?

A: According to your requirements, we will recommend suitable machines. According to the exact delivery time of your machine.



Q: How do I pay for my order?

Answer: We accept T/T, Western Union, Money Gram payment methods.



Q: Can you arrange the delivery for me?

A: We can arrange sea or air freight for our customers. Trading terms FOB, CIF, EXW are available.
