20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size

20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size
20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size 20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size

Large Image :  20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size

Product Details:
Place of Origin: Shenzhen
Brand Name: Rise laser
Certification: ISO9001:2008
Model Number: RLP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 7-15days
Supply Ability: 2000 units/ month
Detailed Product Description
Product Name: Portable Fiber Laser Marking Machine Laser Power: 20w,30w,50w
Working Area: 110*110mm Min. Line: 0.01mm
Repeated Accuracy: ±0.001mm Power Supply: 220v
Warranty: 1 Years Package: Wooden Case
High Light:

fiber laser etching machine

,

laser marking equipment

20w 30w Portable Fiber Laser Marking Machine for Metal and Plastic Marking

Products Description:

Fiber laser marking machine is the use of laser beam in a variety of different material surface marked with a permanent mark. Effect of marking is exposed deep substance through the surface material evaporation, showing the required the etching pattern, text, and other types of bar code graphics.

Benefits of Fiber Laser Marking Machine

1.Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.

2.Cost-effective: No maintenance during the 100,000 hours working life. One machine can be used in many different materials & industry. Minimal part replacement.

3.High efficiency: Computer operated, suitable for automatically processing(like production line, automatically filling line).

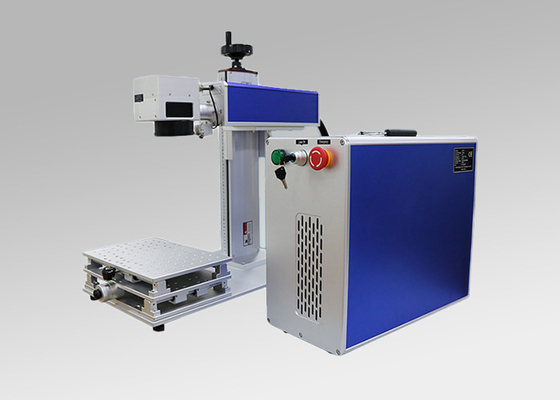

20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size 0

Main Features:

1. Adopt the advanced fiber laser system and speedy galvanometer scanning system,

it ensures excellent laser focus able beam and stable performance.

2. High Speed, Compared with the YAG laser marking, its marking speed can reach up to 8000mm/s.

3. Compared with YAG laser or diode laser, it has a much higher photoelectric conversion efficiency. The efficiency of optic-electrical converting is up to 30%.

4. Long-span working life: its working life is up to 100,000 hours.

5. Easy Operation: Special control software,compatible with a variety of software, strong function, easy for learning and operate.

6. We can see the power, speed, frequency parameters in the software, and design the working file in AutoCAD, CorelDRAW and Photoshop and so on.

7. No maintenance:without any consumptive part and no maintenance within lifetime.



Technical Parameters:

Model

RL-F20

Laser power

20w/30w/50w

Laser Wavelength

1065±10nm

Q-frequency

20KHz~100KHz

Divergence

0.3mard

Marking range

0~300mm*300mm

Minimum line width

0.01mm

Minimum character

0.1mm

Marking speed

10000mm/s

Marking depth

0 ~0.5mm

Engraving line speed

≤7000mm/s

Repeatability accuracy

±0.001mm

Beam quality

M2:1.2~1.8

Marking Format

Graphics, text, bar codes, two-dimensional code,

automatically marking the date, batch number, serial number,

frequency,etc.

Graphic format supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage

110/220V±10% 50/60Hz

Unit power

<0.5kw

Use of the environment

Clean and dust free or dust less

Working condition: Temperature

10°C-40°C

Working condition:Humidity

5 free of condensed water

Laser module life

>100000 hours

Net weight

58kg

Packing size

760*680*770mm



Application Industrial:

1. fiber laser marking machine output beam quality, high reliability, carving metal materials and some non-metal materials, mainly used in the smoothness, precision demanding areas, such as electronic products, hardware and sanitary ware, watches and clocks Jewelry, IC, plastic buttons and other surface text tagging. Bitmap marking is particularly superior.

2. used in the automotive, motorcycle parts, electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware, tools, accessories, precision instruments, glasses, watches and clocks, jewelry, plastic keys, Medical equipment and other industries.

3. currently, it is widely used in the fields of tobacco industry, biopharmaceutical industry, liquor industry, food and beverage, health products, electronics industry, national defense industry, auto parts, manufacturing card, process, apparel accessories, building materials and so on.

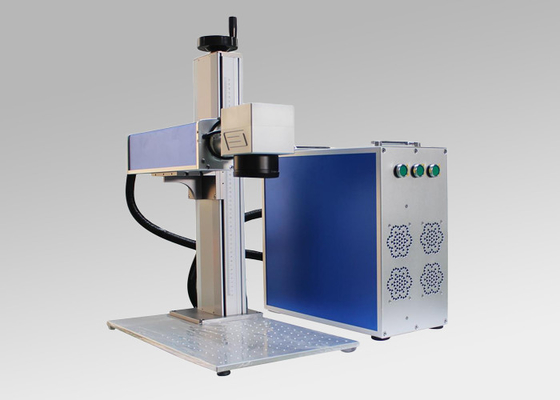

20w 30w Portable Fiber Laser Marking Machine For Metal / Plastic , 110*110mm Size 1
