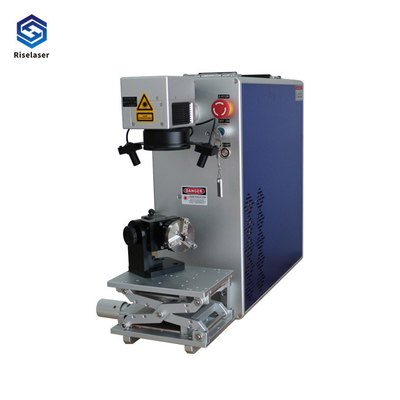

20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal

20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal
20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal

Large Image :  20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal

Product Details:
Place of Origin: Shenzhen
Brand Name: Riselaser
Certification: ISO9001:2008
Model Number: RL-20P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 7-15days
Payment Terms: T/T, D/A, Western Union
Supply Ability: 2000 units/ month
Detailed Product Description
Product Name: Portable Fiber Laser Marking Machine Laser Power: 20w,30w,50w
Working Area: 110*110mm Min. Line: 0.01mm
Repeated Accuracy: ±0.001mm Power Supply: 220v
Warranty: 1 Years Certificate: CE
High Light:

fiber laser etching machine

,

fiber laser engraving machine

Main Features:

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc. It's commonly used on gift industry, furniture industry, car industry and so on.

Our laser marking machine adopts the best quality fiber laser source in the world. We have 20W, 30W and 50W for optional. 100W and 200W are also available for deep engraving on hard metal for mould industry. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.



Technical Parameters:

Product Fiber Laser Marking Machine
Fiber Laser Brand Standard: MAX
Fiber Laser Lifetime 100,000 hours
Fiber Laser Power 20W, 30W, 50W, 100W, 200W
Beam Quality M2≤1.2
Max. Marking Speed 12000mm/s
Fiber Laser Wavelength 1064nm
Marking Area Standard: 110mm*110mm
Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm
High-speed Galvanometer Yes
Lens F-Theta Lens
Fiber Laser Repetition Frequency 20KHz-80KHz
Minimum character 0.05mm
Marking Depth ≤5mm
Repeated Accuracy ±0.001mm
Minimum Linewidth 0.01mm
Volt 110V, 220V, or according to your request
Cooling Mode Air Cooling
Graphic Format Supported PLT, DXF, DXP, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, etc
Software Supported CORELDRAW, AUTOCAD, PHOTOSHOP, etc
System Supported Windows, MAC OS
Operating Ambient Temperature 5°C-45°C
Marterial Supported Metal and Some Non-metal
Marking Software EZCAD
Desktop Computer Yes
Training Videos, User Manua Yes
Warranty 2 years
Fiber Test Results Yes
Certificates FDA, CE, ISO, CCC, PSE, IC, RoHS, EUT, FC
Control Interface Standard USB 2.0
Size (L*W*H) 650mm*210mm*500mm
Weight 35KG
Optional Laptop, Rotary Device



Accessories:

20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal 0

20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal 1

Materials Applications:

Metals and some nonmetal:Engraving data, factory number, production date, dial on Metals(Gold, silver, copper, alloy, aluminum, steel, stainless steel,name card)

Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watches and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc

20w 30w 50w Fiber Laser Marking Machine High Precision F Theta Lens For Metal 2

Applicable Material:

Material CO2 Laser machine Material fiber laser machine
Wood Aluminum
Acryic Stainless Steel
Fabric ABS
Glass Brass
Coated Metals Carbon Fiber
Ceramic Carbon Nanotube
Delrin Cobait Chorme Steel
Cloth Copper
Leather Colored Delrin
Marble Diallyl Phthalate
Matte Board Gless Filled PPEK
Melamine Gless Filled Telfon
Paper Magnesium
Mylar Metal Plated Ceramics
Press Board Molybdenum
Rubber Mild Steel
Wood veneer Nylon
Fiber Glass Polybutylene Terephthalate
Paintde Metals Polysulphone
Title PET
Plastic Santoprene
Cork Silicon Carbide
Corian Silicon Steel
Anodized Aluminum Silicon Wafers
