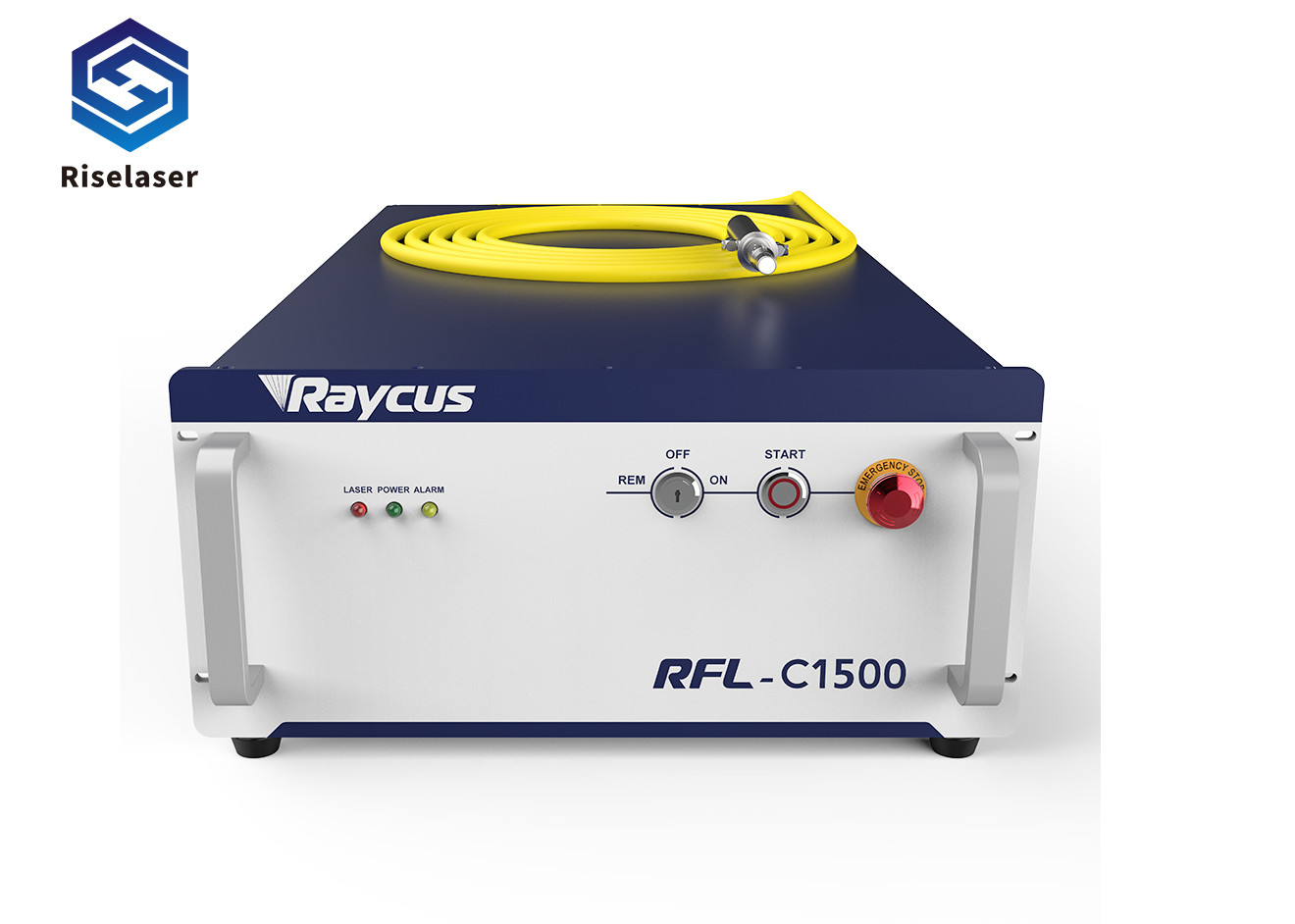

CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine

  • CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine
Place of Origin Shenzhen, China
Brand Name Raycus
Certification CE,ISO9001:2008
Model Number RFL-C1500
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Raycus Fiber Laser Generator 1500W Operation Mode CW/Modulated
Laser Power 1500W Output Power Adjustment Range（％） 10-100
Center Wavelength (nm) 1080±5 Power Consumption 5000W
M2 ＜1.3 Output Power Instability ±1.5%
Cooling Way Water Cooling Size（mm) 485×237×763/520×620×986(include.handles)
High Light

1500W Fiber Laser Generator

,

Raycus Fiber Laser Generator

,

CW Raycus Laser Generator
Leave a Message
Product Description

Raycus fiber laser generator 1500W Features



1. High electro-optical conversion efficiency
2. High response resistance
3. Efficient sheet cutting
4. The length of the output fiber can be customized
5. Maintenance-free operation
6. Wide modulation frequency range



Raycus fiber laser generator 1500W Parameters



Model 　 C1000 C1500 C2000 Test Conditions
Optical Characteristics 　
Nominal Output Power(W) 　 1000 1500 2000 　
Operation Mode CW/Modulated 　
Polarization State Random 　
Output Power Tunability(%) 10~100 　
Emission Wavelength(nm) 1080±5 Nominal Output Power
　 　 Nominal Output Power;
Output Power Instability ±1.5 Duration: 5hrs;
　 　 Ambient Temp.: 25℃
Modulation Frequency(Hz) 50~50,000 Nominal Output Power
Red Guide Laser Power(mW) 0.1~1 　
Optical Output Characteristics of QBH head 　
Beam Quality BPP <2.3 (mm×mrad) Nominal Output Power
Core Fiber(μm) 50(25, 100, 200 optional) 　
Delivery Cable Length(m) 20 　
Electrical Characteristics 　
Power Supply 380±10% V AC, 50/60Hz 　
Numerical Aperture (NA) 0.2 　
Max. Power Consumption(W) 　 4000 5000 6500 　
Control Mode RS-232/AD/Ethernet 　
Other Characteristics 　
Dimensions(W×H×D) 485×237×763/520×620×986(include.handles) 　



Raycus fiber laser generator 1500W Dimension

CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine 0



Raycus fiber laser generator 1500W more details

CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine 1CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine 2



Raycus fiber laser generator 1500W Application

CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine 3CW Modulated Raycus Fiber Laser Generator 1500W For Laser Cutting Machine 4



This product is suitable for many applications: cutting, welding, drilling, medical equipment processing, etc. The cutting board has slits and a bright cross section.
